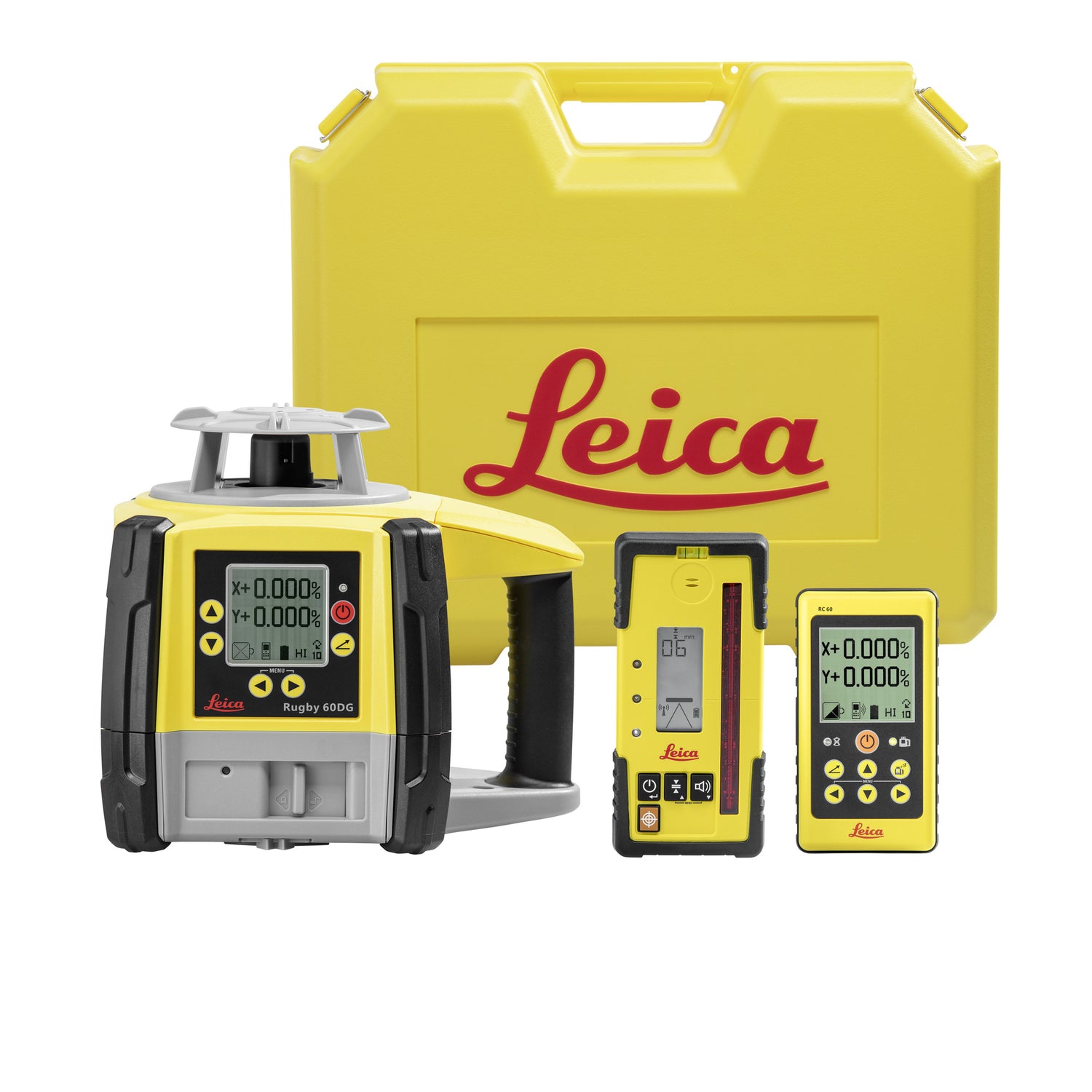

Leica Rugby 60DG Horizontal-Vertical, Full-Auto Dual Slope Laser Kits w/ RE105B Receiver & RC60 Remote

Available Options:

• 6020269: w/ RE105B Digital Receiver, RC60 Remote & Li-Ion Battery Pack and Charger
• 6020270: w/ RE105B Digital Receiver, RC60 Remote & Alkaline Tray

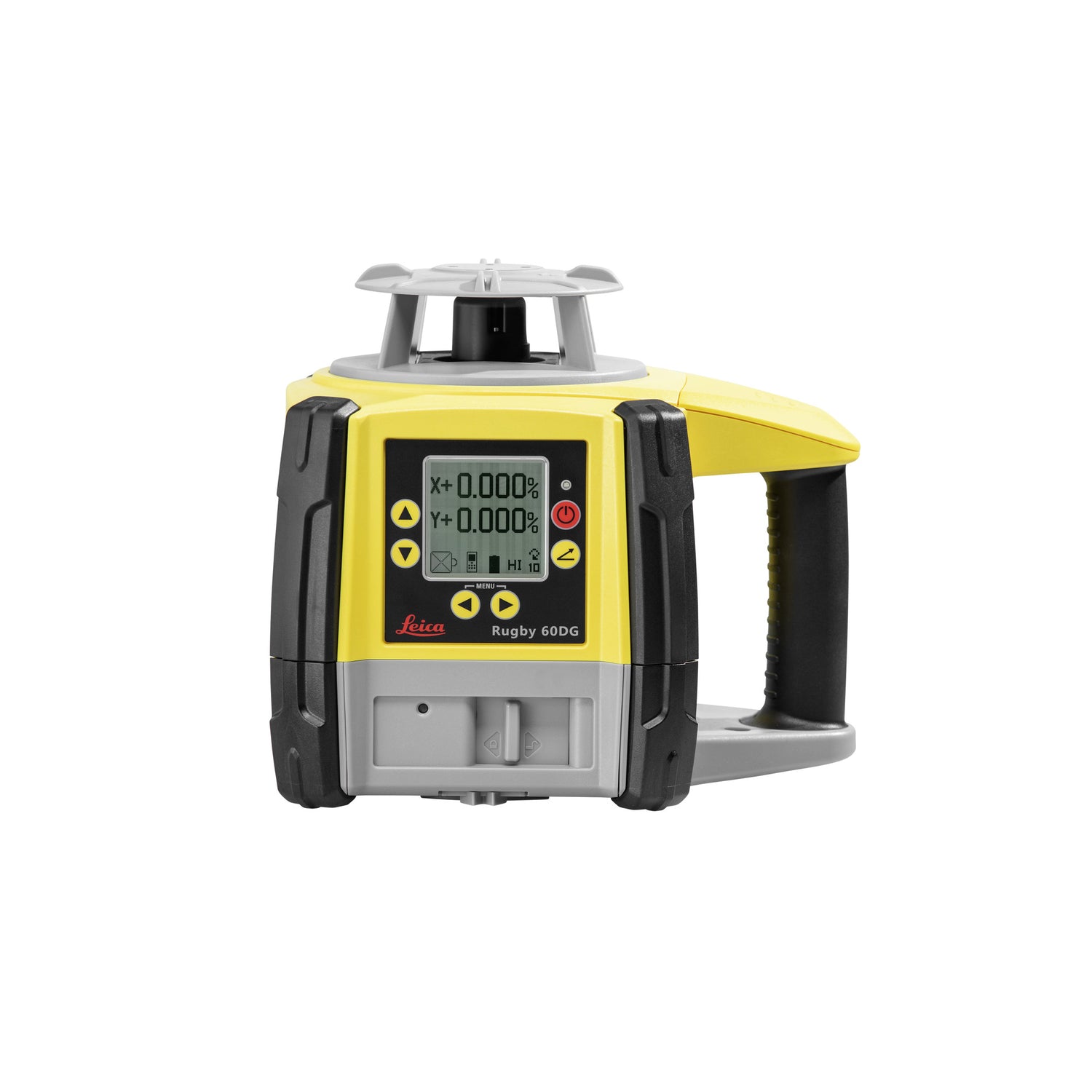

The Rugby 60DG is a fully-automatic grade laser in both axes, specifically designed for construction workers who need the dependability and accuracy of a fully professional grade laser on a daily basis. Digital grades can be entered up to 15 % and is, therefore, suitable for every construction site.

Perfect for outdoor applications, the Rugby 60DG allows you easily to correct and remove irregularities. It guarantees you repeatable and accurate results in long distances even in the toughest working conditions. The Rugby 60DG is the ideal partner for level, single or dual slope as well as batterboard applications.

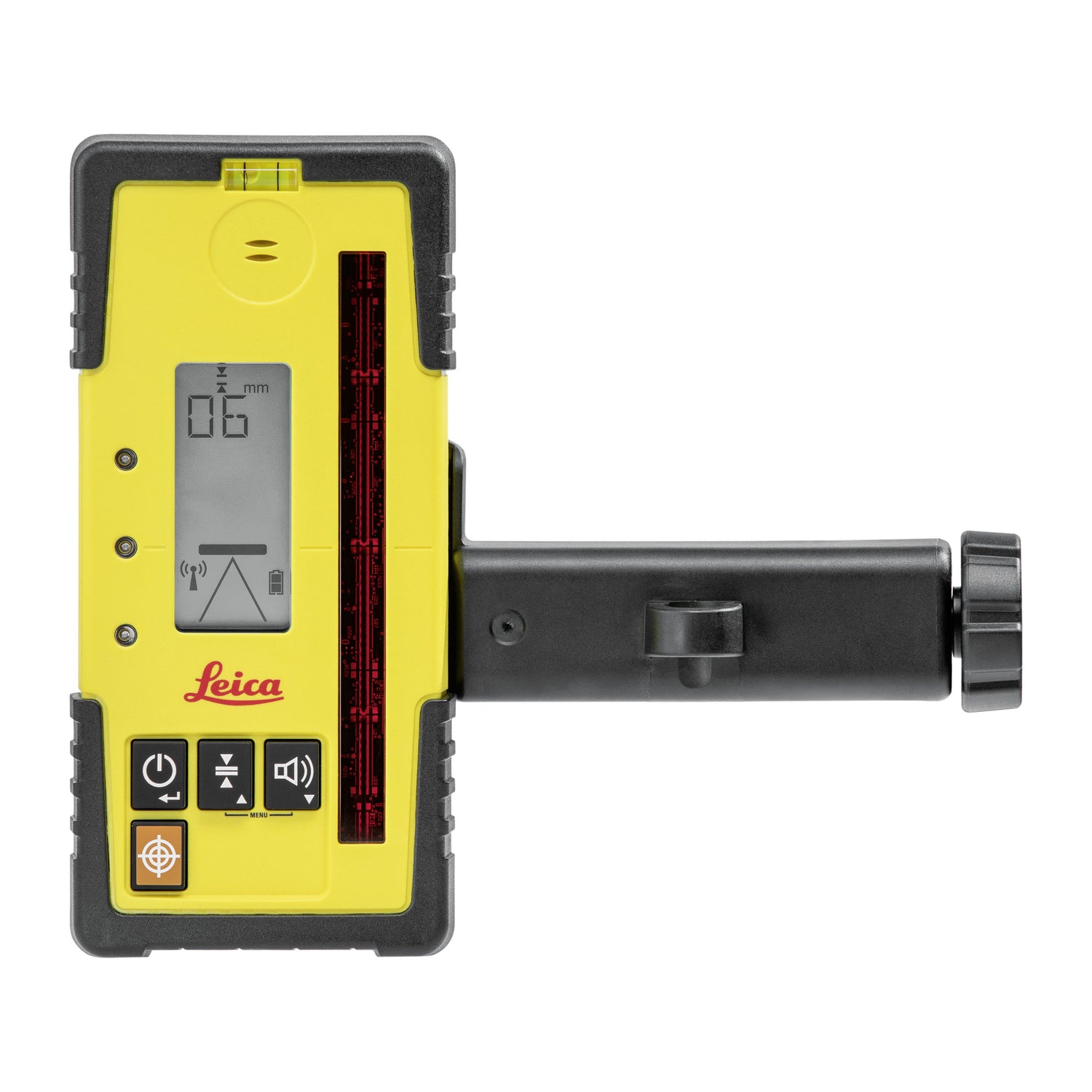

With the Rod Eye 105B laser receiver the beam can be caught and monitored automatically. Fullyautomatic grade is specifically designed for construction workers who need the dependability and accuracy of a fully professional grade laser. With a straightforward user interface on both the laser and the RC remote, the craftsman is always in full control.

Features:

• Horizontal & vertical operation — supports layout, alignment, and plumb applications
• Full‑auto dual slope — precise grade entry on both X and Y axes
• Automatic axis alignment — ensures consistent accuracy over long distances
• RC60 remote control — full slope and alignment control from a distance
• RE105B digital receiver — extended range + digital grade readout
• High accuracy — construction‑grade precision for demanding layout tasks
• Long operating range — suitable for large construction sites
• Rugged construction — built for harsh job‑site environments

Specifications:

• Leica Rugby 60DG
  • Operating range (diameter): 900 m / 3,000 ft
  • Accuracy: ± 1.5 mm at 30 m (± 1/16“ at 100 ft)
  • Self-leveling range: ± 5°
  • Grade range: 15 %
  • Rotation speed: 300, 600, 900 rpm
  • Laser diode type / class: 635 nm (visible) / Class 1
  • Batteries type: 4 D-cell alkaline / Li-Ion
  • Battery life:60 h (alkaline) / > 40 h (Li-Ion)
  • Operating temperature: -20°C to 50°C (-4°F to 122°F)
  • Storage temperature: -30°C to 70°C (-22°F to 158°F)
  • Protection: IP67

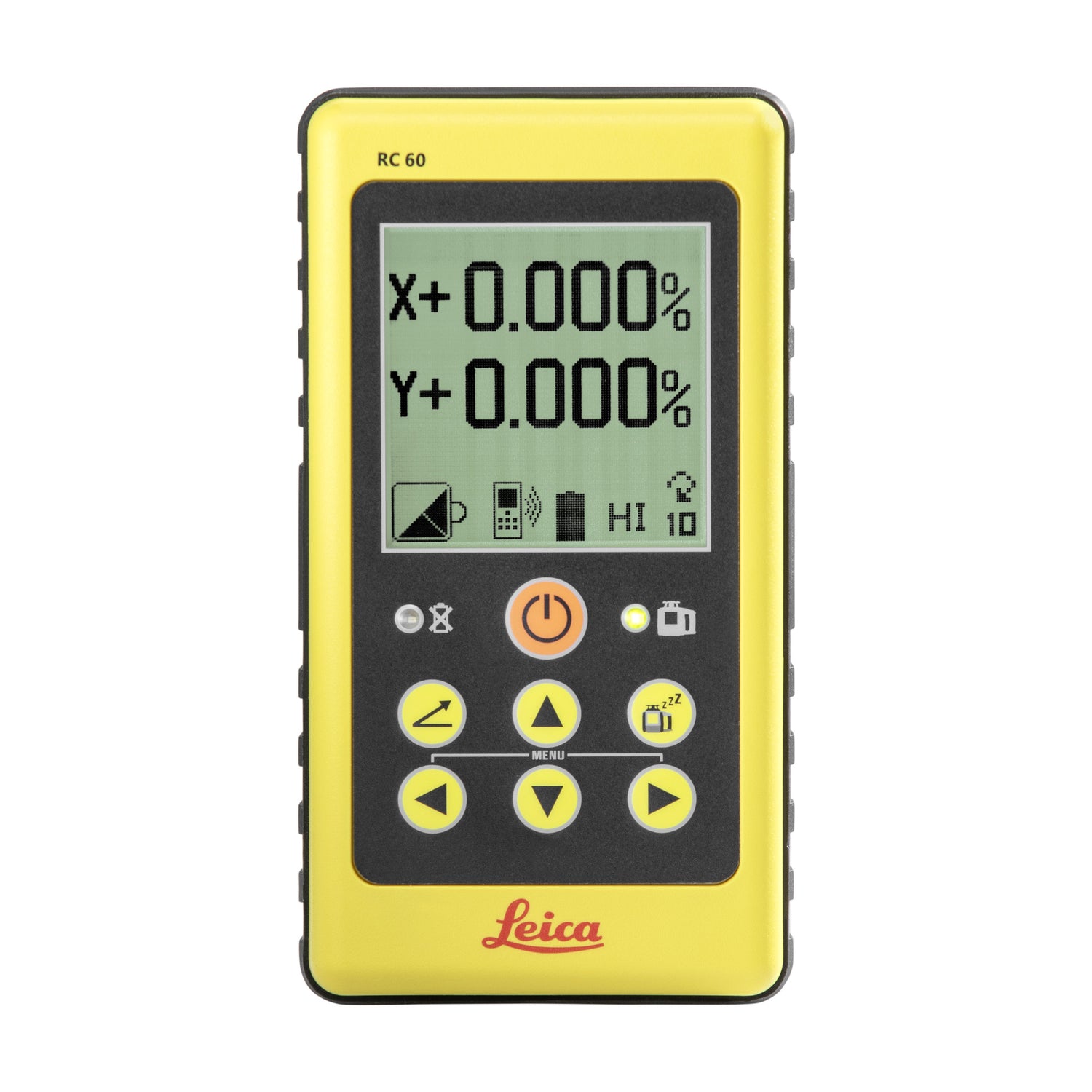

• RC60
  • Compatible laser: Rugby 60DG
  • Operating range (radius): 300 m / 1,000 ft
  • Batteries type: Two AA cells
  • Battery life (typical usage): 70 hours (2x1.5V AA)

• Rod Eye 105B
  • Operating range (diameter): 900 m (3,000 ft)
  • Extended detection window: 105 mm / 4 in
  • Numeric readout height: 90 mm / 3.5 in
  • Beam catching: ✔
  • Beam lock: ✔

Info and Guides:

Click Here for Data Sheet
