LMX200™ Ground Penetrating Radar (GPR) Utility Locator

Pricing: Call for Pricing

FREE On-Site LMX200™ Demonstrations

Titan Tools Direct offers FREE on-site LMX200™ Ground Penetrating Radar demonstrations for qualified customers located in:

Virginia, West Virginia, Maryland, Delaware, New Jersey, Pennsylvania, Rhode Island, New York, Connecticut, Massachusetts, Vermont, New Hampshire, and Maine.

Experience the LMX200 in real-world conditions and discover how advanced Ground Penetrating Radar (GPR) technology can improve underground utility locating, mapping, and excavation planning.

Request Pricing

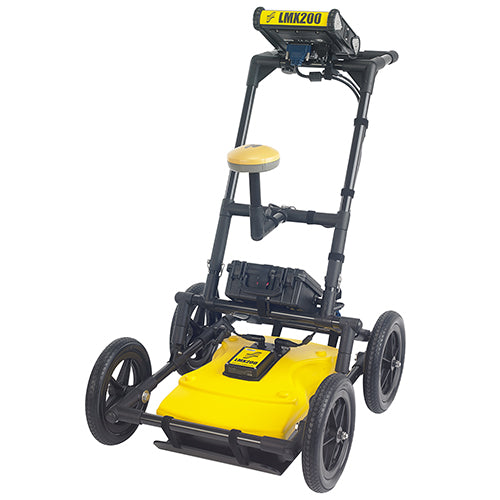

The LMX200™ Ground Penetrating Radar is a professional GPR utility locating system designed to accurately detect both metallic and non-metallic underground utilities while providing advanced mapping capabilities for engineering, utility locating, municipalities, and construction professionals.

For current pricing, demonstrations, availability, or system recommendations:

Call or Text: 832-727-9353

Email: Sales@TitanToolsDirect.com

Product Overview

The LMX200™ Ground Penetrating Radar (GPR) is a powerful underground utility locating and mapping system that uses high-frequency radio waves to visualize buried infrastructure beneath the surface. Designed for utility locating professionals, municipalities, engineering firms, and contractors, the LMX200 provides real-time subsurface imaging to help reduce excavation risks and improve project planning.

Unlike traditional electromagnetic (EM) locators, which primarily detect conductive utilities or tracer wires, the LMX200 can identify metallic and non-metallic utilities, making it especially valuable for locating PVC pipe, HDPE pipe, asbestos cement pipe, underground storage tanks, drainage systems, septic components, and other buried structures.

Building upon the capabilities of the LMX100™, the LMX200 introduces Grid Scan, Map View, SplitView, external GPS compatibility, and advanced data export for post-processing and GIS integration. These enhanced capabilities make the LMX200 an excellent solution for organizations that require not only locating, but also documenting and mapping underground infrastructure.

What Can the LMX200 Detect?

The LMX200 is capable of detecting a wide variety of buried infrastructure, including:

• Metallic utilities
• Non-metallic utilities
• PVC water lines
• HDPE pipe
• Asbestos cement pipe
• Underground electrical cable
• Utilities with failed tracer wires
• Underground storage tanks
• Drainage tile
• Septic system components
• Utility vaults
• Foundation walls
• Concrete pads
• Buried manholes
• Splice pits
• Unknown underground objects

Detection performance depends on soil composition, moisture, target depth, target size, and site conditions.

Compare Utility Locating Technologies

LMX100™ vs. LMX200™

The LMX200 expands on the capabilities of the LMX100 by adding advanced mapping, GPS integration, and data management features for more demanding utility locating applications.

Which LMX System Should You Choose?

Choose the LMX100™ if:

• Your primary objective is locating underground utilities.
• You need a straightforward GPR system for daily locating.
• Advanced mapping and GIS integration are not required.
• You want an easy-to-use entry-level professional GPR solution.

Choose the LMX200™ if:

• You require advanced utility mapping capabilities.
• You perform Subsurface Utility Engineering (SUE).
• You need Grid Scan for comprehensive area investigations.
• GPS integration is important for accurate georeferencing.
• You require GIS compatibility and advanced documentation.
• Your organization archives or post-processes utility data.

Ideal Applications

The LMX200 is ideal for:

• Underground Utility Locating
• Utility Mapping
• Utility Damage Prevention
• Subsurface Utility Engineering (SUE)
• Municipal Infrastructure
• Civil Engineering
• Highway Construction
• Airport Construction
• Environmental Investigation
• Utility Asset Management
• Excavation Planning
• Site Investigation
• Commercial Development
• Public Works
• Water & Sewer Infrastructure

Key Features

Detect Metallic and Non-Metallic Utilities

Locate both conductive and non-conductive underground infrastructure that traditional EM locators may not identify.

Advanced Grid Scan

Perform comprehensive multi-directional surveys for improved underground visualization and target confidence.

Map View & SplitView

Visualize underground utilities from multiple perspectives to improve target interpretation and mapping accuracy.

GPS Ready

Supports optional external GPS receivers for accurate georeferencing and GIS workflows.

High-Visibility Touchscreen Display

Large color touchscreen provides excellent visibility outdoors while remaining easy to operate with work gloves.

Built-In Wi-Fi

Instantly share field reports and screen captures directly from the jobsite.

USB Data Transfer

Export collected survey data for documentation, post-processing, project archiving, and future reference.

250 MHz Ultra-Wideband GPR Antenna

Patented antenna technology provides an excellent balance between target resolution and penetration depth.

DynaT Dynamic Target Enhancement

Automatically enhances target visibility to improve interpretation of underground features.

Rugged Portable Cart

Lightweight folding fiberglass cart is designed for easy transportation and reliable field performance.

Technical Specifications

Ground Conditions and Detection Performance

Ground Penetrating Radar performance varies depending on environmental conditions and underground target characteristics.

Factors affecting performance include:

• Soil composition
• Clay content
• Moisture levels
• Soil conductivity
• Target material
• Target depth
• Target size
• Target orientation
• Surface conditions
• Nearby underground infrastructure

For best results, GPR surveys should be combined with existing utility records, electromagnetic locating equipment, and proper field verification techniques.

What's Included

Typical LMX200 packages include:

• LMX200™ Ground Penetrating Radar
• 250 MHz GPR Antenna
• Touchscreen Display Unit
• Folding Fiberglass Cart
• Rechargeable Battery
• Battery Charger
• USB Cable
• Required System Cables
• Manufacturer Documentation

Package contents may vary depending on configuration. Contact Titan Tools Direct for current package details.

Why Choose the LMX200?

The LMX200 is designed for organizations that require more than utility detection. It combines advanced GPR imaging with mapping, documentation, GPS integration, and post-processing capabilities to create a complete underground utility investigation platform.

For utility locating professionals, municipalities, engineering firms, and contractors, the LMX200 delivers:

• Advanced utility mapping
• Excellent target confidence
• Metallic and non-metallic utility detection
• GPS-enabled documentation
• GIS compatibility
• Rugged field performance
• Professional reporting capabilities

Frequently Asked Questions

What is the LMX200 used for?

The LMX200 is used to locate and map underground utilities, storage tanks, septic systems, concrete structures, and other buried infrastructure using Ground Penetrating Radar.

Can the LMX200 locate PVC pipe?

Yes. The LMX200 can detect many non-metallic utilities, including PVC and HDPE pipe, depending on soil and installation conditions.

Does the LMX200 replace an electromagnetic locator?

No. Ground Penetrating Radar complements traditional EM locating by identifying underground features that EM equipment may not detect.

What is Grid Scan?

Grid Scan collects survey data in multiple directions, creating a more complete underground picture for improved target interpretation.

What is SplitView?

SplitView allows users to analyze underground targets from multiple scan directions, increasing confidence when interpreting complex subsurface conditions.

Does the LMX200 support GPS?

Yes. The system supports optional external GPS receivers for accurate georeferencing and GIS workflows.

Can survey data be exported?

Yes. Data can be exported for post-processing, project documentation, archiving, and integration with GIS software.

Who should purchase the LMX200 instead of the LMX100?

Organizations requiring advanced utility mapping, GPS integration, Grid Scan, GIS compatibility, and post-processing capabilities will benefit from the LMX200.

Is training available?

Yes. Titan Tools Direct offers FREE on-site demonstrations in select states and can discuss available training options.

Why is this a Call for Pricing product?

The LMX200 is typically configured based on customer requirements, accessories, training, and support. Contact Titan Tools Direct for a customized quotation.

Why Buy From Titan Tools Direct?

• Authorized Dealer
• Competitive Pricing
• Call for Best Pricing
• FREE On-Site Demonstrations (Select States)
• Expert Sales & Technical Support
• Product Training & Consultation
• Fast Nationwide Shipping
• Trusted by Contractors, Engineers, Municipalities & Utility Locating Professionals
• Customer Support Before & After the Sale

Schedule Your FREE On-Site Demonstration

Qualified customers located in:

• Virginia
• West Virginia
• Maryland
• Delaware
• New Jersey
• Pennsylvania
• Rhode Island
• New York
• Connecticut
• Massachusetts
• Vermont
• New Hampshire
• Maine

are eligible for a FREE on-site LMX200 demonstration.

Contact Titan Tools Direct to schedule your personalized demonstration.

Questions or Request a Quote?

Interested in the LMX200 Ground Penetrating Radar or would like to schedule a FREE demonstration?

Call or Text: 832-727-9353

Email: Sales@TitanToolsDirect.com

Our GPR specialists can help determine the best underground utility locating solution for your application and provide a customized quotation.
