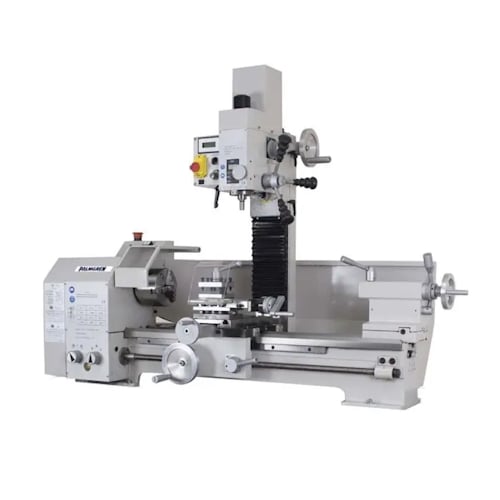

Palmgren 11" x 27" Bench Combination Engine Lathe & Variable Speed Mill

Model Number: 9684520
*Shown with optional stand. To purchase the stand in the photo, please see the option on your right.*

Features:
  • The Palmgren Bench Combination Engine Lathe & Variable Speed Mill is the ultimate machine for those who demand precision, power, and versatility in their machining operations. Designed to handle a wide range of turning, milling, and drilling operations, this machine is perfect for those who need the capabilities of much larger machines in a smaller package. With heavy cast iron construction, precision thrust and ball bearings in the headstock and spindles, and hardened and ground ways, this machine is built to last and deliver precise results every time. It is designed to meet the DIN 8606 toolmakers precision lathe standard, assuring accuracy and consistent performance. The lathe features a 3-jaw chuck, 4-way tool post, chip tray, and splash guard, making it easy to operate and maintain. The tailstock with adjustable precision scale of 0.02 mm / 0.001 in and safety lathe chuck ensure that you can work with confidence. The all-gear drive transmission on the mill delivers full power at any speed, driving cutting tools at nearly 100% of available horsepower and torque. This means that you can tackle even the toughest materials with ease, making this machine a valuable asset in any workshop. The electronic variable speed and 2 MT machine tools spindle with guaranteed concentricity of 0.0005 in at the spindle nose make the mill easy to use and highly accurate. The box column with hardened, ground and hand-scraped ways ensures consistent performance even under heavy loads. With its wide range of versatility and features, this all-purpose combination lathe/mill is one of the most functional manual machine centers available today. It is perfect for all types and sizes of shops, from professional machinists to DIY enthusiasts.
  • Dual P5 tapper roller bearings on spindle
  • Prismatic bed of solid aged cast iron - hardened to HRO 45 - 52 for long life
  • Feed lead screw is supported and runs on two bearings
  • Feed gear box is constructed of helical steel gears running in an oil bath
  • Fast easy feed speed and direction changes with front-mounted selector handles
  • Precision machined slide with adjustable hand wheels with 0.002 " / 0.001 " scales
  • Tailstock with adjustable precision scale of 0.02 mm / 0.0008 "
  • 3 Jaw lathe chuck
  • 4 Way tool post
  • Safety lathe chuck and tool post guards
  • Centers
  • Chip tray and splash guard
  • Electronic variable speed ( MILL)
  • All steel gear drive train (MILL)
  • Built-in work light (MILL)
  • Box column with hardened, ground and hand scraped ways (MILL)
  • 2 MT machine tools spindle with draw bar (MILL)
  • Precision machine tool spindle with guaranteed concentricity of .0005 " at the spindle nose (MILL)
Specifications:
  • Lathe Specifications:
    • Motor: 1 HP / 115V / 60HZ / 1PH
    • Height of Centers: 140 mm / 5.51 in
    • Max Turning Diameter: 280 mm / 11.02 in
    • Distance Between Centers: 700 mm / 27.56 in
  • Spindle:
    • Spindle Speed: 150 - 2000 RPM
    • Number of Steps: 6
    • Spindle Taper: MT4
    • Spindle Hole: 26 mm / 1.02 in
    • Chuck Size: 127 mm / 5 in
  • Slide:
    • Bed Width: 180 mm / 7.09 in
    • Travel Top Slide: 61.65 mm / 2.43 in
    • Compound Slide Travel: 142.16 mm / 5.60 in
    • Distance Between Center and Compound Table: 88.55 mm / 3.49 in
  • Tailstock:
    • Tailstock Taper: MT2
    • Tailstock Sleeve Travel: 105 mm / 4.13 in
    • Longitudinal Feed: 0.07 - 0.1 - 0.2 mm / 0.002" - 0.004" - 0.008"
    • Pitch: 0.2 - 4 mm / 8 - 56 in
  • Weight & Dimensions:
    • Height: 630 mm / 24.80 in
    • Length: 1390 mm / 4.72 in
    • Depth: 700 mm / 27.56 in
    • 4 Position tool Post Height: 12.7 mm / 0.5 in
    • Weight: 200 kg / 440.93 lb
  • Mill Specifications:
    • Motor: 1 HP / 115V / 60HZ / 1PH
    • Drilling Capacity: 16 mm / 0.63 in
    • Milling Capacity of end-mill cutter: 20 mm / 0.79 in
    • Milling Capacity of Inserted Tooth Cutter: 63 mm / 2.48 in
    • Working Radius: 185 mm / 7.28 in
  • Spindle:
    • Spindle Holding Fixture: MT2/M10
    • Spindle Travel: 50 mm / 1.97 in
  • Drill - Mill Head:
    • Swivelling: + / - 90°
    • Gear Stages: 2
    • Low Range: 100 to 1500 RPM
    • High Range: 200 to 3000 RPM
    • Z-Axis Travel: 370 mm / 14.57 in
  • Cross Table:
    • Table Length: 500 mm / 19.69 in
    • Table Width: 180 mm / 7.09 in
    • Y-Axis Travel: 175 mm / 6.89 in
    • X-Axis Travel: 280 mm / 11.02 in
    • T-Slot Size/Distance/Qty: 12mm / 63 mm / 3 0.47 in / 2.48 in / 3
  • Weight & Dimensions:
    • Height: 860 mm / 33.85 in
    • Length: 670 mm / 26.38 in
    • Width: 550 mm / 21.65 in
    • Weight: 103 kg / 227.08 lb
