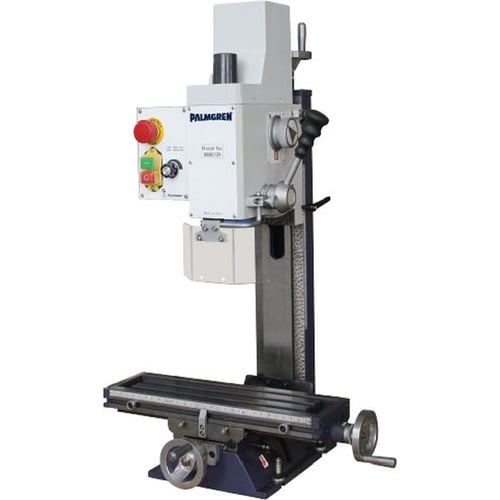

Palmgren 13" Gear Head Milling Machine, Variable Speed, 5/8HP, 115V, 1PH

Model Number: 9680159

Features:
  • The Palmgren Variable Speed Gear Head Milling Machine has an all-gear drive transmission and is a powerful and versatile milling machine that can handle a wide range of workpiece metalworking applications. This machine delivers full power at any speed, driving cutting tools at nearly 100% of the available horsepower. Its high-performance brushless DC motor with permanent current control and infinitely variable speed provides the broadest range of spindle speeds to fit any application.
Specifications:
  • Swing: 13-1/2"
  • Drilling Capacity Steel: 5/8"
  • End Milling Capacity: 13/16"
  • Face Milling Capacity: 2-1/2"
  • Motor: 5/8HP - 115V - 1PH -10Amp -60Hz
  • Table Work Surface: 15-3/4" x 4-3/4"
  • Longitudinal Travel: 8-21/32"
  • Cross Travel: 6-3/8"
  • Speed Range: 100 to 3000
  • Spindle: 2MT with 3/8"-16 Draw Bar
  • Spindle Taper: 2MT
  • Spindle Travel: 2"
  • Spindle to Table: 8-1/4"
  • Head: Gear Driven
  • T-Slots: 3/8"
  • Operation: Manual
  • Features:
    • - Two Stage Gearing Motor
    • - Swing Away Safety Shield with Micro Switch
  • Dimensions (L x W x H): 19" x 18" x 33"
