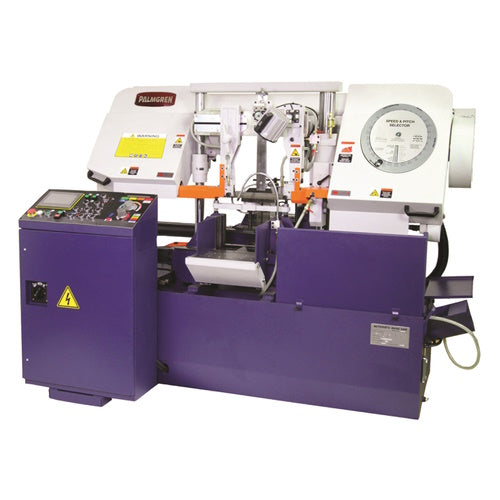

Palmgren 14" Dual Column Automatic Band Saw

Model Number: 9684488

Features:
  • The Palmgren Dual Column Automatic Band Saw is built for extreme production needs, this band saw is designed for cutting a wide range of metals with extremely tight tolerances in cutting repeatability and accuracy even at high cutting rates. Featuring a dual post design, this band saw provides more rigidity and reduces vibration for higher cutting rates and superior surface finish with increased blade life. The hydraulic shuttle vise feed-system with split vises clamps the workpiece securely on both sides of the blade, and variable clamping pressure and touch screen multiple-job programming make it easy to produce accurate cuts all day long.
  • Heavy duty cast iron and steel construction provides superior stiffness and vibration dampening
  • Advanced powertrain utilizes a precision gearbox with bronze worm gear and hardened and ground worm shaft, taper roller bearings operating in an oil bath delivering smooth, quiet positive SFPM to the blade
  • Cast iron idler and drive wheels
  • Fully automatic on demand hydraulic controls for the saw head, shuttle vise and split-jaw clamping vise
  • Three point clamping vise
  • Shuttle vise has a two-sided hydraulic system that allows it to clamp and feed irregular pieces without binding
  • Adjustable clamping pressure
  • Approach sensor reduces operation cycle time by allowing the saw head to approach the workpiece rapidly then slow to the chosen cutting rate just before the blade touches the workpiece
  • Hydraulic blade tension control provides for faster blade changes and ensures proper blade tension
  • Automatic shut off safety system that senses a broken or loose blade stopping the machine
  • Roller table with vertical & horizontal rollers that facilitates the holding and support of longer material allowing it to glide smoothly during the workpiece feeding process
  • Latest technology electronic variable speed inverter control provides a broad range of blade speeds designed to fit any sawing application
  • Control panel with monochrome touch screen is easy to program and operate and is conveniently located for easy accessibility and operator safety
  • Auto shut off at end of material or after preset number of cuts
  • Safety electrical panel with main disconnect, overload protection and low voltage at the switches
  • Flood coolant system with the coolant fed through the blade guides to maximize cooling and cleaning of chips from the blade
  • Blade brush to aid in the removal of chips from the blade
  • Adjustable ball bearing and tungsten carbide blade guides provide maximum support of the blade and ensure square accurate cuts
  • Chip conveyor automatically starts during the cutting cycle to efficiently remove and separate the chips from the coolant for convenient clean up and maintenance
  • Halogen work light
Specifications:
  • Voltage: 230V
  • Phase: 3 PH
  • Cutting Capacity Rectangle: 14 x 16 in
  • Cutting Capacity Round: 14 in
  • Blade Length: 180 in
  • Blade Width: 1-5/16 in
  • Blade Thickness: 0.043 in
  • Main Motor: 5 HP
  • Hydraulic Motor: 1 HP
  • Hydraulic Tank: 11 Gallons
  • Coolant Motor: 1/6 HP
  • Coolant Tank Capacity: 22 Gallons
  • Allowable Loading Capacity: 4400 lbs.
  • Roller Stand Loading Capacity: 3600 lbs.
  • Bundle Cutting (W x H): 7-11 in
  • Cutting Amount Setting: 1-9999
  • Feeding Stroke: 16 in
  • Minimum Material: 1-1/4 in
  • Table Height: 29-3/4 in
  • Length: 93 in
  • Width: 88 in
  • Height: 78 in
  • Weight: 4411 lbs.
