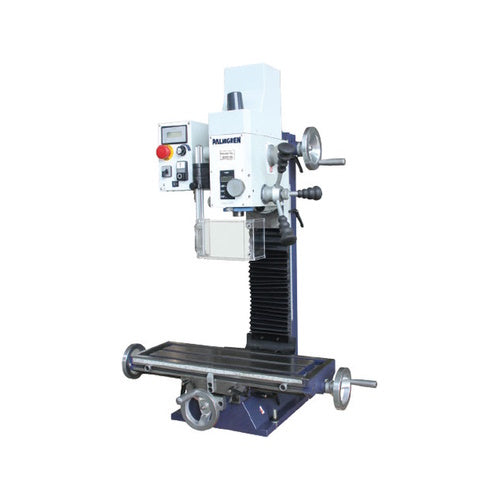

Palmgren 14" Gear Head Milling Machine, Variable Speed, 1.2HP, 115V, 1PH

Model Number: 9680164

Features:
  • The Palmgren Variable Speed Gear Head Milling Machine is the ideal solution for precision machining operations that require versatility, power, and precision. Its compact design makes it an ideal milling machine for tool rooms, pattern shops, mold and die shops, job shops, fabrication shops, and maintenance departments. With an all gear drive transmission, this milling machine delivers full power at any speed, driving cutting tools at nearly 100% of the available horsepower. It features a high-performance brushless DC motor with permanent current control and a variable speed inverter, providing the broadest range of spindle speeds to fit any application. The milling machine is designed with a rigid box column and hardened, ground, and handscraped dovetail ways, ensuring accurate head positioning with minimum deflection and vibration. The milling head can be tilted right or left up to 90 degrees, offering greater flexibility in angle machining operations. The precision machine tool spindle is equipped with taper roller bearings and a spindle concentricity of .0005" at the spindle nose, delivering precision and accuracy in every cut. The cross slide table is precision ground with T-slots, adjustable limit stops, a scale, and three metal adjusting hand wheels, providing maximum versatility in machining operations.
Specifications:
  • Electrical Connection:
    • Motor: 1.2 HP / 115V / 1PH
    • Motor Coolant Pump: 40 W / 0.054 HP
  • Drilling-Milling Capacity:
    • Drilling Capacity: max. Ø 16 mm / 5/8 in
    • Milling Capacity Cutter Head: max. Ø 63 mm / 2-1/2 in
    • Milling Capacity End Mill Cutter: max. Ø 20 mm / 3/4 in
    • Working Range: 185 mm / 7.284 in
  • Spindle Holding Fixture:
    • Spindle Taper: MT 2 - 3/8" - 16 Draw Bar
    • Quill Travel: 50 mm / 1.969 in
  • Drill-Mill Head:
    • Head Tilts: ± 90°
    • Gear Stages: 2 stages, continuously variable
    • Head Travel*?: 280 mm / 11.024 in
    • Maximum Spindle to Table: 335 mm / 13.196 in
  • Speeds:
    • Gear Stage Low: 90 - 1480 RPM
    • Gear Stage Fast: 150 - 3000 RPM
  • Cross Table:
    • Table Length: 500 mm / 19.685 in
    • Table Width: 180 mm / 7.087 in
    • Y-Axis Travel*: 175 mm / 6.890 in
    • X-Axis Travel*: 280 mm / 11.023 in
    • T-Slot Size: 12 mm / .472 in
    • T-Slot Distance: 63 mm / 2.480 in
    • Load of Cross Table (Max.): 55 kg / 121 lbs.
  • Dimensions:
    • Length: 670 mm / 26.378 in
    • Width: 550 mm / 21.654 in
    • Height: 860 mm / 33.858 in
    • Net weight: 103 kg / 227 lbs.
