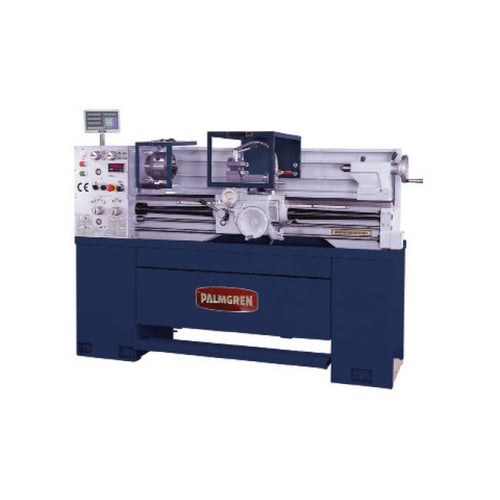

Palmgren 14" x 40" Variable Speed Engine Lathe 220V 3PH

Model Number: 9684527

Features:
  • The Palmgren Variable Speed Engine Lathe is a versatile and powerful machine that is perfect for a wide range of turning applications. Whether you need to remove heavy metal or perform fine tolerance turning operations, this lathe has the power and precision you need. Its compact footprint makes it ideal for use in small shops, large shops, and prototyping labs alike.
  • The electronically controlled variable speed inverter ensures that you have complete control over the spindle RPM, allowing you to achieve the perfect speed for your project. The headstock is designed with hardened and ground gears within a splash lubricant system, providing maximum power and precision with every turn.
  • The bed of the lathe is made of hardened and ground high tensile cast iron for complete rigidity, ensuring that your workpiece remains stable and secure during operation. The control panel is easy to use and comes equipped with a spindle RPM readout for increased operator convenience.
  • To ensure your safety while using the machine, each Palmgren Variable Speed Engine Lathe is equipped with a tool post guard, a chuck guard, a full rear splash guard, and has CSA certified electronics.
Specifications:
  • Swing Over Bed: 14"
  • Swing Over Cross Slide: 8-5/8"
  • Height Of Center: 7"
  • Distance Between Center: 40"
  • Width Of Bedway Gap Type: 7-1/2"
  • Total Length Of Bed: 66"
  • Swing Over Gap: 20-1/4"
  • Length Of Gap: 9"
  • Width In Front Of Face Plate: 5-1/4"
  • Spindle Nose Mounting: Camlock D1-4
  • Spindle Bore: 1-1/2"
  • Taper Of Spindle Bore: MT5
  • Number Of Spindle Speeds: 12 Step Variable Speed
  • Range Of Spindle Speeds: 30-2,000 RPM
  • Total Travel Of Cross Slide: 6-5/16"
  • Total Travel Of Top Slide: 3-3/4"
  • Max. Size Cutting Tool: 7/8"
  • Total Travel Of Tailstock Barrel: 3-1/2"
  • Taper In Tailstock Barrel: MT3
  • Diameter Of Barrel: 1-9/16"
  • Lead Screw Diameter & Pitch Inch: 1", 4 TPI
  • Lead Screw Diameter & Pitch Metric: 25mm, 6mm
  • Feed Rod Diameter: 3/4"
  • Range Of Longitudinal Feeds: 0.0016-0.0368
  • Cross Feed Range: 0.0008-0.0122
  • Main Spindle Motor: 3 HP
  • Machine Voltage & Phase: 3PH 220V
  • Coolant Pump Motor: 1/8 HP
  • Net Weight: 1,650 lbs.
  • Gross Weight: 1,936 lbs.
  • Overall Dimensions: 77" x 30" x 61"
