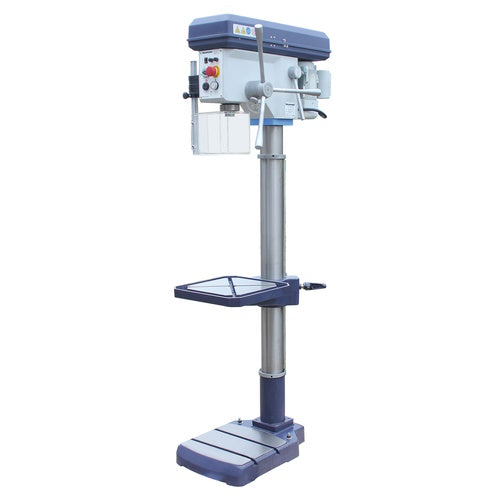

Palmgren 16" 16 Speed Step Pulley Drill Press Floor 115V

Model Number: 9680214

Features:
  • The Palmgren 16 Speed Step Pulley Drill Press Floor is a heavy-duty machine designed for accurate and continuous use. With a wide range of speeds and solid construction, this drill press can handle various drilling tasks with different materials. The pulleys are made of long-wearing aluminum alloy that is fully machined and balanced, providing better power and grip. The drill press also features a Gates 7M industrial V-ribbed V-belt that can last up to 10,000 hours of use. Changing speeds is fast and easy with the quick-change handle and motor spring plate, which provides consistent tension from the motor to the belt and pulleys. The fully enclosed spindle ensures a concentricity of 0.0005" at the spindle nose for accurate drilling. This drill press can be used for a variety of hole-making operations, including drilling, tapping, reaming, boring, spot-facing, counter-boring, and chamfering.
  • Built in halogen work light
  • Forward & reverse switch
  • Drill depth stop
  • Interlocking spindle safety guard
  • T-slotted table and base
  • Electric interlock on the pulley cover
  • Magnetic overload protection
  • Built in tool ejector
  • Chuck and arbor
Specifications:
  • Motor HP: 1HP / 115V / 1PH
  • Spindle Speeds: 262 - 4075 RPM
  • Drilling capacity in steel: Ø 28 mm / 1.103 in
  • Working Range: 16 in
  • Quill Travel: 105 mm / 4.134 in
  • Number of pulley steps: 16 steps
  • Table size L x W: 340 x 360 mm / 13.386 in x 14.173 in
  • T-slot size: 14 mm / .551 in
  • Distance spindle - table (max.): 860 mm / 33.858 in
  • Working surface base L x W: 320 x 320 mm / 12.598 x 12.598 in
  • Distance spindle - base (max.): 1275 mm / 50.197 in
  • Column Diameter: 92 mm / 3.622 in
  • Height: 67.68 in
  • Width: 17.68 in
  • Depth: 27.48 in
