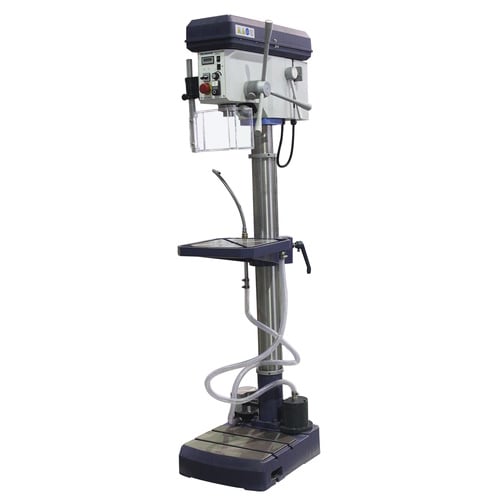

Palmgren 16" Variable Speed Floor Drill Press 230V 1PH - 9680217

SKU:
ET16134
$7,427.06
$7,427.06

Order today and Save! Price going up soon

✅ Fast Shipping
🛡️100% satisfaction
🏅 Authorized dealer
💬 Have a question?
In Stock
$7,427.06
$7,427.06
Quantity
$7,427.06
$7,427.06
Shipping calculated at checkout.
Guaranteed Safe Checkout
American Express Apple Pay Discover Google Pay Mastercard PayPal Shop Pay Visa

📍 Location:

3310 Mayflower Dr, Lynchburg, Va, 24501

🗨️ Let’s Talk! Reach out to us anytime at:

540-600-4204

TRUSTED INDUSTRY EXPERTS

AEC & construction specialists

Fast & Reliable Delivery

Shipping & Tracking

30 Days Returns

Hassle-free 30-day returns*

USA-BASED EXPERT SUPPORT

Real experts, Real guidance

Palmgren 16" Variable Speed Step Pulley Drill Press Floor w/ Power Feed

Model Number: 9680129

Features:
  • The Palmgren Variable Speed Step Pulley Drill Press Floor w/ Power Feed utilizes the latest technology and features to deliver exceptional drilling performance and accuracy. This drill press is designed with the operator in mind, providing an efficient, safe, and ergonomic drilling experience that sets it apart from the competition. With its unique combination of V-belt and variable speed inverter, this drill press offers the broadest speed range available on the market today, making it ideal for working with a wide variety of materials. The pulleys in this drill press are made from long-wearing aluminum alloy, and are fully machined and balanced for optimal performance. The Gates 7M industrial V-ribbed V-belt provides all the necessary power to the spindle, with a service life of 10,000 hours. The brushless DC motor with permanent current control and state-of-the-art variable speed inverter is designed and built exclusively for metalworking machine tools, ensuring optimal performance and precision. The fully enclosed machine tool spindle boasts a concentricity of .0005" at the spindle nose, ensuring accuracy and precision during drilling, reaming, chamfering, tapping, spot-facing, and counter-boring applications.
  • Built in halogen work light
  • Forward & reverse switch
  • Tapping mode
  • Coolant
  • Digital spindle rpm readout
  • Interlocking spindle safety guard
  • Electric interlock on pulley cover
  • Magnetic overload protection
  • Built in tool ejector
  • Chuck and arbor
Specifications:
  • Motor HP: 2HP / 230V / 1PH
  • Spindle Speeds: 35 - 4000 RPM
  • Spindle Taper: MT3/JT3
  • Drilling capacity in steel: Ø 28 mm / 1.104 in
  • Working Range: 16 in
  • Quill Travel: 105 mm / 4.134 in
  • Number of pulley steps: 12 steps, continuously variable
  • Table size L x W: 340 x 360 mm / 13.386 x 14.173 in
  • T-slot size: 14 mm / .551 in
  • Distance spindle - table (max.): 860 mm / 33.858 in
  • Working surface base L x W: 370 x 360 mm / 14.57 x 12.6 in
  • Distance spindle - base (max.): 1275 mm / 50.197 in
  • Column Diameter: 92 mm / 3.622 in
  • Height: 69.094 in
  • Width: 18.661 in
  • Depth: 27.598 in
