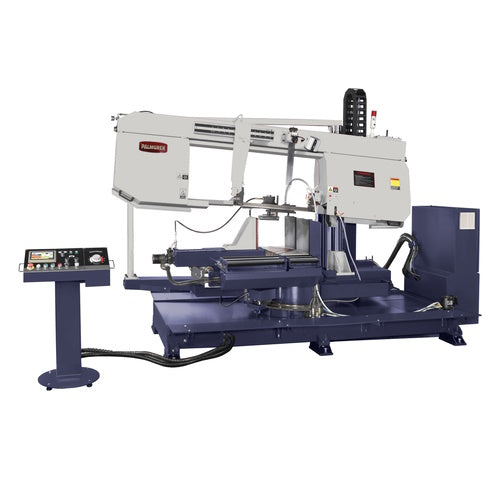

Palmgren 18" Semi-Auto Dual Miter Band Saw

Model Number: 9684484

Features:
  • Palmgren's high production, horizontal, semi-automatic, large capacity, Dual Miter Band Saw is a versatile and powerful saw that can handle a wide range of cutting tasks. Its 18" cutting capacity makes it ideal for cutting large diameter materials, while its dual direction swivel allows for precision miter cuts up to 45 degrees to the right and 60 degrees to the left. This makes it perfect for fabricators who need to cut multiple angles in the same workpiece.
  • Touch display control panel for easy positioning and operation
  • Hydraulic blade tensioning
  • 1-9/16" blade with motor driven blade brush
  • Saw blade is set at 7 degree angle allowing for more efficient cutting
  • Electronic inverter variable speed
  • Hydraulic adjustable carbide blade guides
  • Blade guard arm has automatic adjustment for proper positioning
  • Material sensor and switch controls rapid advance to workpiece limiting excess movement of the saw head
  • Miter angle of the saw head is set on the control screen and the saw head automatically moves to programmed angle via servo motor with hydraulic brake for fast accurate positioning
  • Vise pressure regulator to handle various types and shapes of materials
Specifications:
  • Voltage: 230V
  • Phase: 3 HP
  • Main Motor HP: 5 HP
  • Hydraulic Motor: 2 HP
  • Hydraulic Tank: 9 Gallons
  • Coolant Motor: 1/6 HP
  • Coolant Tank Capacity: 37 Gallons
  • Table Height: 30 in
  • Round at 45 Degrees: 18 in
  • Round Material Max. 0º: 18 in
  • Round Material Max. 60°: 13-3/4 in
  • Rectangle 0°: 17-1/4 in x 32-1/4 in
  • Rectangle at 45 Degrees: 16-1/2 in x 21-1/2 in
  • Rectangle at 60 Degrees: 18 x 11 in
  • Blade Speed: 82-282
  • Blade Length: 243-1/2 in
  • Blade Width: 1-9/16 in
  • Blade Thickness: 0.051 in
  • Length: 142 in
  • Width: 66.5 in
  • Height: 85 in
  • Weight: 4620 lbs.
