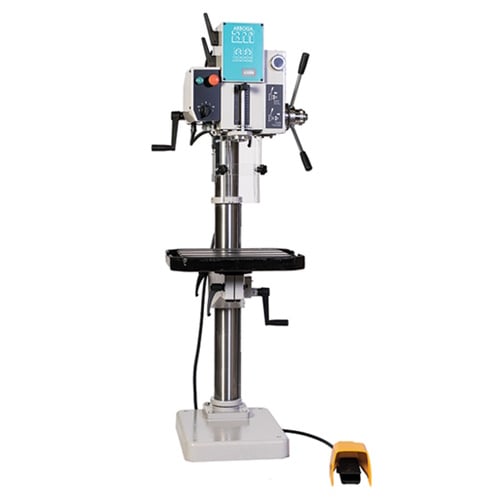

Palmgren 20" Gear Head Drill Press, 460V w/ Foot Reversing Switch & Power Feed

Model Number: 9680247

Features:
  • The Palmgren Gear Head Drill Press w/ Foot Reversing Switch & Power Feed's addition of an all-gear drive, mechanical clutch and spindle power feed allows for consistent feeding of the cutting tool through the workpiece, making it the ideal drill for precision drilling applications and continuous industrial use. The gear drive transmission ensures that the drill delivers full power at any speed, driving the cutting tools at nearly 100% of the available motor horsepower, while the helical ground gears ensure quiet and positive operation. With a wide speed range, this drill can efficiently drill large to small diameter holes. The foot reversing switch and power feed also add to the ease of operation and accuracy of this drill press.
  • Chuck & Spindle Guard
    • A clear adjustable chuck and spindle guard offers added protection to the operator throughout the drilling cycle.
  • Inch / Metric Depth Stop
    • Front mounted for better visibility and added operator convenience. It is easily adjusted with the turn of a locking knob and displays both inch and metric measurements.
  • All Gear Drive
    • The all-gear drive transmission delivers full power at any speed, driving tools at nearly 100% of available horsepower. These drills utilize the combination of hardened steel and high-strength fiber helical cut gears to ensure positive, quiet operation. All clutches are made of ground steel for easy speed changes and added strength.
  • Inch/Metric depth stop
  • 2 speed manual forward & reverse switch
  • Foot reversing switch
  • Head & table rotates 360 degrees around the column
  • Machined & t-slotted table
  • Quick release drill ejector
  • Chuck guard
  • No-volt release prevents spindle start-up when power returns after shutdown
  • 4" Palmgren drill press vise
  • Drill chuck & arbor
  • Made in Sweden
Specifications:
  • Swing: 20"
  • Spindle Taper: MT3
  • Motor: 1-1.5 HP, 460V, 3 Ph
  • Capacity Steel: 1"
  • Capacity Cast Iron: 1-1/8"
  • Power Feed: Yes
  • Number Of Speeds: 8
  • Spindle Speed: 130-3480 RPM
  • Spindle Travel: 5-1/8"
  • Base Size: 15-3/4" x 20"
  • Table Work Surface: 20" x 15-3/4"
  • Number Of T-Slots: 3
  • Table Slot Size: 1"
  • Column Diameter: 4"
  • Spindle To Table: 32-3/4"
  • Overall Dimensions: 15-3/4" x 20" x 71-1/2"
  • Weight: 429 lbs.
