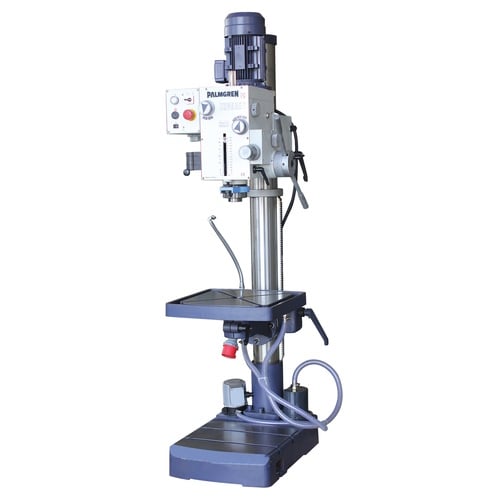

Palmgren 22" Gear Head Drill Press 2HP 240V

Model Number: 9680212

Features:
  • The Palmgren Gear Head Drill Press is built to withstand continuous industrial use and features a mechanical clutch system for power feed. It's perfect for drilling, reaming, chamfering, tapping, spot-facing, and counterboring applications with ease.
  • Spindle gear box is equipped with hardened and ground steel gears and shafts lubricated on a continuous oil bath for long term quite, smooth operation
  • Fully enclosed machine tool ground spindle with internal 4 MT mounted in precision bearings for maximum accuracy, minimizing deflection
  • Front-mounted control panel designed for operator convenience
  • Forward & reverse spindle switch
  • Mechanical clutch spindle power feed
  • Fine feed wheel for small hole and finishing operations
  • Rack and pinion head and table raiser system
  • T-slotted production table and base
  • Front mounted dial adjusted work stop
  • 4 1/2" column provides maximum head, table, and base support and stability
  • Safety electrical package with emergency push button stop switch, 24 volts at the switch, and interlocking chuck guard
  • Flood coolant system
Specifications:
  • Swing: 22 in
  • Motor HP: 1-1/2" - 2PH - 240V - 3PH - 60HZ
  • Capacity Cast Iron: 1 - 9/16 in
  • Spindle Speeds: 95 - 3200 RPM
  • Number of Speeds: 12
  • Spindle Taper: MT4/JT3
  • Spindle Travel: 4- 3/4 in
  • Spindle to Table: 29-3/4 in
  • Table Work Surface: 16-3/4 x 17-1/2 in
  • Table Slot Size: 1/2 in
  • Column Diameter: 4 - 1/2 in
  • Power Feed: Yes
  • Base Size: 16 x 20 in
  • Chuck Size: 5/8 in
  • Drive Type: Gear Head
  • Capacity Steel: 1 - 1/4 in
  • Quill Diameter: 2 - 61/64 in
  • Height: 80 in
  • Width: 23-1/2 in
  • Depth: 28 in
