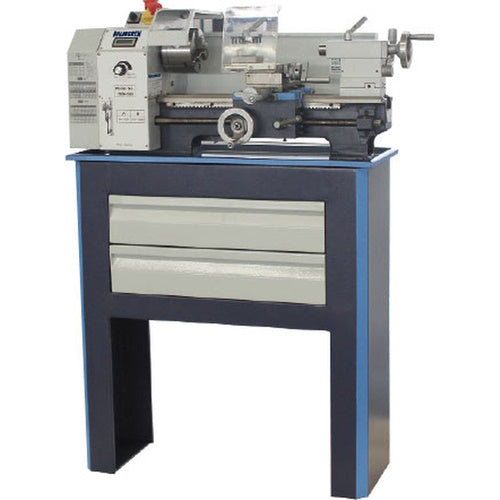

Palmgren 8" x 12" Bench Engine Lathe 115V 1PH

Model Number: 9684508

Features:
  • Experience precision, power, and versatility with the Palmgren Bench Engine Lathe. Constructed with heavy cast iron and helical gears, this lathe is designed to handle a wide range of turning operations, even those normally found in larger machines. The hardened and ground ways ensure trouble-free and precise turning for years to come. Built and inspected to the DIN 8606 toolmakers precision lathe standard, you can be assured of consistent performance and accuracy. The bench lathe is the right choice for turning small metal parts and is used in proto-type shops, home machinists, jewelry manufacturing, tool rooms, fabrication shops, and maintenance shops.
Specifications:
  • Motor: 7/8HP - 115V - 1PH - 60Hz
  • Swing Over Bed: 8"
  • Distance Between Centers: 12"
  • Spindle Taper: MT 3
  • Spindle Bore: 3/4"
  • Number of Spindle Speeds: Variable
  • Spindle Speed: 150 to 2500 RPM
  • Bed Width: 3-15/16"
  • Cross Travel: 4"
  • Compound Travel: 2-1/4"
  • Carriage Travel: 10-1/2"
  • Tailstock Taper: MT 2
  • Tailstock Travel: 2"
  • Thread Range (in): 8 to 44
  • Thread Range (mm): .2 to 4.0
  • Longitudinal Feed Rates: 0.004 to 0.008
  • Overall Length: 33"
  • Overall Width: 16-3/4"
  • Overall Height: 14-1/4"
  • Weight: 135 lbs.
