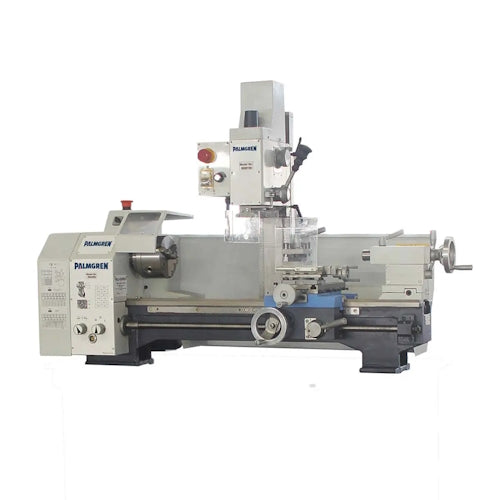

Palmgren 9" x 20" Bench Combination Engine Lathe & Variable Speed Mill

Model Number: 9680213

Features:
  • The Palmgren Bench Combination Engine Lathe & Variable Speed Mill is the ultimate machine for those who demand precision, power, and versatility in their machining operations. Designed to handle a wide range of turning, milling, and drilling operations, this machine is perfect for those who need the capabilities of much larger machines in a smaller package. With heavy cast iron construction, precision thrust and ball bearings in the headstock and spindles, and hardened and ground ways, this machine is built to last and deliver precise results every time. It is designed to meet the DIN 8606 toolmakers precision lathe standard, assuring accuracy and consistent performance. The all-gear drive transmission on the mill delivers full power at any speed, driving cutting tools at nearly 100% of available horsepower and torque. This means that you can tackle even the toughest materials with ease, making this machine a valuable asset in any workshop. With its wide range of versatility and features, this all-purpose combination lathe/mill is one of the most functional manual machine centers available today. It is perfect for all types and sizes of shops, from professional machinists to DIY enthusiasts.
Specifications:
  • Lathe Specifications:
    • Motor: 1PH - 115V - 13.6 Amps - 1PH - 60 Hz
    • Swing Over Bed: 9-7/8"
    • Distance Between Centers: 20"
  • Spindle:
    • Spindle Speed: 125 - 2000 RPM
    • Number of Steps: 6
    • Spindle Taper: MT3
    • Spindle Hole: 1"
    • Chuck Size: 5"
  • Slide:
    • Bed Width: 5-7/8"
    • Travel Top Slide: 19-1/2"
    • Compound Slide Travel: 3-9/16"
    • Distance Between Center and Compound Table: 3"
    • 4 Position Tool Post Height: 3-3/4"
  • Tailstock:
    • Tailstock Taper: MT2
    • Tailstock Sleeve Travel: 2-1/2"
    • Longitudinal Feed: 0.003" 0.004" 0.006" 0.008 0.012" 0.016"
    • Pitch: 0.2 - 4 / 8 - 56
  • Dimensions / Weight:
    • Size: 33-1/2" H x 49" L x 23" D
    • Weight: 320 550 lb
  • Spindle:
    • Spindle Holding Fixture: MT2 3/8"-16 Draw Bar
    • Spindle Travel: 2"
  • Drill - Mill Head:
    • Swivel of the Milling Head: + / - 90°
    • Gear Stages: 2
    • Low Range: 100 - 1500
    • High Range: 200 - 3000
    • Z-Axis Travel: 10-1/2"
  • Cross Table:
    • Table Length: 10"
    • Table Width: 4-3/4"
    • Y-Axis Travel: 4-21/64"
    • X-Axis Travel: 3"
    • T-Slot Size/Distance/Qty: 5/8"
    • Weight: 227.08 lb
