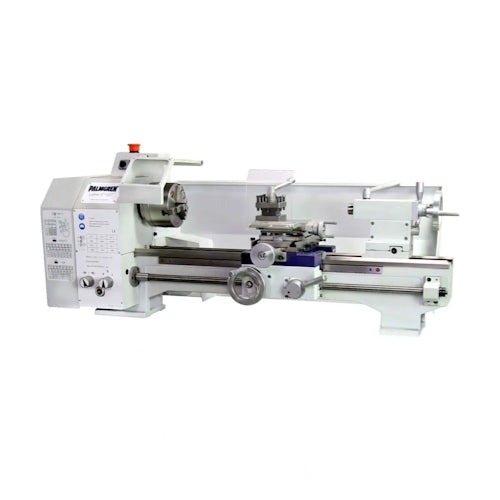

Palmgren 9" x 20" Bench Engine Lathe 115V 1PH

Model Number: 9684504

Features:
  • The Palmgren Bench Engine Lathe is a powerful and versatile machine that delivers precision turning for a wide range of operations. Its heavy cast iron construction, precision thrust and ball bearings, and hardened and ground ways ensure smooth power transmission and trouble-free operation. Built to the DIN 8606 toolmakers' precision lathe standard, this lathe delivers accurate and consistent performance. The bench lathe is the right choice for turning small metal parts and is used in proto-type shops, tool rooms, fabrication shops, maintenance shops, jewelry manufacturing and by home and hobby machinists.
  • Machine tool spindle
  • Dual P5 tapper roller bearings on spindle
  • Prismatic bed of solid aged cast iron – hardened to HRO 42-52 for long life
  • Fast easy feed speed and direction changes with front-mounted selector handles
  • Feed gear box is constructed of steel gears running in an oil bath
  • Feed lead screw is supported and runs on two bearings
  • Precision machined slide with adjustable hand wheels with 0.002" / 0.001" scales
  • Tailstock with adjustable precision scale of 0.02 mm / 0.001"
  • 3 Jaw lathe chuck
  • 4 Way tool post
  • Safety lathe chuck and tool post guards
  • Centers
  • Chip tray and splash guard
  • OPTIONAL ACCESSORIES:
    • 9684505 - Heavy duty steel floor stand with hinged doors for added storage
    • 9684506 - Follow rest for 9" bench lathe
    • 9685407 - Steady rest for 9" bench lathe
Specifications:
  • General Specifications:
    • Motor: 1HP / 115V / 60HZ / 1PH
    • Center Height: 125 mm / 4.92 in
    • Distance Between Centers: 550 mm / 21.65 in
    • Turning Diameter (max): 250 mm / 9.84 in
    • Max Swing Over Compound Slide: 150 mm / 5.91 in
    • Bed Width: 135 mm / 5.31 in
  • Spindle:
    • Spindle Speed: 125 - 2000 RPM
    • Number of Steps: 6
    • Spindle Taper: MT4
    • Spindle Hole: 26 mm / 1.02 in
    • Chuck Size: 125 mm / 4.92 in
  • Slide:
    • Top Slide Travel: 70 mm / 2.76 in
    • Compound Slide Travel: 110 mm / 4.33 in
  • Tailstock:
    • Tailstock Taper MT2: 0
    • Tailstock Sleeve Travel: 65 mm / 2.56 in
    • Longitudinal Feed: .002" - .012"
    • Pitch: 0.2 - 4.0 mm / 56 - 8 in
    • Tool Holder Seat Height: 13 mm / 0.5 in
  • Weight & Dimensions:
    • Length: 1250 mm / 49.21 in
    • Width: 585 mm / 23 in
    • Height: 475 mm / 18.70 in
    • Weight: 125 kg / 276 lb
