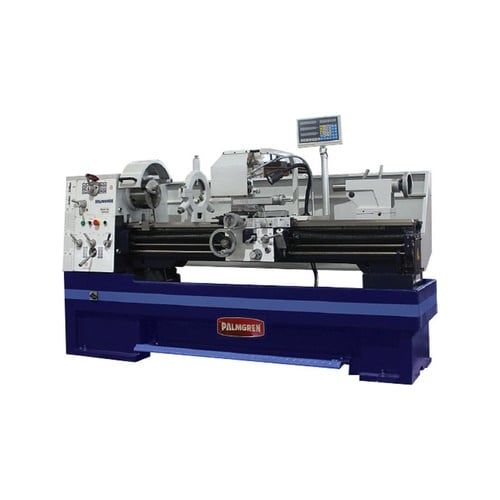

Palmgren D420 Engine Lathe 16" x 60" w/ Digital Readout 230V 3PH

Model Number: 9684524

Features:
  • The Palmgren D420 Engine Lathe with Digital Readout combines power and precision to handle a wide range of turning operations. This machine comes standard with a DRO and glass scales for added convenience and accuracy. The helical precision-cut gears are hardened and ground, ensuring smooth and quiet power for fine finishing as well as maximum power for roughing cuts. The main spindle is made of high alloy steel and mounted in precision taper roller bearings, and the universal gearbox delivers a broad range of feed and thread selections for both inch and metric threads. The wide bed ways are made of stabilized cast iron, ground and hardened for durability. The control panel is user-friendly, and each machine is built and inspected to the DIN 8606 toolmakers precision lathe standard to ensure consistent performance and accuracy. These all-purpose lathes are ideal for turning applications requiring heavy metal removal or fine tolerance finishing and are commonly used in tool rooms, die and mold shops, fabrication shops, and maintenance departments.
Specifications:
  • Motor: 6HP - 230V - 3PH - 60Hz
  • Swing Over Bed: 16"
  • Distance Between Centers: 60"
  • Spindle Taper: MT 6
  • Spindle Bore: 1-1/2"
  • Number of Spindle Speeds: 16
  • Spindle Speed: 45 - 1800 RPM
  • Spindle Seat: Camlock ASA D 1-6
  • Bed Width: 9-7/8"
  • Cross Travel: 9"
  • Compound Travel: 4"
  • Carriage Travel: 55"
  • Tailstock Taper: MT 4
  • Tailstock Travel: 4-3/4"
  • Thread Range (mm): 0.2 - 14
  • Longitudinal Feed Range: 0.002 - 0.067
  • Overall Length: 97"
  • Overall Width: 36"
  • Overall Height: 53"
  • Weight: 3970 lbs.
