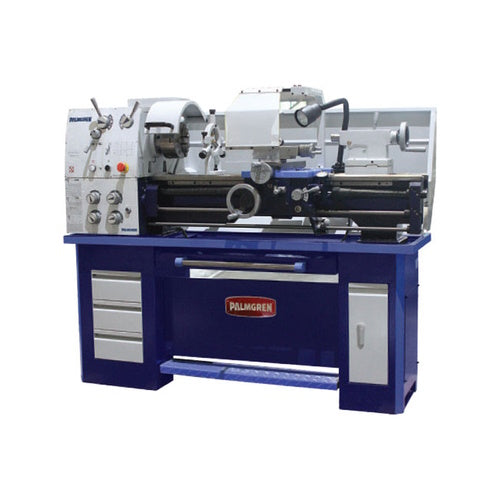

Palmgren Engine Lathe 12" x 36" 2HP, 115/230V, 1PH

Model Number: 9684510

Features:
  • The Palmgren Engine Lathe offers precision, power, and versatility to tackle various turning operations, usually found in larger machines. Its heavy cast construction, smooth power transmission through helical gears, and hardened and ground ways guarantee years of trouble-free, precise turning. All Palmgren lathes comply with the DIN 8606 toolmakers' precision lathe standard, ensuring accuracy and consistent performance. This lathe is perfect for turning small metal parts and is used in a variety of settings, including prototype shops, home machinists, jewelry manufacturing, tool rooms, fabrication shops, and maintenance shops.
Specifications:
  • Motor: 2HP - 115/230V - 1PH - 60Hz
  • Swing Over Bed: 12"
  • Distance Between Centers: 36"
  • Spindle Taper: MT 5
  • Spindle Bore: 1-1/2"
  • Number of Spindle Speeds: 18
  • Spindle Speed: 65 - 1800 RPM
  • Spindle Seat: Camlock ASA D1-4
  • Bed Width: 7-1/4"
  • Cross Travel: 6-3/8"
  • Compound Travel: 3-11/32"
  • Carriage Travel: 31"
  • Tailstock Taper: MT 3
  • Tailstock Travel: 3-15/16"
  • Thread Range (In.): 4 - 56
  • Thread Range (mm): 0.4 - 7
  • Longitudinal Feed range: 0.002 - 0.055
  • Overall Dimensions: 66" L x 30" W x 56" H
