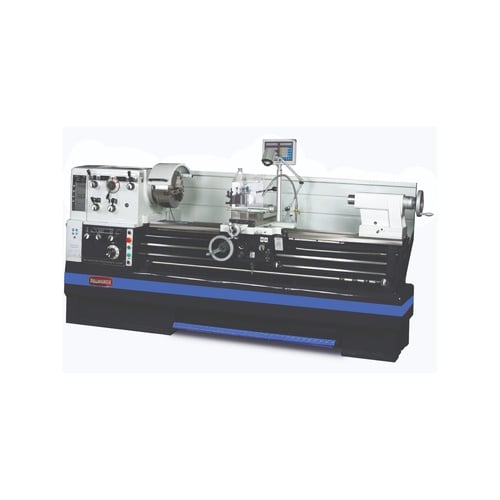

Palmgren Engine Lathe 18" x 80" 230/460V 3PH

Model Number: 9684554

Features:
  • The Palmgren Engine Lathe is designed to handle heavy metal removal and precision fine tolerance turning with ease. Equipped with a convenient DRO and glass scales, this machine offers accurate and reliable performance. The headstock is engineered for maximum power and smooth finishing, while the helical precision cut gears run in a constant oil bath for durability. The main spindle, made of high alloy steel, is mounted in precision taper roller bearings for added control. The user-friendly control panel is designed for operator convenience, and the wide bed ways are made of stabilized cast iron for a lifetime of use. The universal gear box offers a broad range of feed and thread selections, making it ideal for both inch and metric threads. All gears are hardened and turn on anti-friction bearings, ensuring consistent and reliable performance. Built and inspected to the DIN 8606 toolmakers precision lathe standard, this all-purpose lathe is perfect for tool rooms, die and mold shops, fabrication shops, and maintenance departments.
Specifications:
  • Motor: 7.5HP - 230/460V - 3PH
  • Swing Over Bed: 18"
  • Distance Between Centers: 80"
  • Spindle Taper: MT6
  • Spindle Bore: 3-1/8"
  • Number of Spindle Speeds: 12
  • Spindle Speed: 30-2400 RPM
  • Bed Width: 11-3/4"
  • Cross Travel: 11.2"
  • Compound Travel: 5"
  • Tailstock Taper: MT4
  • Tailstock Travel: 4-3/4"
  • Thread Range (In.): 2/1/1940
  • Thread Range (mm): 0.1-14
  • Longitudinal Feed Rates: 0.001 - 0.033"
  • Overall Length: 128"
  • Overall Width: 49"
  • Overall Height: 63"
