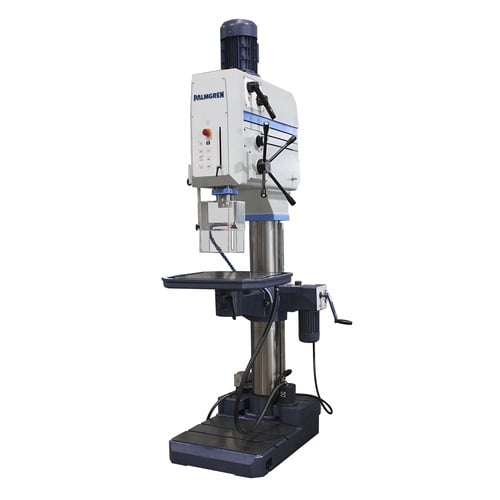

Palmgren Gear Head Drill Machine 16-S 230V 32"

Model Number: 9680137

Features:
  • The Palmgren Gear Head Drill Machine is a versatile, variable speed, gear head drill press that's all-gear driven, making it perfect for precision drilling applications and continuous industrial use. With a gear-driven transmission designed to deliver full power at any speed and drive the cutting tool at nearly 100% of the available motor horsepower, this drill press is designed for maximum efficiency.
  • Extra wide speed range with 16 selectable speeds
  • Spindle gear box is equipped with hardened and ground steel gears and shafts, lubricated by an internal oil pump for quiet, smooth operation
  • Fully enclosed machine tool ground spindle with internal 4 MT mounted in precision bearings for maximum accuracy, minimizing deflection
  • Front-mounted control panel designed for operator convenience
  • Rack and pinion table raiser system
  • T-slotted production table and base
  • Front mounted, dial adjusted, work stop
  • 8-inch column provides maximum head, table, and base support and stability
  • Flood coolant system
  • Maximum spindle runout of 0 0005"
  • Motorized table
  • Table tilts left & right 45°
Specifications:
  • Swing: 33 in
  • Spindle Speed: 54 to 2400
  • Spindle Taper: MT4/JT3
  • Spindle Travel: 7-7/8 in
  • Voltage: 230
  • AMPS: 16
  • Capacity Cast Iron: 2 - 1/8 in
  • Table Work Surface: 25 x 20.5 in
  • Table Slots: 3
  • Number of Speeds: 16
  • Column Diameter: 8 in
  • Base Size: 35.75 x 23.625 in
  • Drive Type: Gear
  • HP: 4-5
  • Phase: 3
  • Table Slot Size: 14 mm
  • Tilting Angle: 0° to 90°
  • Capacity Steel: 2 in
  • Quill Diameter: 88 mm
  • Height: 92.5 in
  • Width: 29 in
  • Depth: 40.3 in
