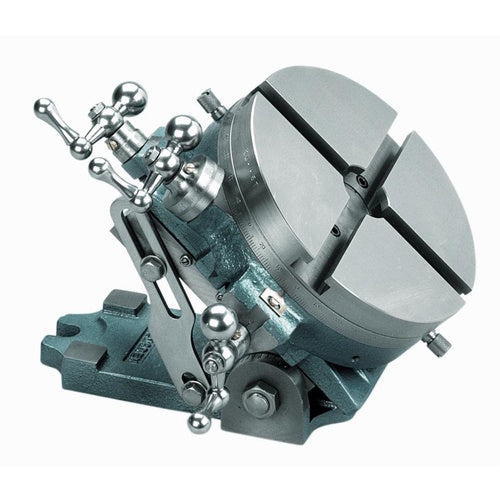

Palmgren Rotary Cross Slide Table w/Angle 10"

Model Number: 9634103

Features:
  • The Palmgren Rotary Cross Slide Table w/Angle allows for precise, versatile movements and positioning for a variety of applications. This table is designed for drill presses, milling machines, surface grinders, and layout tables and features rotary indexing, lateral and transverse cross feed, and graduated angle settings.
  • Accurately position work on the “X” and “Y” axis, as well as 360° table rotation
  • Precision ground table top to 0.001" total indicator reading
  • A 5/8" keyway and mounting lugs are provided for locating and accurate, secure mounting
  • Smooth worm gear drive provides positive rotary feed
  • Balanced ball crank feed handles do not exceed below the base to eliminate interference with the machine table
  • 4" cross slide travel
  • Cross slide dials are calibrated in 0.001" increments
  • Rotary dials are graduated in 3 minute increments and 1 minute increment on the vernier
  • Angular inclination from 0° horizontal to 90° vertical. Angular position is indicated in 1° increments and locked via 4 bolts and 2 side plates
Specifications:
  • Table Diameter: 10 in
  • Travel (X x Y): 4x4 in
  • Base (X x Y): 9x5 in
  • Height at 0 degrees: 5- 3/4 in
  • Weight: 54 lb
