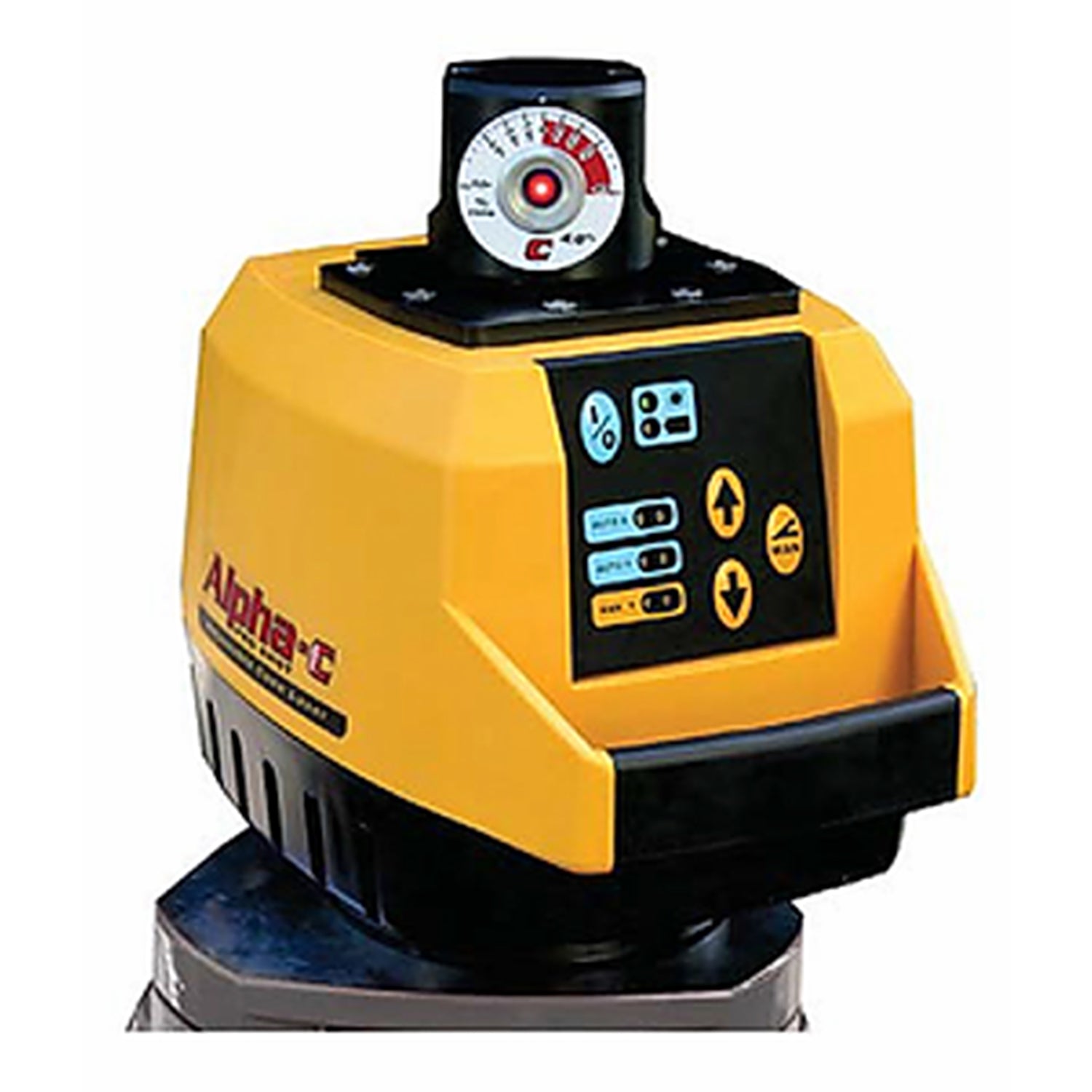

Pro Shot Laser Alpha C Self-Leveling Laser Level

Available Options:

• 020-0020C: Alpha C Self-Leveling Laser Level with R9 Receiver, Clamp & Case
• 020-0020CH: Alpha C Self-Leveling Laser Level High Resolution with R9 Receiver, Clamp & Case

Manufacturer: Pro Shot Laser

Availability Notice: Most items are in stock and ready to ship. However, certain products may experience temporary delays or extended lead times due to ongoing industry-wide supply chain or manufacturing constraints. If your order is affected by a backorder or extended lead time, our team will contact you with the latest availability information. We appreciate your patience and understanding.

The Pro Shot Laser Alpha C Self-Leveling Laser Level is a specialized construction laser designed to project an adjustable conical sloping reference for applications where a conventional flat horizontal laser plane is not sufficient. Built on Pro Shot's Alpha platform, the Alpha C combines servo-motor self-leveling, precision construction, and a custom adjustable cone rotor head.

The standard Alpha C can project an upward or downward cone with slopes of up to ±4% in 0.25% increments. The Alpha C High Resolution version provides a finer conical slope adjustment of up to ±1.7% in 0.10% increments, making it better suited for applications requiring smaller and more precise slope changes.

This unique conical reference makes the Alpha C particularly useful for baseball fields, running track corners and infield "D" zones, and containment or collection areas surrounding storage tanks. The laser can be positioned at either the high or low point of the application and can also function as a precise conventional laser level.

Both configurations include the Pro Shot R9 Laser Receiver, receiver clamp, and carrying case. With the R9, the system provides up to a 2,000 ft diameter working range, while the Alpha C's IP56 construction, machine-control compatibility, and 8-year warranty make it suitable for demanding professional field use.

Ideal Applications

The Pro Shot Alpha C is designed for:

• Baseball Field Grading
• Baseball Infield Construction
• Running Track Construction
• Running Track Corners
• Track Infield "D" Zones
• Storage Tank Containment Areas
• Tank Collection Areas
• Circular Grading
• Conical Slope Applications
• Drainage Grading
• Site Preparation
• Athletic Field Construction
• Precision Leveling
• Machine Control
• General Construction

Available Package Options

Choose between the standard Alpha C for a wider cone slope range or the High Resolution model for finer slope adjustments.

Compare Package Options

Which Package Should I Choose?

020-0020C – Alpha C Standard

Choose the standard Alpha C when you need the broader ±4% conical slope range and 0.25% adjustments are sufficient for the project.

Its wider slope capability makes it a strong choice for athletic fields, running tracks, containment areas, and other projects requiring a defined conical grade.

Recommended For:

• Baseball Fields
• Running Tracks
• Athletic Facilities
• Storage Tank Containment
• Circular Drainage Areas
• Sitework Contractors
• General Conical Grading

020-0020CH – Alpha C High Resolution

Choose the High Resolution version when the application requires finer slope control. It provides conical slope adjustment up to ±1.7% with increments as fine as 0.10%.

Recommended For:

• Precision Athletic Field Grading
• Fine Drainage Control
• Running Track Construction
• Precision Containment Grading
• Projects with Tighter Slope Specifications
• Specialized Sitework

Key Features

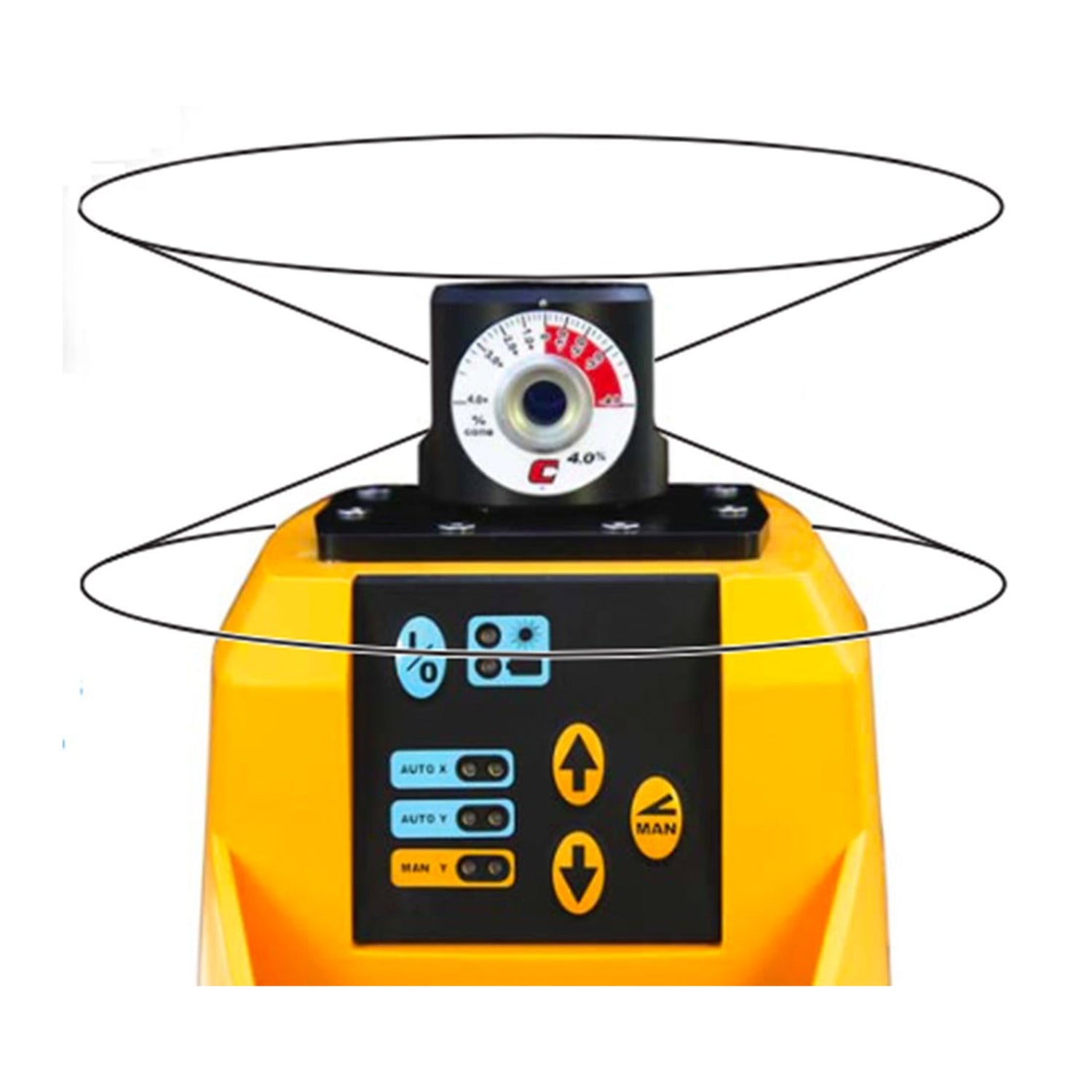

Adjustable Conical Laser Reference

Unlike a conventional rotary laser that primarily establishes a flat horizontal plane, the Alpha C incorporates a custom precision cone rotor head.

The adjustable head allows the laser to establish a conical sloping reference, making it useful for projects where grade must consistently rise or fall around a central point.

Set Up at the High or Low Point

The Alpha C can be positioned at either the high point or low point of the application and project the appropriate conical slope reference.

This provides flexibility when establishing grades for athletic fields, tracks, containment areas, and similar projects.

±4% Cone Slope – Standard Alpha C

The standard Alpha C provides a cone slope range of ±4% with adjustments in 0.25% increments.

This configuration provides the broader slope range of the two available models.

±1.7% High Resolution Cone Slope

The Alpha C High Resolution model provides a ±1.7% cone slope range with finer 0.10% increments.

The smaller adjustment increments provide additional control for projects requiring more precise slope settings.

Precision Horizontal Leveling

In addition to specialized cone-slope applications, the Alpha C can function as a precise self-leveling laser level.

Horizontal accuracy is specified at ±10 arc seconds, equivalent to approximately ±1/16 in. per 100 ft or ±1.5 mm per 30 m.

2,000 ft Working Diameter

When used with the included R9 receiver, the Alpha C provides a working range of up to:

• 2,000 ft diameter
• 1,000 ft radius
• 610 m diameter / 305 m radius

This makes the system suitable for large athletic fields, construction sites, and containment areas.

Servo Motor Self-Leveling

The Alpha C uses servo motor self-leveling technology with a leveling range of ±5°.

Automatic leveling helps establish a reliable reference while reducing manual setup requirements.

Single-Axis Slope Matching

The Alpha C provides a single-axis slope matching range of 8%, adding versatility for construction and grading applications beyond its specialized conical slope function.

Height Alert

The built-in Height Alert is normally active and warns operators when the laser's established reference may have changed.

The Height Alert function can also be disabled when required for the application.

500 RPM Rotation

The Alpha C provides full 360° rotation at 500 RPM, producing continuous laser coverage around the work area.

Machine Control Compatible

The Alpha C is compatible with machine-control applications, allowing it to serve as a laser reference for compatible machine-mounted receivers.

Visible 650 nm Laser Beam

The system uses a visible 650 nm laser beam for construction leveling and grade-control applications.

IP56 Environmental Protection

The Alpha C is sealed to IP56 international standards, providing protection against dust and water for professional outdoor use.

Wide Operating Temperature Range

The laser operates from -4°F to +140°F (-20°C to +60°C), supporting use across a broad range of field conditions.

Long Battery Life

The Alpha C operates on four C-cell batteries and provides up to 75 hours of operation with alkaline batteries.

An optional NiMH rechargeable battery kit provides up to 48 hours of operation.

8-Year Manufacturer Warranty

The Alpha C is backed by an 8-year manufacturer warranty.

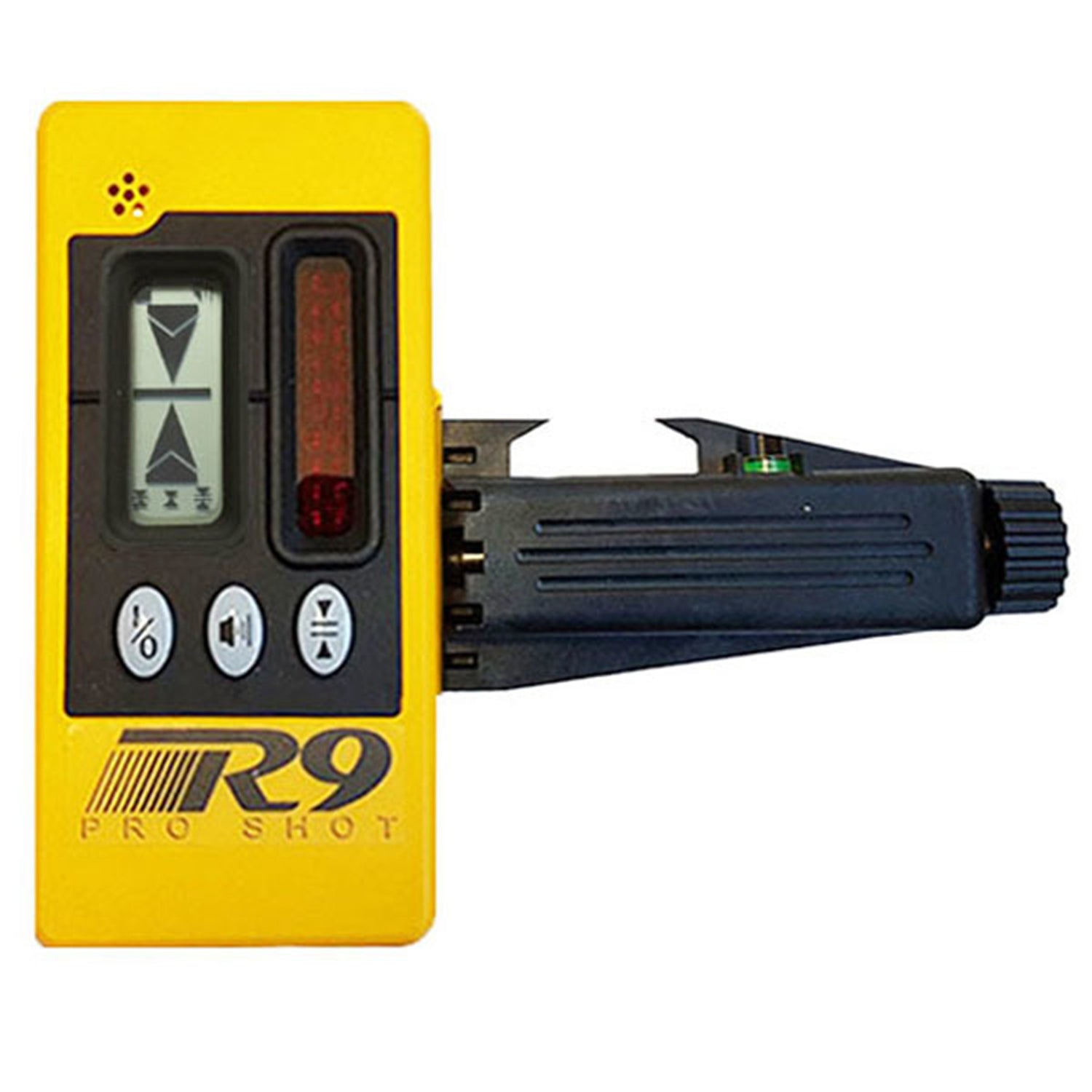

R9 Laser Receiver Features

Dual-Sided Display

The included Pro Shot R9 Receiver provides information on both sides of the receiver for convenient viewing during grade work.

It features LED indicators on the rear and a 5-channel LCD height display on the front.

Three Accuracy Modes

The R9 provides three selectable accuracy levels:

• Ultra-Fine: ±1.0 mm
• Standard: ±1.6 mm
• Coarse: ±3.2 mm

This allows operators to adjust receiver sensitivity based on the precision requirements of the job.

50 mm Reception Height

The receiver provides a 50 mm reception height and a 120° reception angle, helping operators efficiently capture the rotating laser beam.

Adjustable Audible Tone

The R9 receiver offers three audible settings:

• High
• Low
• Off

Automatic Shut-Off

The receiver automatically shuts down after approximately 12 minutes without receiving a laser strike, helping conserve battery life.

Technical Specifications

Alpha C Laser

R9 Receiver Specifications

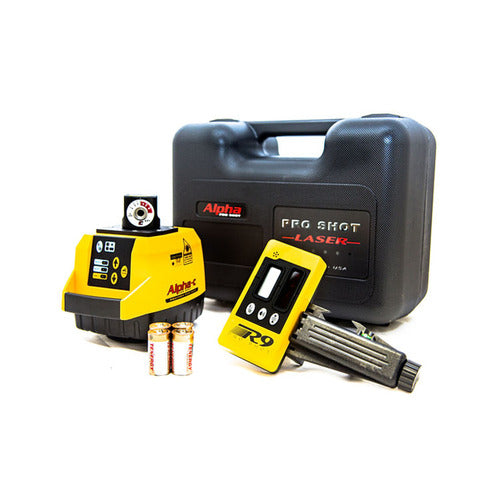

What's Included

020-0020C – Alpha C Standard

• (1) Pro Shot Alpha C Self-Leveling Laser Level
• (1) Pro Shot R9 Laser Receiver

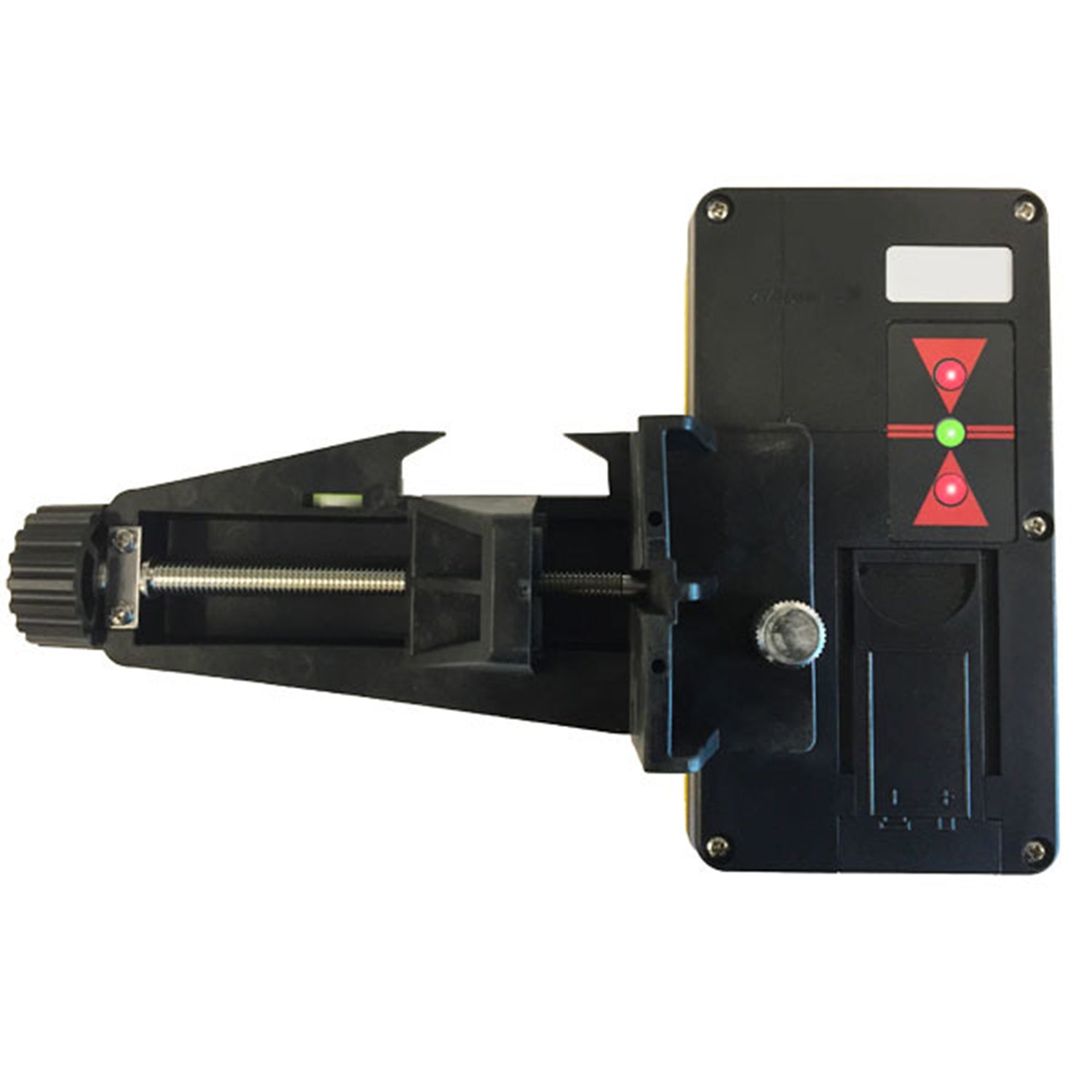

• (1) Receiver Clamp

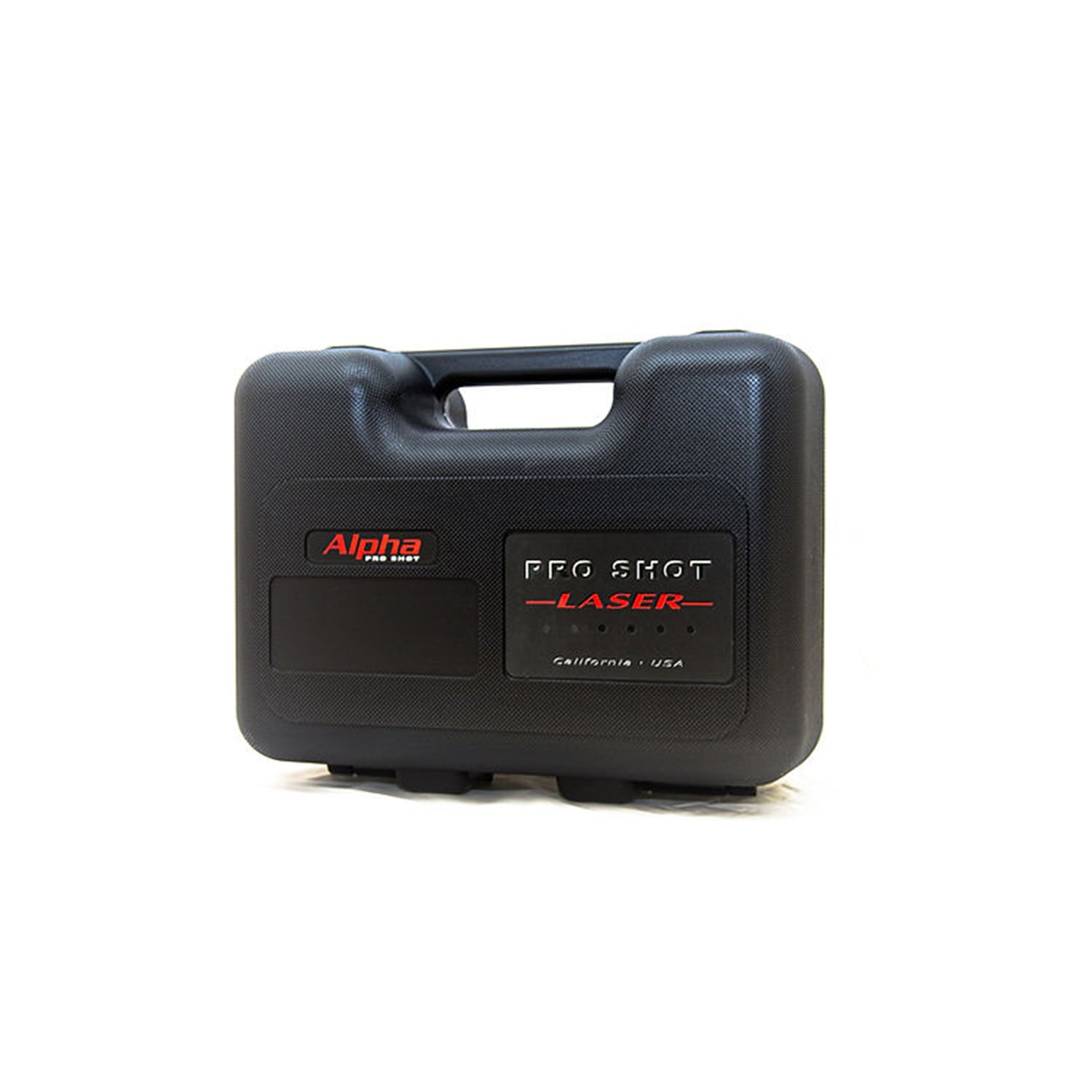

• (1) Carrying Case

020-0020CH – Alpha C High Resolution

• (1) Pro Shot Alpha C High Resolution Self-Leveling Laser Level
• (1) Pro Shot R9 Laser Receiver
• (1) Receiver Clamp
• (1) Carrying Case

Why Choose the Pro Shot Laser Alpha C?

The Pro Shot Alpha C fills a specialized role that conventional horizontal and single-slope rotary lasers cannot easily address. Its adjustable cone rotor head establishes a conical slope reference around the laser, making it particularly useful for athletic facilities, storage tank containment areas, and other projects requiring consistent radial drainage.

With standard and High Resolution versions available, contractors can choose between the broader ±4% slope range or finer 0.10% slope adjustments depending on project requirements.

The Alpha C also provides professional horizontal leveling, servo-motor self-leveling, a 2,000 ft working diameter with the included R9 receiver, machine-control compatibility, IP56 protection, and an 8-year warranty.

Common Applications

• Baseball Field Construction
• Baseball Field Grading
• Running Track Construction
• Track Corner Grading
• Infield "D" Zones
• Athletic Field Drainage
• Storage Tank Containment
• Tank Collection Areas
• Circular Drainage
• Radial Grading
• Site Preparation
• Earthwork
• Machine Control
• Precision Leveling
• General Construction

Why Buy From Titan Tools Direct?

When you purchase the Pro Shot Laser Alpha C Self-Leveling Laser Level from Titan Tools Direct, you're buying from a trusted supplier of professional construction lasers, surveying, grading, and machine-control equipment backed by knowledgeable product specialists.

• Authorized Pro Shot Laser Dealer
• Competitive Pricing
• Nationwide Shipping
• Expert Sales & Technical Support
• Trusted by Contractors, Grading Crews & Construction Professionals
• Customer Support Before & After the Sale

Questions?

Need help choosing between the standard Alpha C and Alpha C High Resolution model?

Call or Text Sales & Technical Support: 832-727-9353

Email: Sales@TitanToolsDirect.com

Our knowledgeable team is happy to assist with product selection, compatibility questions, accessories, availability, and technical support before and after your purchase.

Frequently Asked Questions (FAQ)

Q1: What makes the Pro Shot Alpha C different from a conventional rotary laser?

The Alpha C uses a specialized adjustable cone rotor head to project a conical sloping laser reference rather than only a conventional flat horizontal plane. It can also function as a precision laser level.

Q2: What is a conical slope laser used for?

A conical slope reference is useful when the grade needs to consistently rise or fall around a central point. Typical applications include baseball fields, running tracks, infield "D" zones, and storage tank containment areas.

Q3: What is the difference between 020-0020C and 020-0020CH?

The 020-0020C standard Alpha C provides a ±4% cone slope range in 0.25% increments. The 020-0020CH High Resolution Alpha C provides a ±1.7% range with finer 0.10% increments.

Q4: Which Alpha C model should I choose for maximum slope capability?

Choose the standard 020-0020C Alpha C if maximum cone slope range is the priority. It supports slopes up to ±4%.

Q5: Which model provides the finest slope adjustment?

The 020-0020CH High Resolution model provides the finer adjustment, allowing changes in 0.10% increments across its ±1.7% cone slope range.

Q6: Can the Alpha C also be used as a normal laser level?

Yes. In addition to its conical slope capabilities, the Alpha C can function as a precision self-leveling laser with specified horizontal accuracy of ±10 arc seconds.

Q7: What is the working range of the Alpha C?

When used with the included R9 receiver, the system provides a working range of up to 2,000 feet in diameter or 1,000 feet in radius.

Q8: Is the Alpha C self-leveling?

Yes. It uses servo motor self-leveling technology with a specified leveling range of ±5°.

Q9: Is the Alpha C compatible with machine control?

Yes. The supplied specifications identify the Alpha C as machine-control compatible.

Q10: What accuracy settings does the R9 receiver provide?

The R9 provides ±1.0 mm Ultra-Fine, ±1.6 mm Standard, and ±3.2 mm Coarse accuracy modes.

Q11: How long does the Alpha C operate on batteries?

The Alpha C provides up to 75 hours of operation using four alkaline C-cell batteries. An optional NiMH rechargeable battery kit provides up to 48 hours.

Q12: What warranty does the Alpha C include?

The Pro Shot Alpha C includes an 8-year manufacturer warranty.
