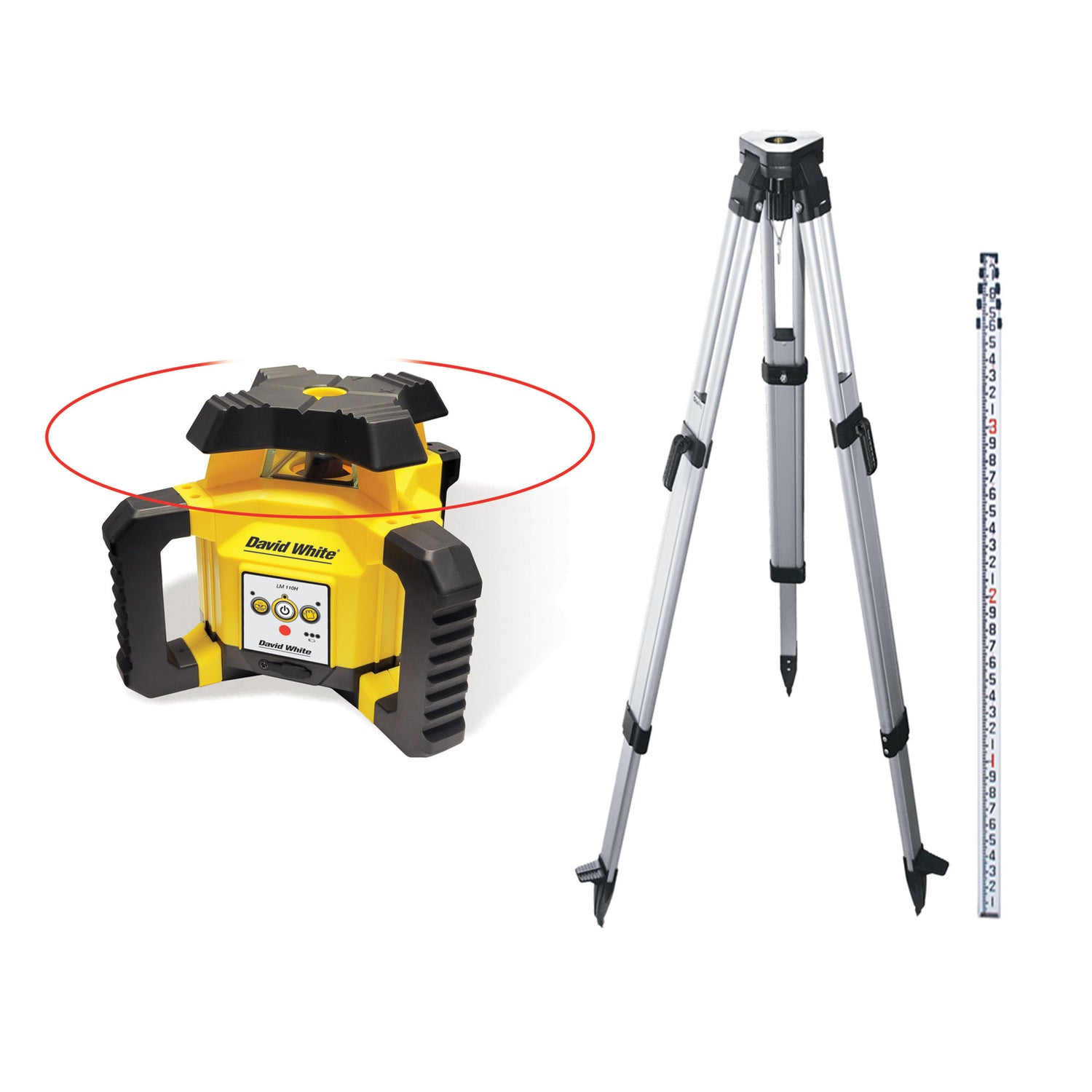

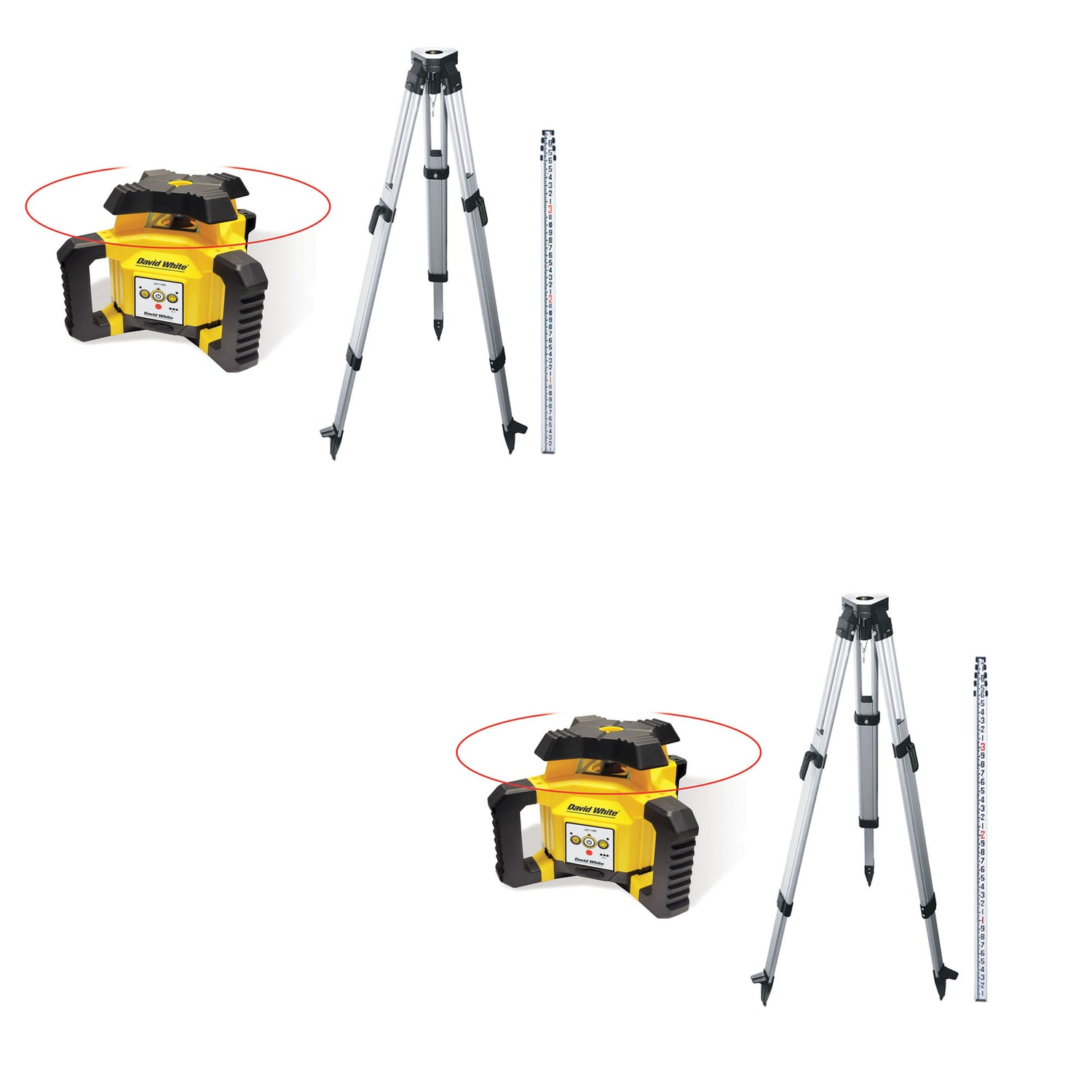

David White Horizontal / Vertical Rotary Laser Kit w/ Tripod and Grade Rod

Available Options:

• Tripod and 8ths Grade Rod: 47-LM130HVK-4C
• Tripod and 10ths Grade Rod: 47-LM130HVK-4T


The David White LM130HV Rotary Laser Kits offer horizontal and vertical leveling with dual-axis slope capability, ±1/8 in accuracy at 100 ft, and up to 2000 ft working range. Each kit includes a tripod, detector, and grade rod—choose between 8ths or 10ths rod formats based on your measurement preference.

Disclaimer: The tripod and grade rod shown in product images may vary slightly in appearance from what is included in the kit. Any variations are cosmetic only and do not affect functionality or performance.

Features:

• Supports both layout types with electronic self-leveling.
• ±5° slope capability with remote control.
• ±1/8 in at 100 ft (3 mm at 30 m).
• Up to 2000 ft (600 m) with detector.
• Alerts user if laser is disturbed or misaligned.
• Rotation speeds of 0, 300, 600 RPM and scan angles from 0° to 180°.
• IP65-rated for water and dust resistance; enclosed rotor housing.
• 7.4V / 2.6Ah Li-Ion battery with up to 25 hours runtime.

Specifications:

• Laser Type: Red Beam, 635–650 nm, Class 3R
• Accuracy: ±1/8 in at 100 ft
• Working Range: Up to 2000 ft with detector
• Leveling Type: Electronic self-leveling (±5°)
• Slope Capability: Dual-axis ±5° (with remote)
• Rotation Speeds: 0, 300, 600 RPM
• Scan Angles: 0°, 10°, 45°, 90°, 180°
• Battery Life: Up to 25 hours
• Environmental Rating: IP65 (Water/Dust Resistant)
• Operating Temp: -4°F to 122°F (-20°C to +50°C)
• Dimensions: 9.6 × 9.6 × 7.0 in
• Weight: 3.4 lb (1.54 kg)
