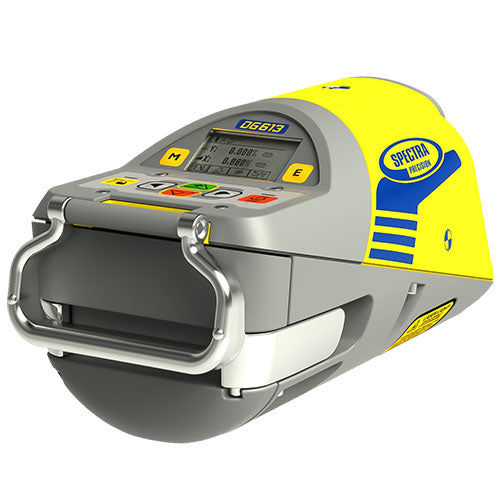

Spectra Precision DG613 Pipe Laser

Model Number: DG613

Features:
  • Compact and Powerful.
  • Self-leveling range of -12% to +40% over the entire grade range
  • The DG613 works over a distance of 150m (500ft) providing full operation in a single set-up between manholes.
  • The Spectra Precision® DG613 Pipe Laser is built for efficiency, accuracy and reliability when laying pipes.
  • The length of the DG613 has been reduced to make it easier to set up the lasers into tight inverts in the manhole.
  • Compact length allows easy set-up even in tight inverts
  • Large, bright, graphical user interface makes the screen easier to see and use when in or out of the pipe.
  • The same graphical user interface can be seen on the remote – what you see on the laser you see on the remote.
  • Cross axis compensation provides a quicker more accurate set-up as the laser does not have to be level in the pipe – place it in the pipe, it levels, you work.
  • Bright visible beam works up to 150 m (500 ft)
  • IP68 protection (dust and waterproof)
  • RC803 remote works via radio 130 m (430 ft) or infra-red 150 m (500 ft) for both “over-the-top” set-up and in the pipe/trench set-up.
  • The DG613 has advanced functions that make setting up and using it easy and accurate
Applications:
  • Installation of gravity flow sanitary pipelines
  • Storm sewer pipelines
  • Pipe jacking
  • Tunnel boring
  • Can be used in a pipe or in over the top set-ups
Specifications:
  • Grade range: -12% to +40%
  • Self-leveling range: Complete grade range (no rough leveling required) also automatic compensated in the cross axis
  • Line range: 20° ±1°
  • Line center: Yes
  • Menu with variable settings: Yes
  • Line set/check / Line alert: Yes
  • Accuracy: ± 1/16 in @ 100 ft, (1.5 mm/30 m); 10”
  • Temperature compensation: Yes
  • Operating range: 500 ft (150 m)
  • Spot Align, Spot Match,Spot Lok, Spot Search with SF803: No
  • ST802/ST805 Transporter: No
  • Color of Laser Beam: DG613 - Red
  • Waterproof: IP68 - Continuous submersion at 10 ft (3 m)
  • Laser classification / output: 3A/3R / 4.5–5 mW, optional 2 / <1 mW
  • Weight: 8.8 lb (3.98 kg)
  • Length x Diameter: 9.8 in (25 cm) x 5.3 in (13,5 cm)
  • Battery type and life: NiMH / 40 hrs (DG613G: 30 hrs) with daily setup at 20° C
  • Battery pack: Sealed (NiMH), Sealed removable (alkaline)
  • Warranty: 5 Years
  • Wireless remote specifications
  • Functionality: RC803 -Radio-/IR-Remote Control offers all Laser functions
  • Through the pipe range: 500 ft (150 m)
  • Front / Over the top range: 425 ft (130 m)
Components:
  • DG613 Laser
  • 1248 trivet plate 8 inch (200mm)
  • RC803 IR/Radio Remote Control
  • 956 target
  • Power: NiHM Recharge
