Spectra Precision LR60 Display Receiver – Advanced Grade Control for Excavators & Dozers

The Spectra Precision LR60 is a high-performance machine control laser receiver designed to boost productivity and accuracy on the job site. Whether you're trenching, grading, or excavating, the LR60 offers exceptional performance and reliability in tough conditions. With multiple configurations available, it's ideal for contractors looking for flexibility and precision in machine-mounted grade control.

Available Models:

• LR60 – Standard model (non-wireless) with NiMH rechargeable batteries

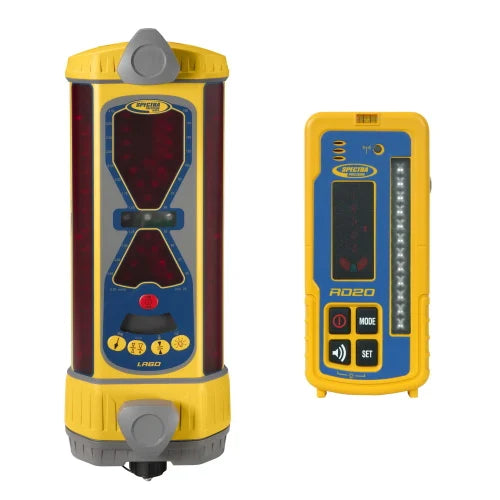

• LR60W – Wireless model with NiMH batteries and RD20 in-cab remote display

Key Features:

• Patented Angle Compensation Technology automatically adjusts for the dipper arm’s position—ensuring accurate grade readings even when the arm is extended or retracted up to 30°.

• Built-in Plumb Indicator delivers fast, on-the-go grade verification without needing additional tools.

• Extra-Large Vertical Reception (8.75 in / 222 mm) allows for use on large excavators and increased accuracy over a wider range.

• Center On-Grade Mode provides equal grade information above and below the target grade—perfect for use on dozers, graders, scrapers, and box blades.

• Wireless Connectivity on LR60W and LR60-MM models allows real-time data transmission to the RD20 remote display for enhanced in-cab visibility and control.

Precision & Accuracy Settings:

Grading Mode (Center On-Grade):

• Setup: ±5 mm (0.20 in)

• Fine: ±10 mm (0.40 in)

• Standard: ±20 mm (0.80 in)

• Wide: ±40 mm (1.6 in)

Excavating Mode (Offset On-Grade):

• Setup: ±6 mm (0.25 in)

• Fine: ±12 mm (0.50 in)

• Standard: ±25 mm (1.0 in)

• Wide: ±50 mm (2.0 in)

ACE (Angle Compensation) Mode:

• Fine: ±12 mm (0.50 in)

• Standard: ±25 mm (1.0 in)

Plumb-Swing Accuracy:

• Standard: ±12 mm (0.50 in)

• ACE Mode: ±25 mm (1.0 in)

Power & Battery Life:

• Alkaline Batteries: 45 hrs (bright), 75 hrs (dim)

• NiMH Batteries: 40 hrs (bright), 50 hrs (dim)

• Wireless w/ Remote Active: 25–35 hrs depending on brightness setting

Built to Last:

• Durable construction built for harsh jobsite conditions

• Backed by a 2-Year Manufacturer’s Warranty

Boost jobsite efficiency and accuracy with the Spectra Precision LR60 receiver—engineered for performance, reliability, and flexibility in every dig.
