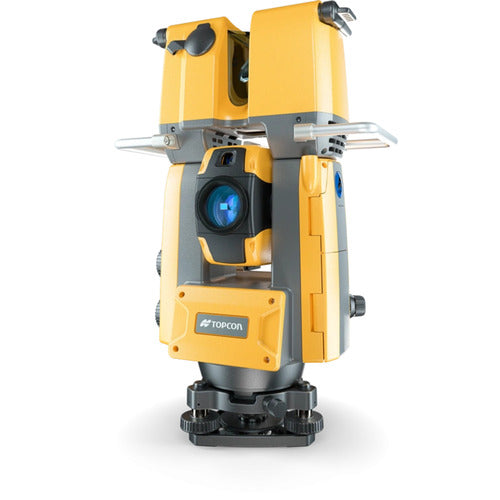

Topcon GTL-1203 Laser Scanner Total Station Kit (3 Configurations Available)

Manufacturer: Topcon Positioning Systems

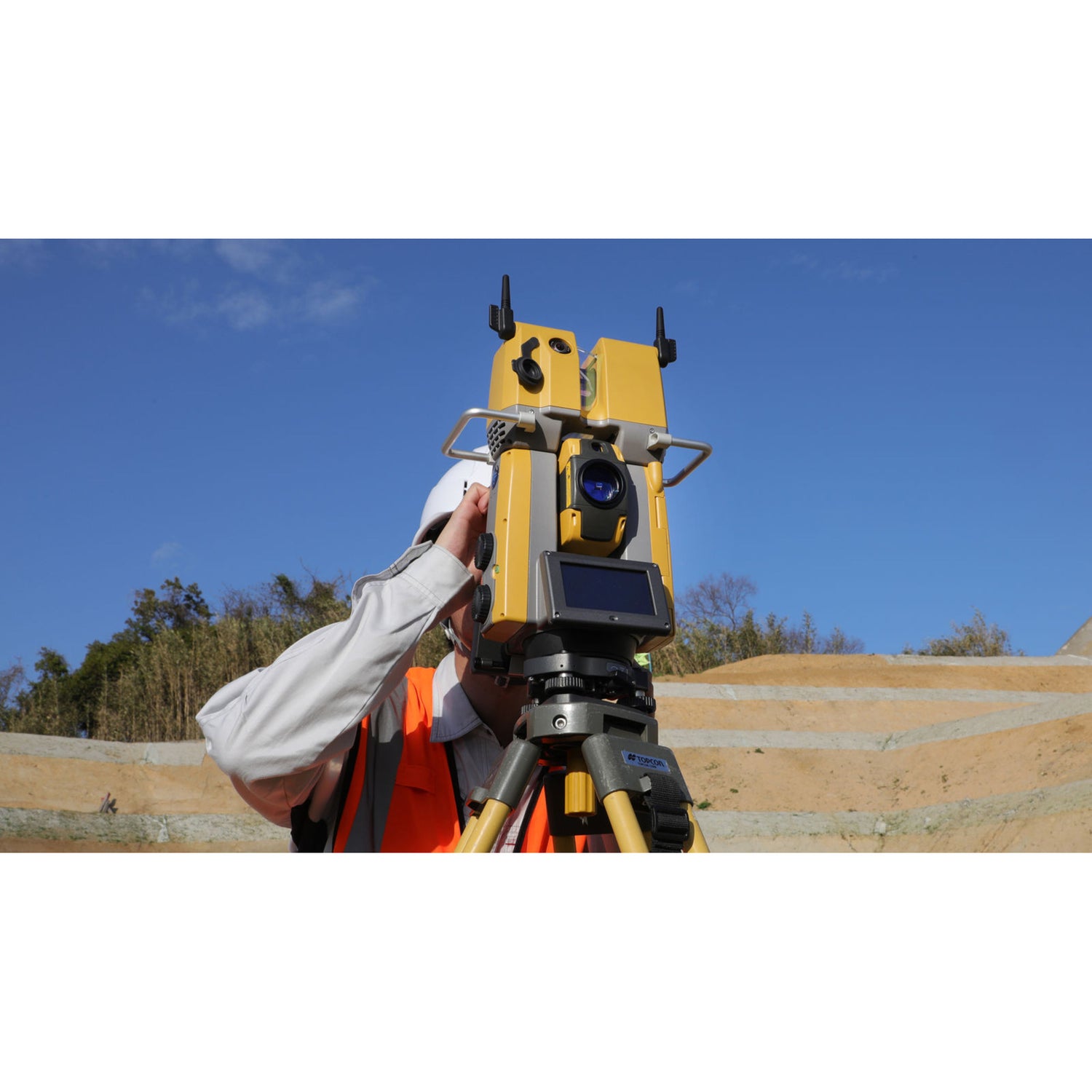

The Topcon GTL-1203 is an advanced laser scanner and robotic total station that combines high-speed 3D laser scanning with precise robotic surveying in a single instrument. Designed specifically for Building Information Modeling (BIM), construction layout, quality assurance, and as-built verification, the GTL-1203 dramatically improves productivity by allowing professionals to perform digital layout and reality capture without switching equipment.

Unlike traditional workflows requiring separate total stations and laser scanners, the GTL-1203 captures survey control and dense point clouds in one setup, eliminating time-consuming point cloud registration and reducing post-processing work.

Whether you're performing construction layout, BIM verification, quality control, as-built documentation, clash detection, or infrastructure scanning, the GTL-1203 provides one of the fastest and most accurate workflows available.

Available Configurations

Choose the configuration that best fits your workflow:

Compare All GTL-1203 Configurations

Which GTL-1203 Configuration Should I Choose?

1055318-01 — GTL-1203 with MAGNET Layout

The MAGNET Layout package is specifically designed for construction layout professionals working from Building Information Models (BIM).

This package allows users to accurately position building components directly from digital design files while simultaneously collecting high-density point clouds for quality control and as-built verification.

Best For

• Building Information Modeling (BIM)
• Construction Layout
• Digital Stakeout
• Structural Steel Layout
• Concrete Layout
• Mechanical, Electrical & Plumbing (MEP)
• Construction QA/QC
• As-Built Verification

Recommended for:

• General Contractors
• Construction Managers
• Layout Specialists
• BIM Coordinators
• Commercial Builders

1055317-01 — GTL-1203 with MAGNET Field

The MAGNET Field package is designed for professional surveyors and engineers who need a complete field surveying solution.

This configuration combines robotic total station functionality with high-speed laser scanning, making it ideal for surveying, engineering, and infrastructure projects.

Best For

• Boundary Surveys
• Topographic Surveys
• Construction Surveying
• Utility Mapping
• Site Development
• Civil Engineering
• Infrastructure Projects
• Reality Capture

Recommended for:

• Land Surveyors
• Engineering Firms
• Municipalities
• Utility Companies
• Geospatial Professionals

1056306-01 — GTL-1203 Hardware Only

This package includes the Topcon GTL-1203 hardware only and is intended for customers who already own compatible MAGNET software and a Topcon field controller.

This option allows existing Topcon customers to expand their fleet while avoiding duplicate software purchases.

Best For

• Existing Topcon Customers
• Fleet Expansion
• Equipment Replacement
• Organizations with Existing MAGNET Licenses

Recommended for:

• Survey Firms
• Construction Companies
• Government Agencies
• Existing Topcon Users

Feature Comparison

Which Configuration Do We Recommend?

Choose 1055318-01 if your primary work involves:

• BIM Layout
• Construction Stakeout
• Digital Construction
• Building Verification
• As-Built Documentation
• Construction Quality Assurance

Choose 1055317-01 if your primary work involves:

• Boundary Surveys
• Topographic Surveys
• Construction Surveys
• Engineering Projects
• Utility Mapping
• General Surveying

Choose 1056306-01 if:

• You already own a compatible Topcon controller.
• You already have a MAGNET software license.
• You're replacing an existing GTL-1200 or GTL-1203.
• You're expanding an existing Topcon fleet.
• You do not need additional software licenses.

Ideal Applications

The GTL-1203 is designed for:

• Building Information Modeling (BIM)
• Construction Layout
• Digital Stakeout
• Reality Capture
• As-Built Documentation
• Quality Assurance (QA/QC)
• Clash Detection
• Structural Verification
• Industrial Construction
• Infrastructure Projects
• Mechanical, Electrical & Plumbing (MEP)
• Steel Construction
• Concrete Layout
• Facility Documentation
• Renovation Projects

Key Features

Robotic Total Station & Laser Scanner in One Instrument

The GTL-1203 combines:

• Robotic Total Station
• High-Speed Laser Scanner
• Digital Imaging System

One instrument performs both precision layout and reality capture without changing equipment.

Perform Layout and Scanning from a Single Setup

Complete two critical jobsite tasks simultaneously:

• Digital construction layout
• High-density 3D laser scanning

This dramatically reduces setup time while improving productivity.

Instant Point Cloud Registration

Unlike conventional laser scanners that require extensive post-processing, the GTL-1203 captures point clouds directly on survey control.

Benefits include:

• No manual registration targets
• Faster office processing
• Higher accuracy
• Reduced field time

Built for BIM Workflows

Designed specifically for modern BIM projects.

Supports:

• BIM Verification
• Construction QA/QC
• Clash Detection
• As-Built Documentation
• Progress Monitoring
• Digital Twins

High-Speed 3D Laser Scanning

Capture detailed point clouds quickly with:

• 200,000 points per second
• Full dome scanning
• High-resolution imaging
• Tailored scan densities

Collect only the data you need, reducing processing time while maintaining accuracy.

Seamless ClearEdge3D Integration

Point clouds integrate directly into ClearEdge3D software for:

• Automated QA workflows
• As-built verification
• BIM comparison
• Construction validation

High-Resolution Imaging

Integrated cameras provide:

• 5 MP Telephoto Imaging
• 5 MP Wide/Panorama Imaging

Allowing realistic visualization alongside point cloud data.

Advanced Robotic Total Station Performance

Provides:

• Long-range EDM
• Automatic target tracking
• Robotic layout
• Survey-grade accuracy

Ideal for construction staking and engineering surveys.

Rugged Jobsite Construction

Designed for demanding construction environments.

Features include:

• IP54 environmental protection
• Operating temperature:
  • 14°F to 122°F (-10°C to 50°C)
• Heavy-duty construction

Wireless Connectivity

Integrated communications include:

• Bluetooth®
• WLAN (Wi-Fi)
• USB
• RS232 Serial

Technical Specifications

Laser Scanner

Imaging

Total Station

Communications

• Bluetooth® Class 1
• WLAN (Wi-Fi)
• USB 2.0
• RS232 Serial

Data Storage

• 1 GB Internal Memory
• SD Card Support
• USB Storage

Environmental

What's Included

Depending on the selected configuration:

• Topcon GTL-1203 Laser Scanner Total Station
• Selected Software Package (if applicable)
• Battery
• Charger
• Carrying Case
• Standard Accessories
• Manufacturer Documentation

Controller and software depend on the configuration selected above.

Annual Calibration & Maintenance

Topcon recommends annual calibration to maintain peak accuracy and performance.

Annual service includes:

• Complete inspection
• System cleaning
• Performance verification
• Calibration
• Certificate of Calibration

Firmware updates and minor software improvements are provided electronically when available.

Please note:

• Annual calibration does not extend the manufacturer's warranty.
• Shipping to and from the service center is the owner's responsibility.
• Loaner equipment is not provided during service.
• Additional repair costs outside warranty will be quoted before work begins.

Why Choose the Topcon GTL-1203?

The GTL-1203 is one of the few instruments that truly combines robotic surveying and laser scanning into a single workflow.

Instead of carrying both a robotic total station and a terrestrial laser scanner, construction professionals can complete layout, scanning, and quality verification using one instrument.

The result is:

• Faster fieldwork
• Reduced office processing
• Higher accuracy
• Improved BIM integration
• Lower project costs

For contractors, surveyors, and BIM professionals, the GTL-1203 delivers one of the industry's most efficient digital construction workflows.

Common Applications

• BIM Layout
• Construction Stakeout
• Laser Scanning
• Reality Capture
• Building Documentation
• As-Built Surveys
• QA/QC Verification
• Clash Detection
• Industrial Construction
• Steel Layout
• Concrete Layout
• Infrastructure Surveying
• Digital Twin Creation
• Facility Management

Frequently Asked Questions

What makes the GTL-1203 different from a traditional robotic total station?

The GTL-1203 combines a robotic total station and a high-speed laser scanner into one instrument, allowing you to perform layout and reality capture during the same setup.

Can the GTL-1203 create point clouds?

Yes. The integrated laser scanner captures high-resolution 3D point clouds at speeds up to 200,000 points per second.

Is this suitable for BIM projects?

Absolutely. The GTL-1203 was specifically developed for Building Information Modeling (BIM) workflows, including construction verification, QA/QC, and as-built documentation.

Which software option should I choose?

• MAGNET Layout – Best for construction layout and stakeout.
• MAGNET Field – Best for surveying, data collection, and field operations.
• No Software – Ideal if you already own compatible Topcon software and controller hardware.

Does the GTL-1203 require annual calibration?

Yes. Topcon recommends annual calibration to maintain the highest level of measurement accuracy and scanning performance.
