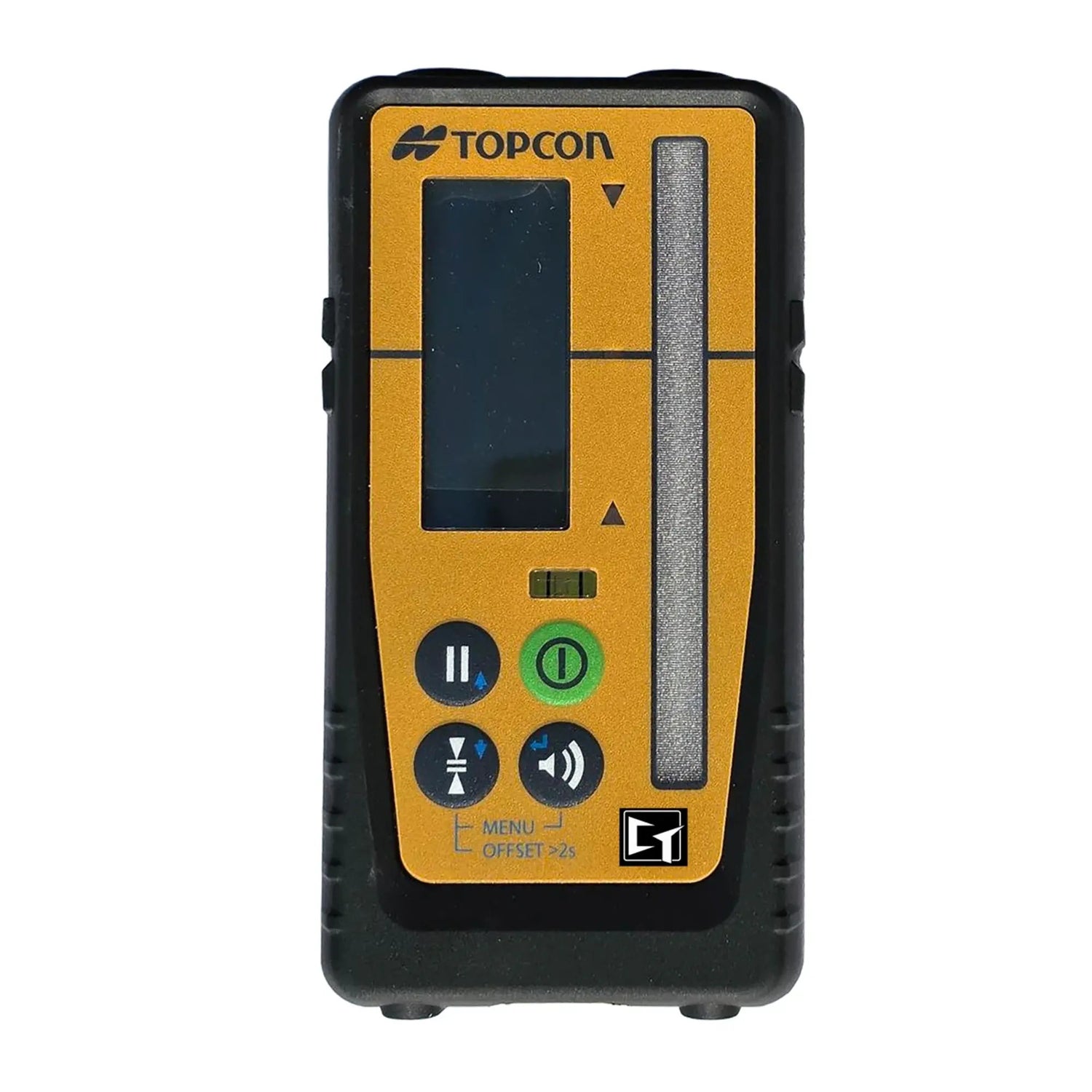

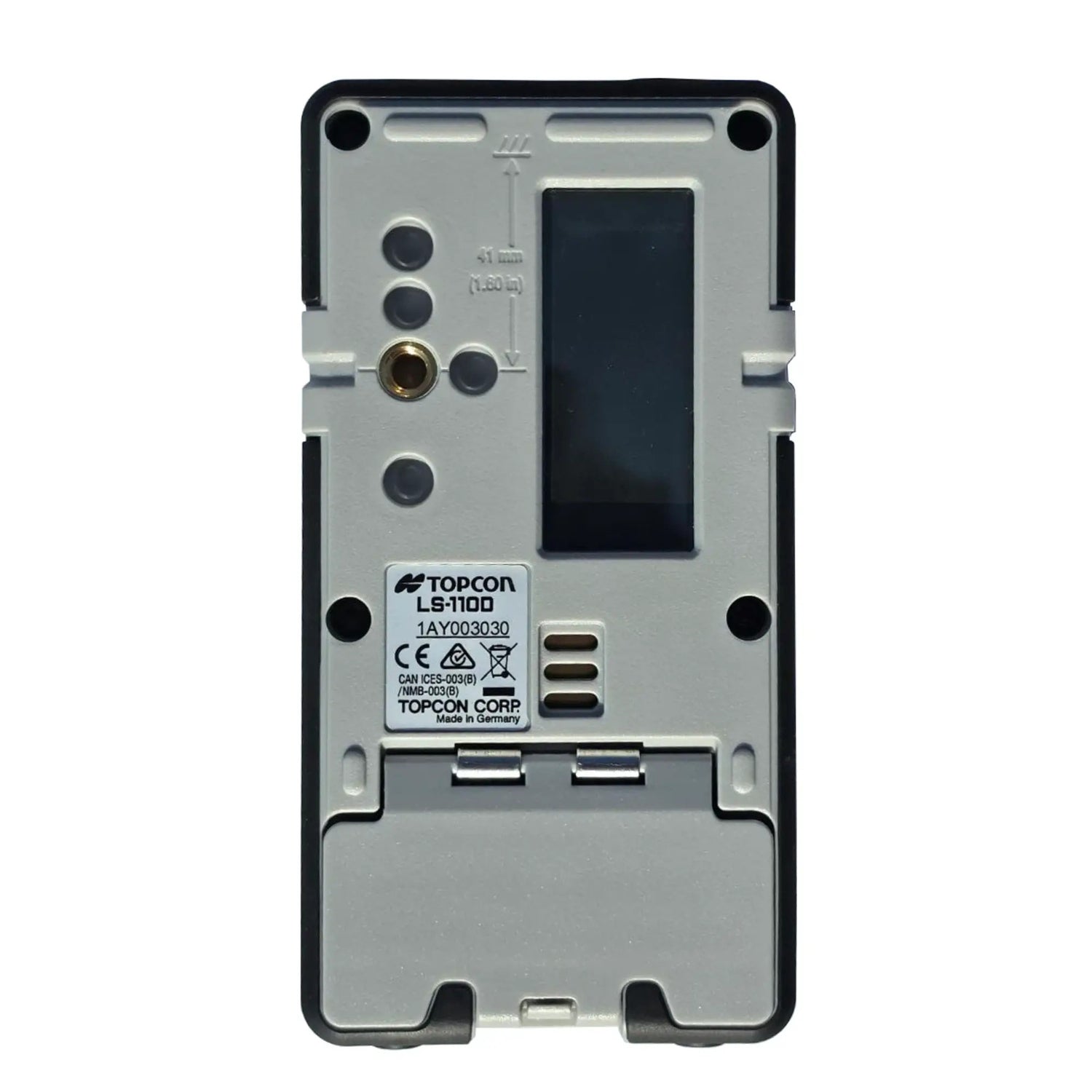

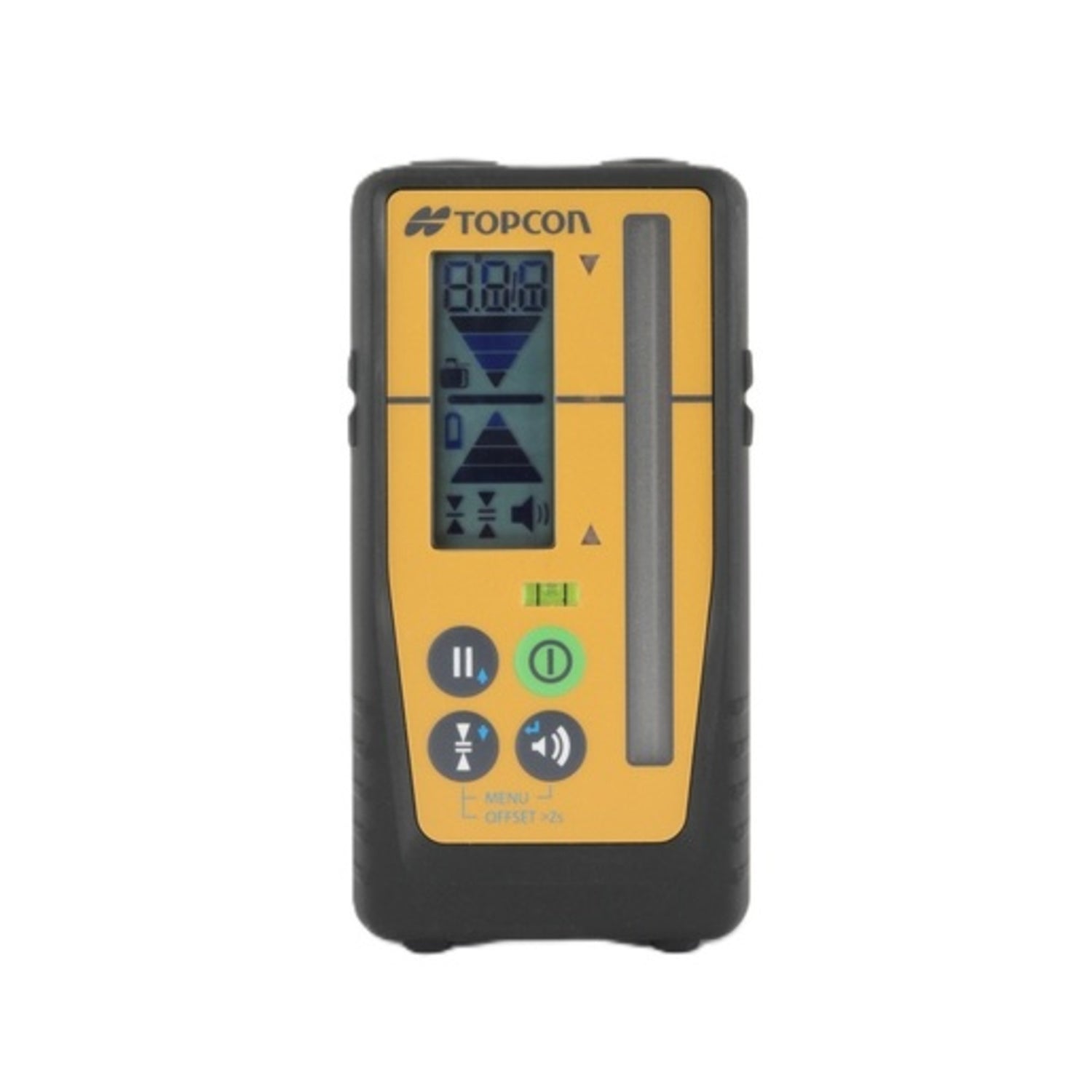

Topcon LS-110D Digital Laser Receiver

Available Options:

• 1089925-01: LS-110D Digital Laser Receiver without Holder
• 1091205-01: LS-110D Digital Laser Receiver Kit with Holder 110

Manufacturer: Topcon

Availability Notice: Most items are in stock and ready to ship. However, certain products may experience temporary delays or extended lead times due to ongoing industry-wide supply chain or manufacturing constraints. If your order is affected by a backorder or extended lead time, our team will contact you with the latest availability information. We appreciate your patience and understanding.

The Topcon LS-110D Digital Laser Receiver is a high-precision laser receiver designed to improve the speed and accuracy of elevation and vertical alignment work on construction, grading, earthwork, drainage, and site preparation projects. Featuring a digital readout that displays the exact distance from grade, the LS-110D gives operators more information than a conventional laser receiver with basic directional indicators.

The LS-110D features a large 90 mm (3.5 in.) vertical detection range, a 70 mm (2.7 in.) digital readout range, and five selectable on-grade resolutions ranging from a precise ±0.5 mm (±0.02 in.) to ±10 mm (±0.50 in.). This allows operators to adjust receiver sensitivity based on the precision requirements of the job.

Large front and rear LCD displays provide 9 channels of grade information, while orange, green, and red LED indicators provide additional visual guidance. The receiver also includes selectable buzzer levels, a Hold function, integrated bubble tube, strobe light suppression, and two built-in magnets for vertical applications.

Built for demanding jobsite conditions, the LS-110D carries an IP67 dust and water protection rating and operates from -20°C to 50°C. It is an ideal receiver for compatible Topcon rotating lasers, including the RL-SV2S, RL-H4C, and RL-200 Series.

Ideal Applications

The Topcon LS-110D is designed for:

• Site Preparation
• Earthwork
• Excavation
• Grading
• Drainage Installation
• Elevation Control
• Vertical Alignment
• Grade Checking
• Steel Erection
• Foundation Work
• Concrete Work
• General Construction
• Landscaping
• Exterior Leveling
• Construction Layout

Available Package Options

Choose between the standalone LS-110D receiver or a kit configuration with the Holder 110.

Compare Package Options

Which Package Should I Choose?

1089925-01 – LS-110D Digital Laser Receiver without Holder

Choose this option if you need the LS-110D receiver by itself and already have the appropriate mounting solution or are replacing an existing receiver.

Recommended For:

• Replacement Receiver Purchases
• Users with Existing Holders
• Vertical Magnetic Applications
• Construction Crews with Existing Accessories

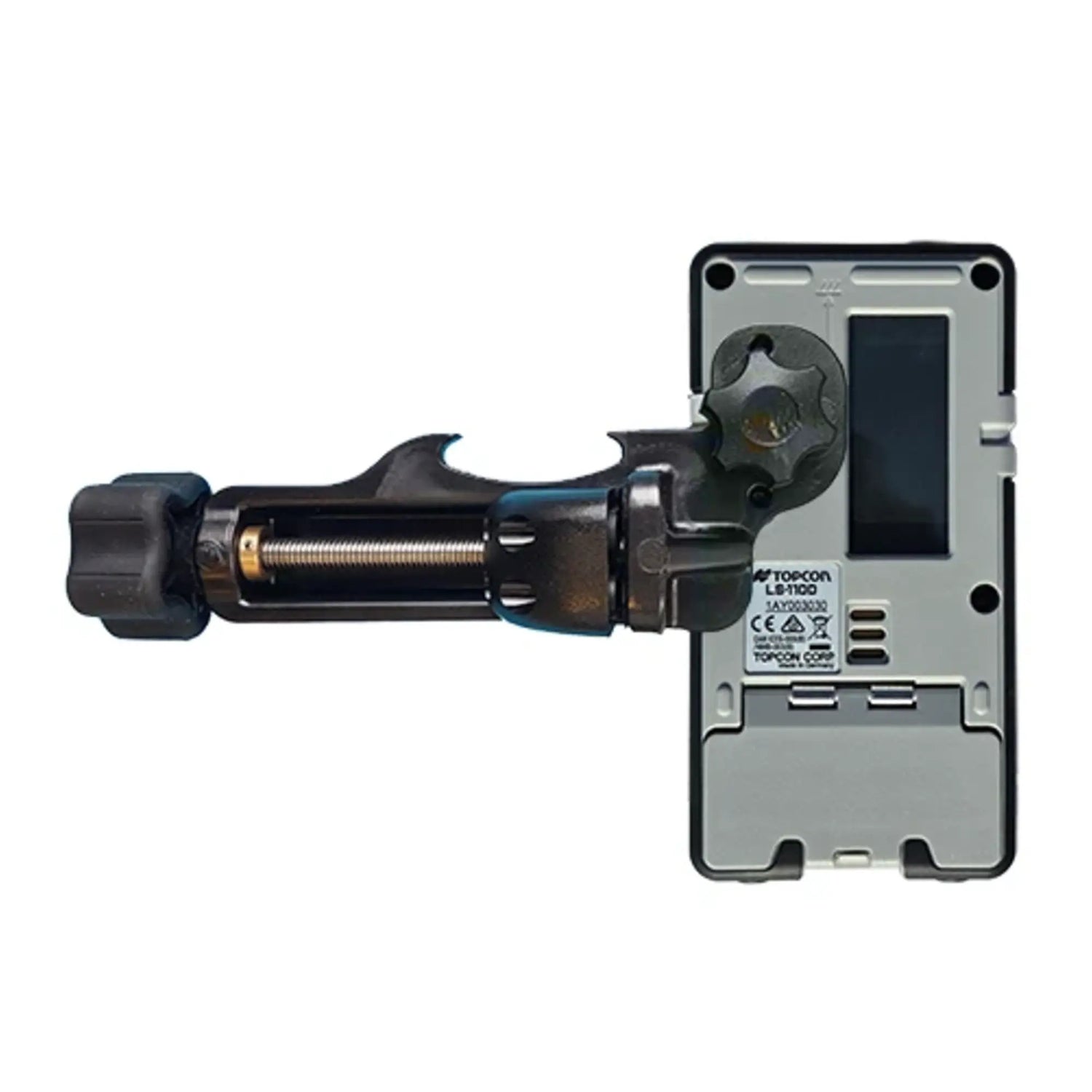

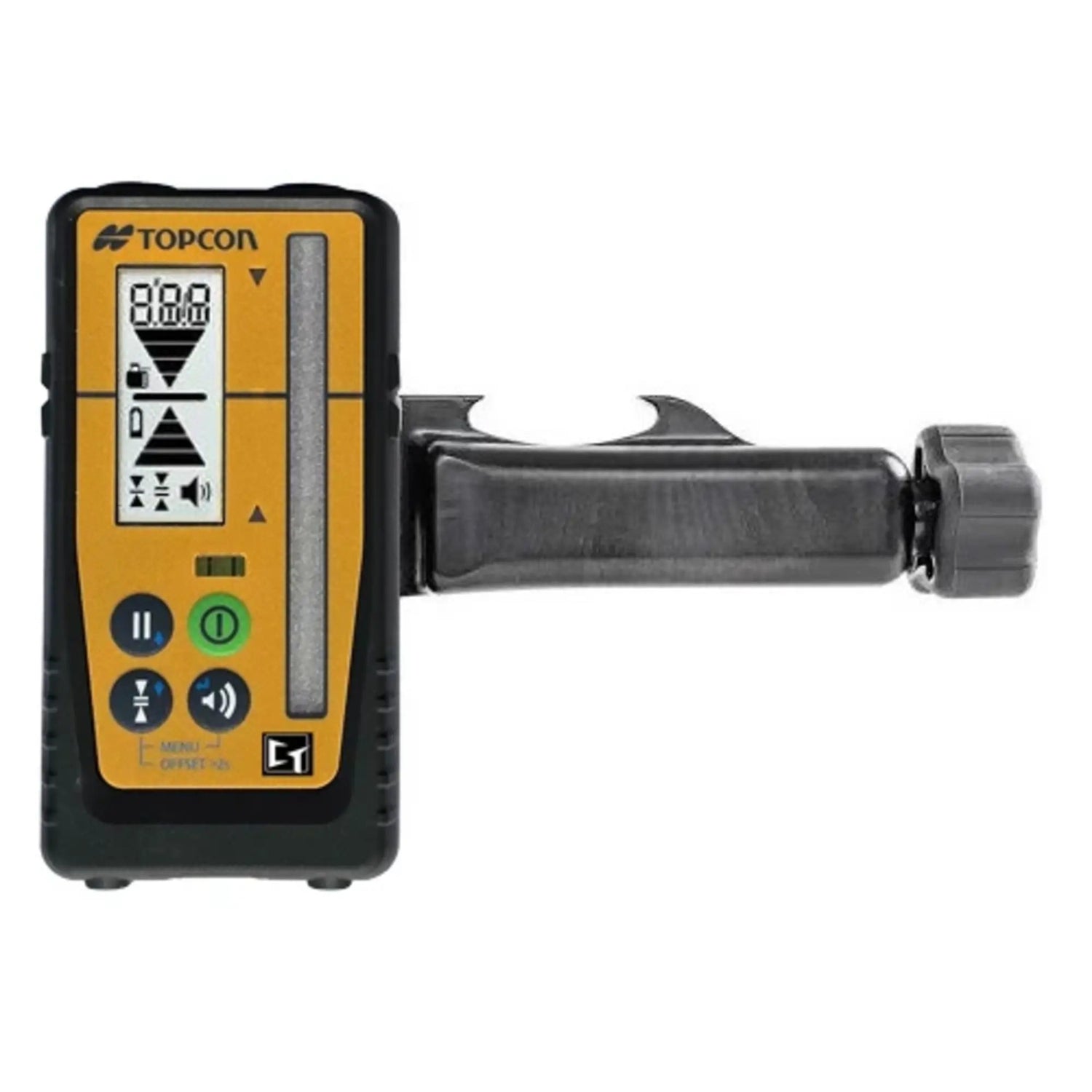

1091205-01 – LS-110D Digital Laser Receiver Kit with Holder 110

Choose this package if you need the LS-110D along with the Holder 110 for a more complete receiver setup.

Recommended For:

• New Laser Receiver Setups
• Grade Rod Applications
• Site Preparation
• Excavation & Grading
• General Construction

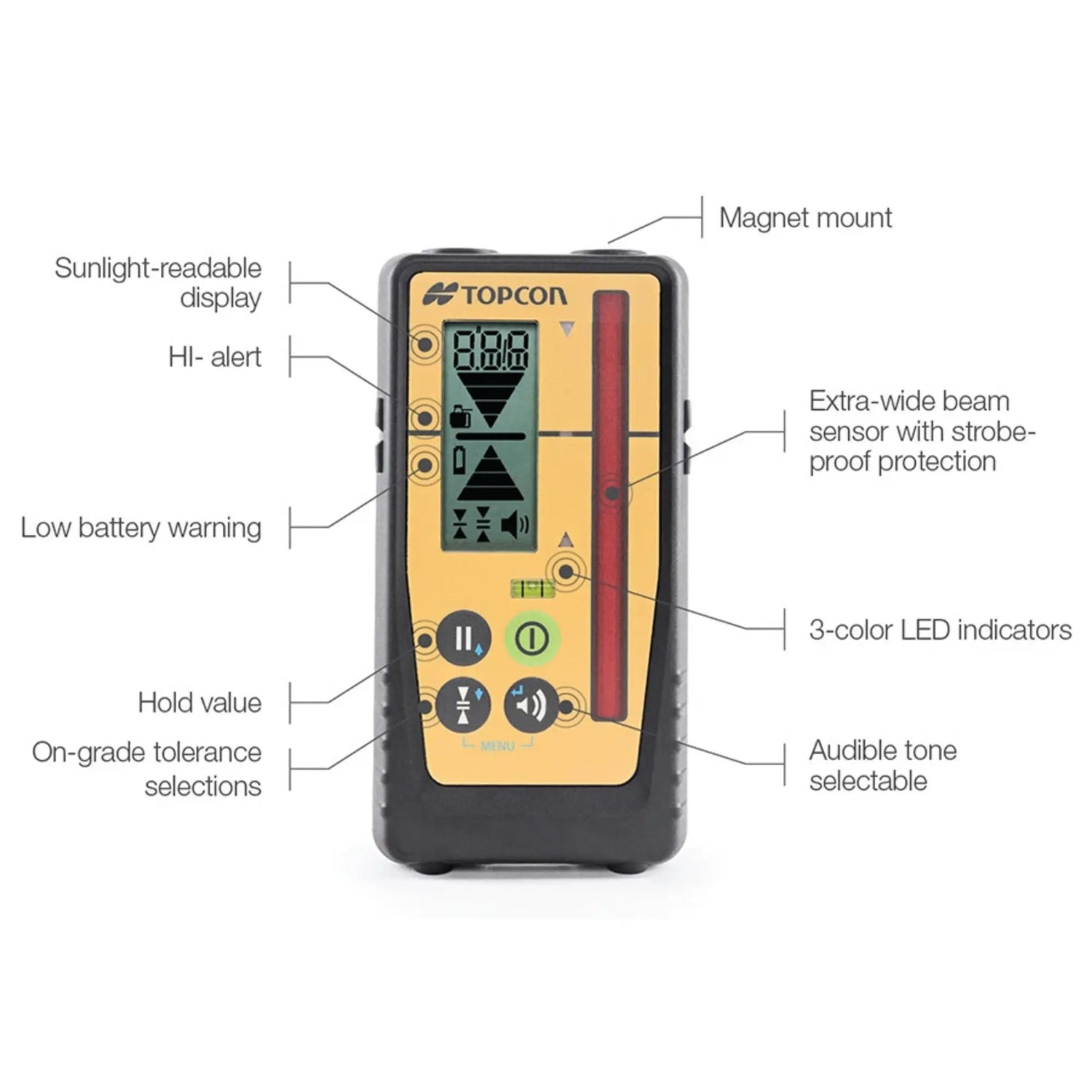

Key Features

Digital Distance-to-Grade Readout

The LS-110D digitally displays the distance to on-grade, giving operators a precise measurement instead of relying solely on arrows or audible signals.

Units can be displayed in millimeters, centimeters, inches, or fractional inches, allowing operators to work in their preferred measurement format.

Five Selectable Accuracy Resolutions

The LS-110D provides five selectable on-grade resolutions:

• ±0.5 mm (±0.02 in.)
• ±1.0 mm (±0.05 in.)
• ±2.0 mm (±0.10 in.)
• ±5.0 mm (±0.20 in.)
• ±10.0 mm (±0.50 in.)

This flexibility allows the receiver to be configured for high-precision work or broader grade-checking applications.

90 mm Extra-Wide Beam Detection

A 90 mm (3.5 in.) vertical detection range provides a large target for quickly locating the rotating laser beam.

The vertical detection range extends from -30 mm to +60 mm (-1.1 in. to +2.3 in.).

70 mm Digital Readout Range

The digital LCD readout covers 70 mm (2.7 in.), ranging from -20 mm to +50 mm (-0.7 in. to +1.9 in.).

This provides operators with precise distance-to-grade information across a wide working area.

Front & Rear LCD Displays

Large LCD displays are positioned on both sides of the receiver, allowing grade information to be viewed from either direction.

The displays provide 9 channels of grade information for fast and intuitive elevation control.

Three-Color LED Grade Indicators

Orange, green, and red LED indicators provide additional visual grade information.

The LED indicators can be switched on or off depending on operator preference and working conditions.

Strobe Light Suppression

Built-in strobe light suppression helps prevent interference from jobsite strobe lights, improving receiver reliability in environments where flashing warning lights and construction equipment are present.

Horizontal & Vertical Operation

The LS-110D supports both horizontal and vertical applications. Its horizontal detecting range is ±45°, while two integrated magnets on the top of the receiver allow it to attach directly to suitable steel surfaces.

This makes the receiver useful for applications such as steel erection and vertical alignment in addition to standard elevation work.

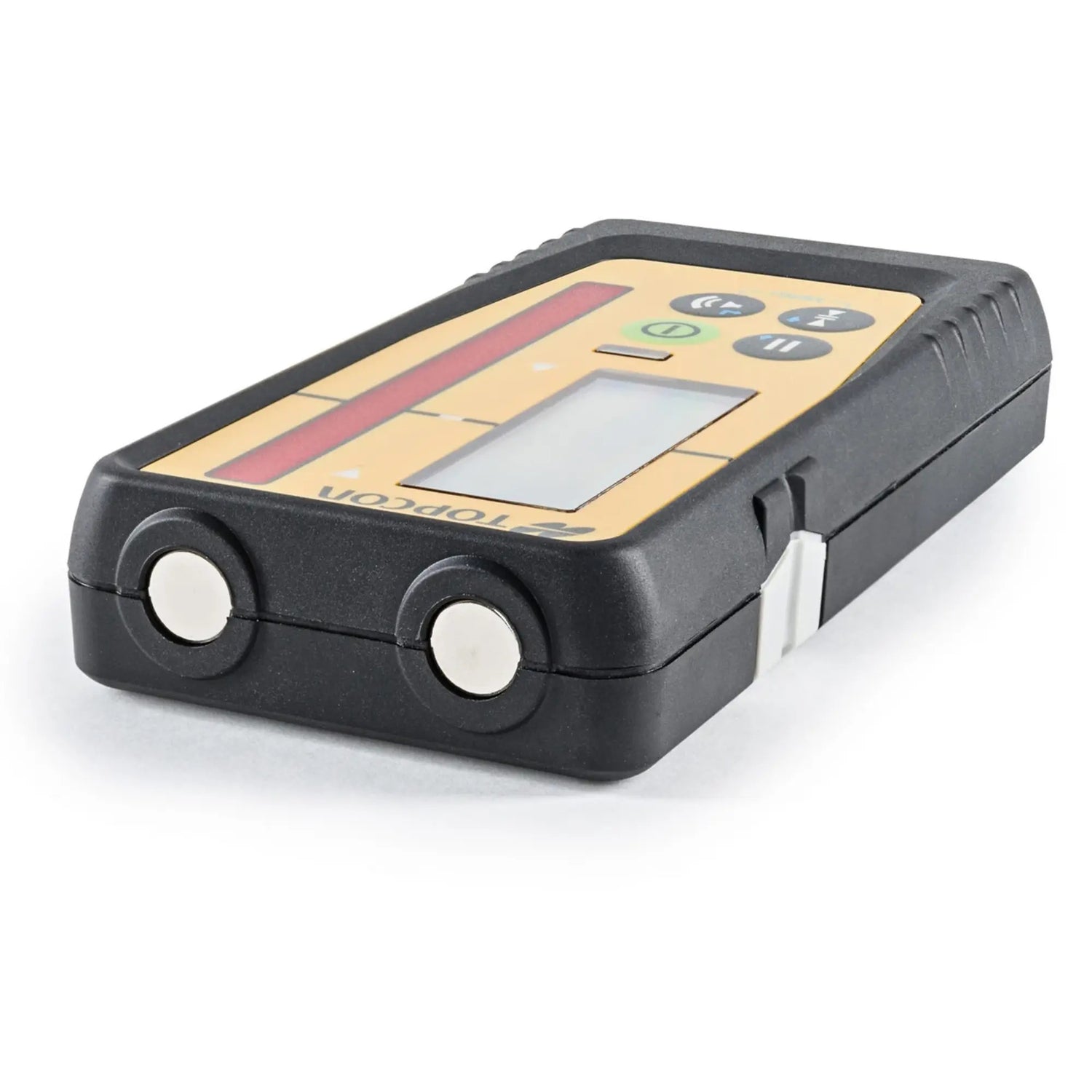

Built-In Magnetic Mounting

Two round magnets are integrated into the top of the LS-110D, providing a convenient mounting option for compatible steel surfaces.

Hold Function

The Hold button locks the displayed measurement, allowing operators to remove or reposition the receiver and conveniently read the captured elevation result.

Selectable Audible Guidance

The built-in buzzer provides three selectable settings:

• Loud
• Low
• Off

Operators can select the setting that best matches jobsite conditions.

Built-In Bubble Tube

An integrated bubble tube helps operators maintain proper receiver alignment during measurement and grade-checking applications.

Up to 800 m Working Diameter

When used with specified compatible Topcon rotating lasers, the LS-110D supports a working diameter of up to 800 meters.

Up to 45 Hours of Battery Life

The receiver operates on a single AA/LR6 dry-cell battery and provides up to 45 hours of operation with an alkaline battery.

An LCD battery-level indicator helps operators monitor remaining battery capacity.

Automatic Shut-Off

The LS-110D automatically powers down after approximately 30 minutes of inactivity to help conserve battery life.

IP67 Environmental Protection

An IP67 rating provides protection against dust and water, helping the LS-110D withstand demanding outdoor construction environments.

Technical Specifications

Compatible Topcon Rotating Lasers

The LS-110D is designed for use with compatible Topcon rotating laser systems, including:

• Topcon RL-H4C
• Topcon RL-SV2S
• Topcon RL-200 Series

Compatibility should be confirmed when pairing the LS-110D with other laser models.

What's Included

1089925-01 – LS-110D Digital Laser Receiver without Holder

• (1) Topcon LS-110D Digital Laser Receiver

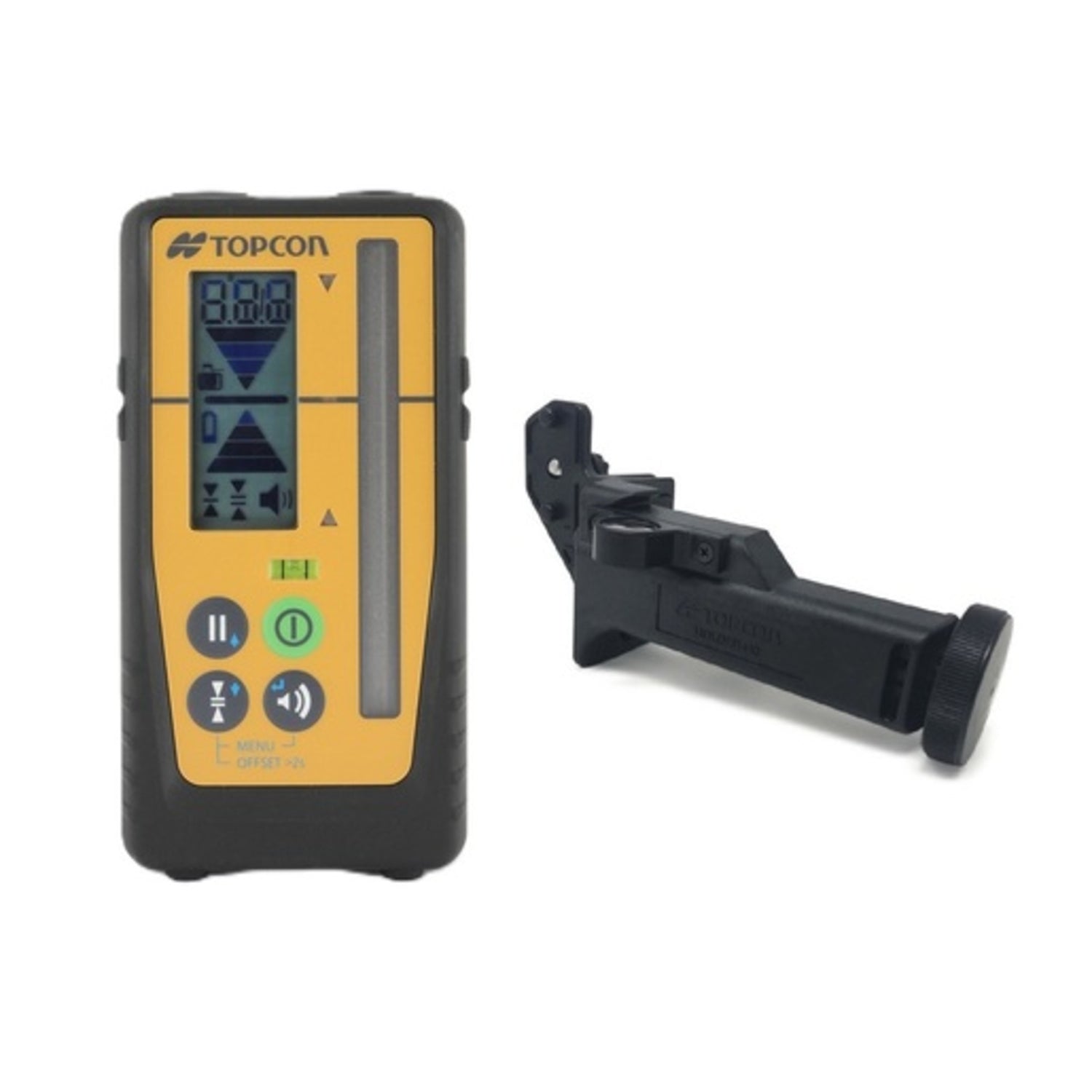

1091205-01 – LS-110D Digital Laser Receiver Kit with Holder 110

• (1) Topcon LS-110D Digital Laser Receiver
• (1) Topcon Holder 110

Why Choose the Topcon LS-110D?

The Topcon LS-110D combines a wide detection area with precise digital distance-to-grade information, giving construction professionals a faster and more informative way to perform elevation and alignment work.

With five selectable accuracy levels, front and rear LCD displays, three-color LEDs, strobe light suppression, integrated magnets, and both horizontal and vertical operation, the LS-110D is versatile enough for applications ranging from precision elevation control to excavation grade checking and steel erection.

Its IP67-rated construction, up to 45-hour battery life, and compatibility with professional Topcon rotating lasers make it a durable and practical receiver for everyday construction and grading work.

Common Applications

• Elevation Control
• Grade Checking
• Excavation
• Earthwork
• Site Preparation
• Drainage
• Foundation Work
• Concrete Construction
• Steel Erection
• Vertical Alignment
• Road Construction
• Landscaping
• General Construction
• Exterior Leveling

Why Buy From Titan Tools Direct?

When you purchase the Topcon LS-110D Digital Laser Receiver from Titan Tools Direct, you're buying from a trusted supplier of professional construction laser, surveying, and grade-control equipment backed by knowledgeable product specialists.

• Authorized Topcon Dealer
• Competitive Pricing
• Fast Nationwide Shipping
• Expert Sales & Technical Support
• Trusted by Contractors, Surveyors & Construction Professionals
• Customer Support Before & After the Sale

Questions?

Need help selecting the right LS-110D package or confirming compatibility with your Topcon rotating laser?

Call or Text Sales & Technical Support: 832-727-9353

Email: Sales@TitanToolsDirect.com

Our knowledgeable team is happy to assist with product selection, compatibility questions, accessories, availability, and technical support before and after your purchase.

Frequently Asked Questions (FAQ)

Q1: What is the Topcon LS-110D used for?

The LS-110D is a digital laser receiver used for elevation control, grade checking, vertical alignment, site preparation, earthwork, excavation, drainage, steel erection, and general construction.

Q2: What is the difference between 1089925-01 and 1091205-01?

1089925-01 includes the LS-110D digital laser receiver without a holder. 1091205-01 is the LS-110D kit and includes the Holder 110.

Q3: Does the LS-110D show the actual distance from grade?

Yes. The LS-110D provides a digital distance-to-grade readout rather than only indicating whether the receiver is above, below, or on grade.

Q4: What measurement units can the LS-110D display?

The receiver can display measurements in millimeters, centimeters, inches, and fractional inches.

Q5: How accurate is the Topcon LS-110D?

The receiver provides five selectable on-grade resolutions ranging from ±0.5 mm (±0.02 in.) to ±10 mm (±0.50 in.).

Q6: What is the detection range of the LS-110D?

The LS-110D has a 90 mm (3.5 in.) vertical detection range and a 70 mm (2.7 in.) digital LCD readout range.

Q7: Which Topcon lasers work with the LS-110D?

The supplied specifications identify the Topcon RL-H4C, RL-SV2S, and RL-200 Series for operation with the LS-110D.

Q8: Can the LS-110D be used vertically?

Yes. The receiver supports vertical applications and has two built-in magnets on top for mounting to suitable steel surfaces.

Q9: Is the LS-110D waterproof?

The LS-110D carries an IP67 dust and water protection rating under IEC 60529, making it suitable for demanding outdoor jobsite conditions.

Q10: What battery does the LS-110D use?

The receiver operates on one AA/LR6 dry-cell battery and provides up to approximately 45 hours of operation with an alkaline battery.

Q11: Does the LS-110D work around construction strobe lights?

The LS-110D features strobe light suppression, which helps reject interference caused by strobe light exposure on active jobsites.

Q12: Does the LS-110D have displays on both sides?

Yes. The LS-110D has front and rear LCD displays, allowing operators to view grade information from either side of the receiver.
