Topcon RL-H5A Self-Leveling Laser PS.DB Kit with LS-80X Receiver, 13 ft Grade Rod & Tripod

Available Options:

• 1035258-01: Kit with 10ths Grade Rod
• 1035259-01: Kit with Inches Grade Rod

Manufacturer: Topcon

Availability Notice: Most items are in stock and ready to ship. However, certain products may experience temporary delays or extended lead times due to ongoing industry-wide supply chain or manufacturing constraints. If your order is affected by a backorder or extended lead time, our team will contact you with the latest availability information. We appreciate your patience and understanding.

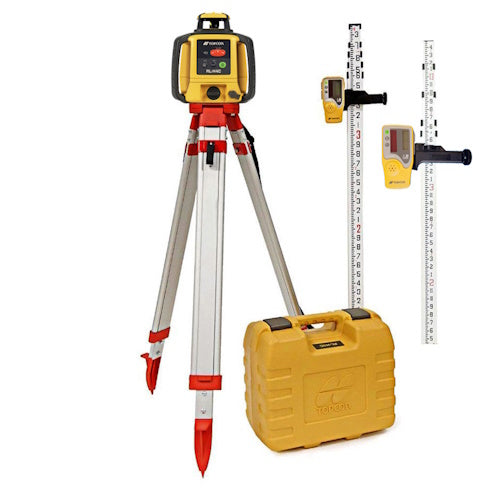

The Topcon RL-H5A Self-Leveling Laser PS.DB Kit is a professional horizontal rotary laser package designed for grading, leveling, excavation, site preparation, foundations, agricultural work, and other large-area construction applications. The kit combines the RL-H5A rotary laser with the Topcon LS-80X receiver, sensor holder, tripod, 13 ft aluminum grade rod, chargers, and carrying case.

The RL-H5A features ±10 arc-second horizontal accuracy, equivalent to approximately 1.5 mm at 30 m, along with a long operating range of up to 800 m diameter when used with a compatible receiver. Its electronic self-leveling system is designed to maintain a stable laser plane even in jobsite environments where vibration may make conventional pendulum systems less reliable.

The laser also supports single-axis manual slope adjustment up to ±5°, allowing it to handle basic gradient applications in addition to standard horizontal leveling. A height-alert function warns the operator if the instrument is disturbed or tilted enough to affect the established elevation.

Built for demanding field environments, the RL-H5A carries an IP66 dust and water resistance rating, while the included LS-80X receiver provides dual LCD displays, fine and normal accuracy settings, audible guidance, and up to 120 hours of battery life with alkaline batteries.

Ideal Applications

The Topcon RL-H5A kit is designed for:

• Site Preparation
• Excavation
• Grading
• Building Foundations
• Pile Foundations
• Concrete Work
• Earthwork
• Drainage
• Agricultural Leveling
• Farmland Leveling
• Large Construction Sites
• Elevation Control
• Basic Single-Axis Slope Work
• General Construction
• Landscaping

Available Package Options

Choose the kit based on the grade rod graduation format used by your crew.

Compare Package Options

Which Package Should I Choose?

1035258-01 – Kit with 10ths Grade Rod

Choose this version if your team works primarily with decimal-foot elevations and prefers a tenths-style grade rod for grading, excavation, sitework, and surveying-related applications.

Recommended For:

• Site Contractors
• Excavation Crews
• Grading Contractors
• Survey Crews
• Civil Construction
• Foundation Work
• Earthwork

1035259-01 – Kit with Inches Grade Rod

Choose this version if your crew prefers inch-based measurements for construction leveling and elevation work.

Recommended For:

• General Contractors
• Concrete Crews
• Building Contractors
• Landscaping Crews
• Foundation Contractors
• Construction Leveling

Key Features

High-Accuracy Horizontal Leveling

The RL-H5A provides ±10 arc-second horizontal accuracy, approximately 1.5 mm at 30 meters, supporting precise elevation control across large construction areas.

Up to 800 m Operating Diameter

When used with the appropriate laser receiver, the RL-H5A supports an operating diameter of approximately 2 to 800 meters, making it suitable for large jobsites, grading projects, agricultural work, and foundation layout.

Electronic Self-Leveling

The RL-H5A uses an internal electronic self-leveling mechanism designed to maintain a stable laser plane even in environments affected by vibration.

This can improve reliability on active construction sites where equipment movement and ground vibration are common.

±5° Self-Leveling Range

The laser automatically levels within a range of ±5°, helping simplify setup and reduce manual adjustment.

Manual Single-Axis Slope

The RL-H5A can be manually adjusted for slope work up to ±5° when installed on a level surface.

This allows the unit to handle applications such as drainage and basic gradient work in addition to standard horizontal leveling.

Height Alert Function

A height-alert safety feature warns the operator if the laser has been disturbed or tilted enough to change the established elevation.

This helps reduce the risk of continuing work from an incorrect reference height.

600 RPM Rotation Speed

The laser operates at 600 RPM, providing a consistent rotating beam for use with compatible receivers across the jobsite.

Rugged IP66 Construction

The RL-H5A is rated IP66, providing strong protection against dust and water exposure.

It is designed for demanding construction environments and can withstand sudden rain and other challenging jobsite conditions.

Large Carry Handle

A large integrated handle makes the laser easier to pick up and carry, including when operators are wearing work gloves.

Simple Controls

The RL-H5A uses a straightforward button layout intended to make setup and operation quick and easy in the field.

Topcon Environmental Testing

The RL-H5A is designed to withstand demanding construction use and has undergone testing for vibration, drops, high and low temperatures, repeatability, laser endurance, and rotating-head durability.

LS-80X Dual LCD Receiver

The included LS-80X receiver features LCD displays on both sides, allowing operators to view grade information from either direction.

Fine & Normal Receiver Accuracy

The LS-80X provides two accuracy modes:

• High Precision: ±1.0 mm
• Normal Precision: ±2.0 mm

This allows the receiver to be adjusted according to jobsite accuracy requirements.

Nine Arrow Display Positions

The LS-80X provides 9 arrow display positions to help operators quickly determine whether they are above, below, or on grade.

Audible Guidance

The receiver's speaker can be set to:

• Loud
• Low
• Off

This provides audible grade guidance while allowing the operator to adjust sound output for different work environments.

Up to 120-Hour Receiver Battery Life

The LS-80X provides up to 120 hours of operation with alkaline batteries.

Please note that alkaline batteries are not included with Topcon products due to shipping restrictions.

Technical Specifications

RL-H5A Rotary Laser

LS-80X Receiver

Battery Notice

Due to interstate and international shipping constraints, Topcon products do not include alkaline batteries.

The LS-80X receiver requires 2 AA batteries. Any other alkaline batteries required for operation should be purchased separately.

What's Included

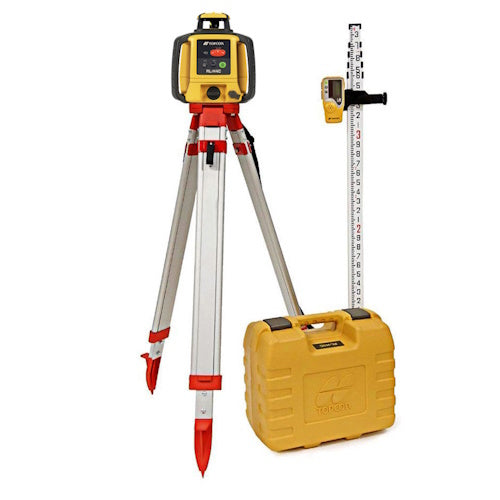

1035258-01 – Kit with 10ths Grade Rod

• (1) Topcon RL-H5A Rotary Laser
• (1) Topcon LS-80X Receiver
• (1) Sensor Holder

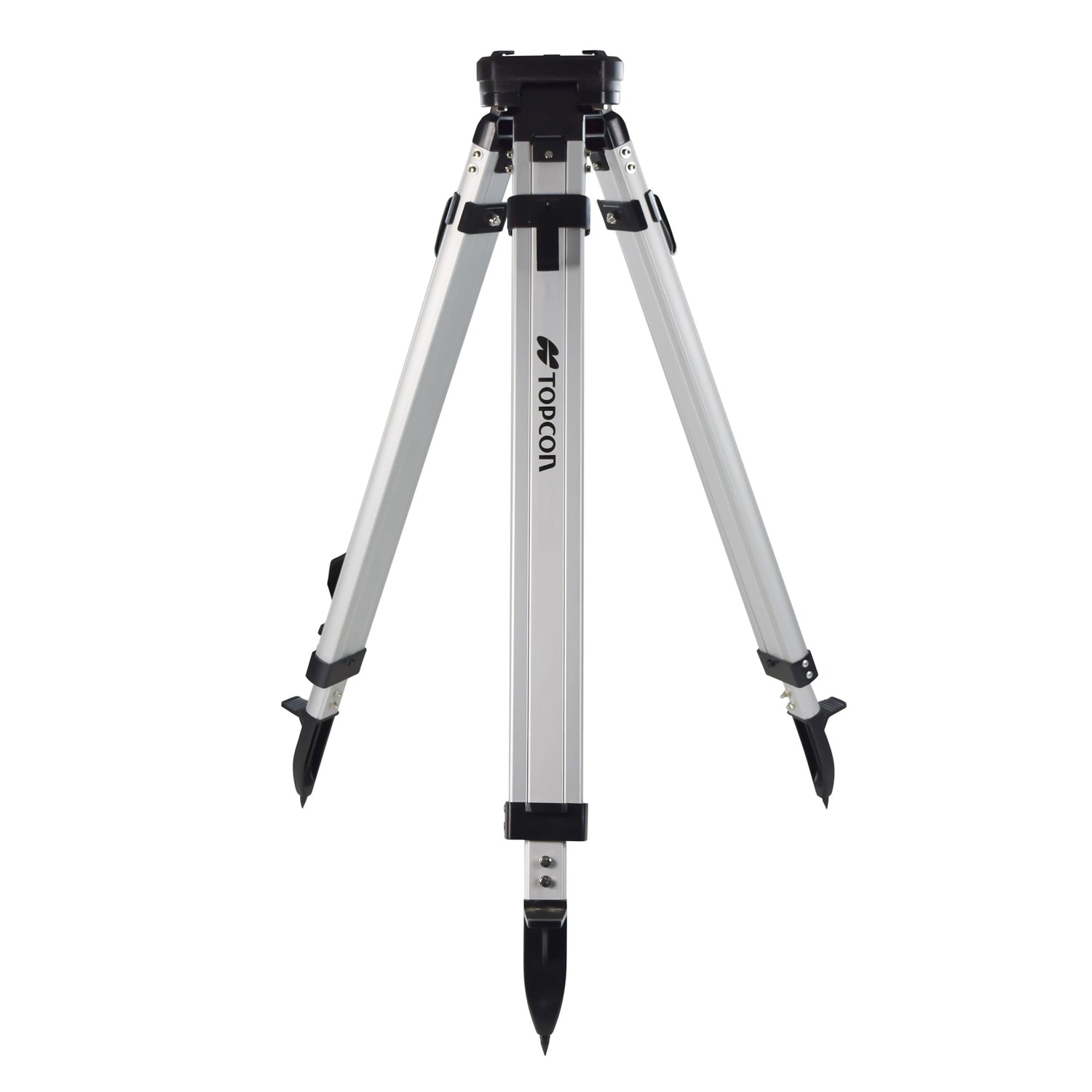

• (1) Tripod

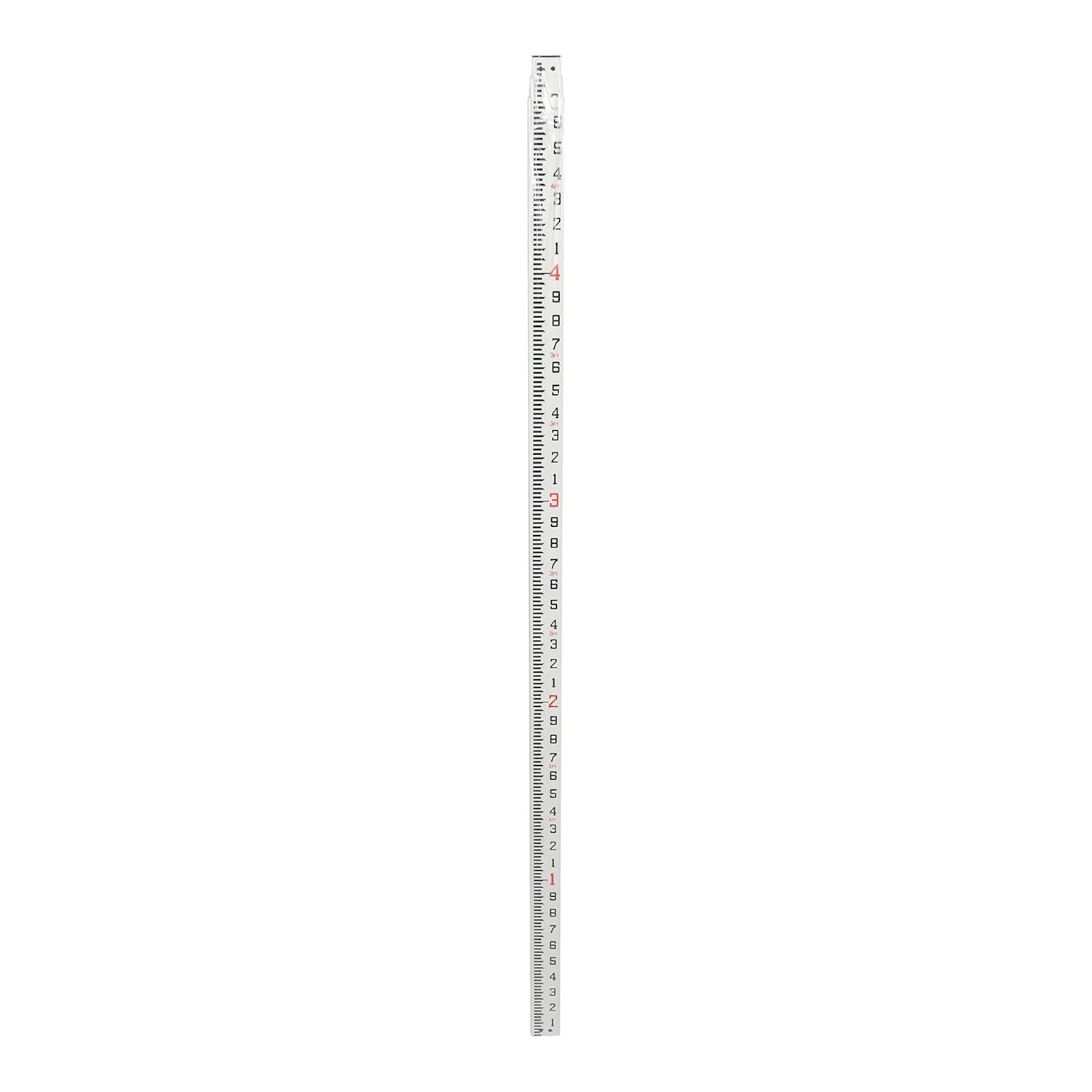

• (1) 13 ft Aluminum Grade Rod – Tenths
• Chargers

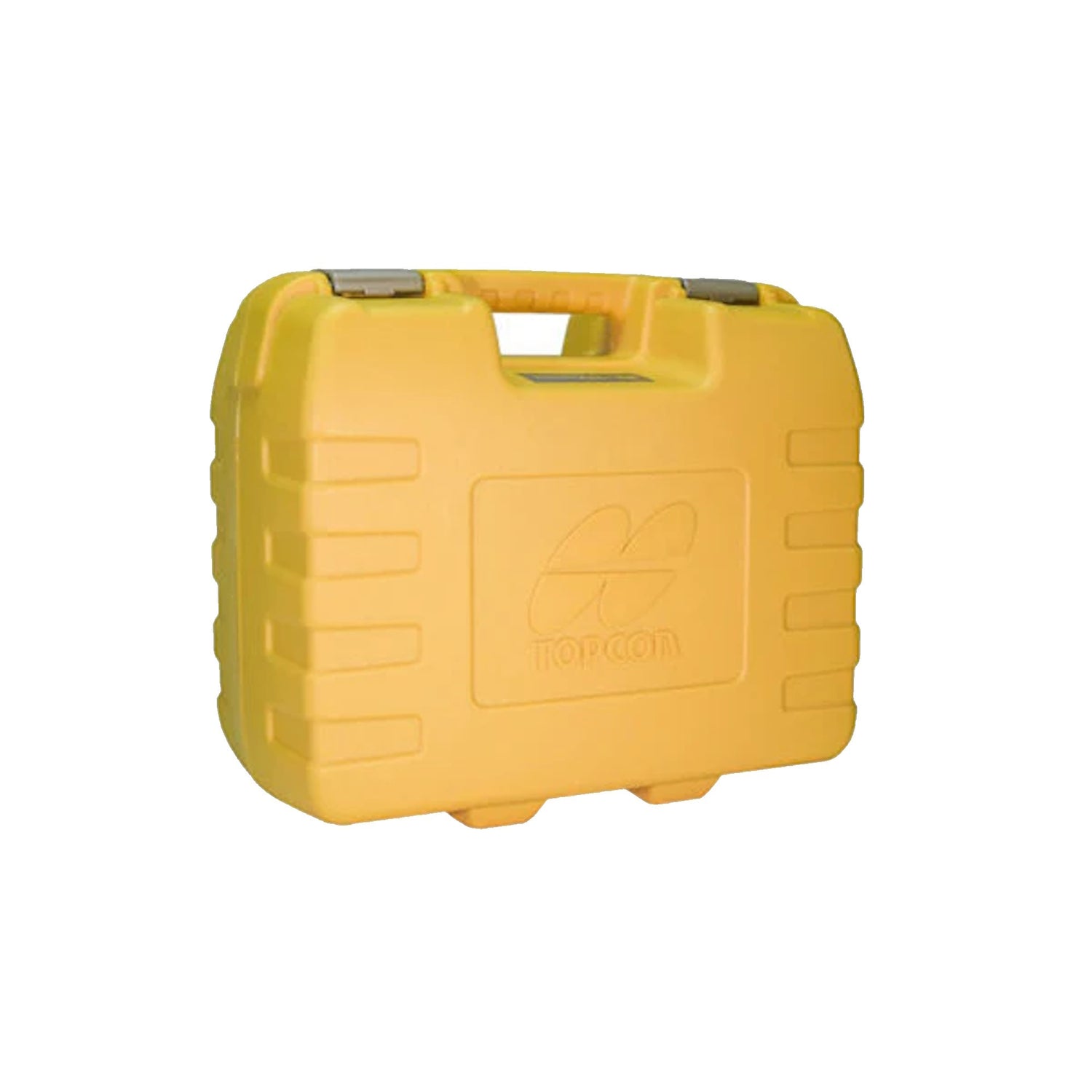

• Carry Case

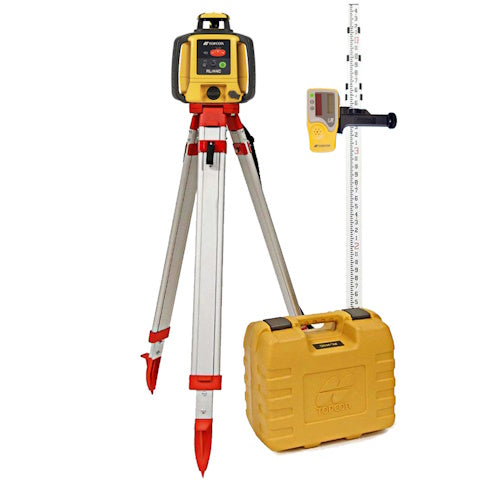

1035259-01 – Kit with Inches Grade Rod

• (1) Topcon RL-H5A Rotary Laser
• (1) Topcon LS-80X Receiver
• (1) Sensor Holder
• (1) Tripod

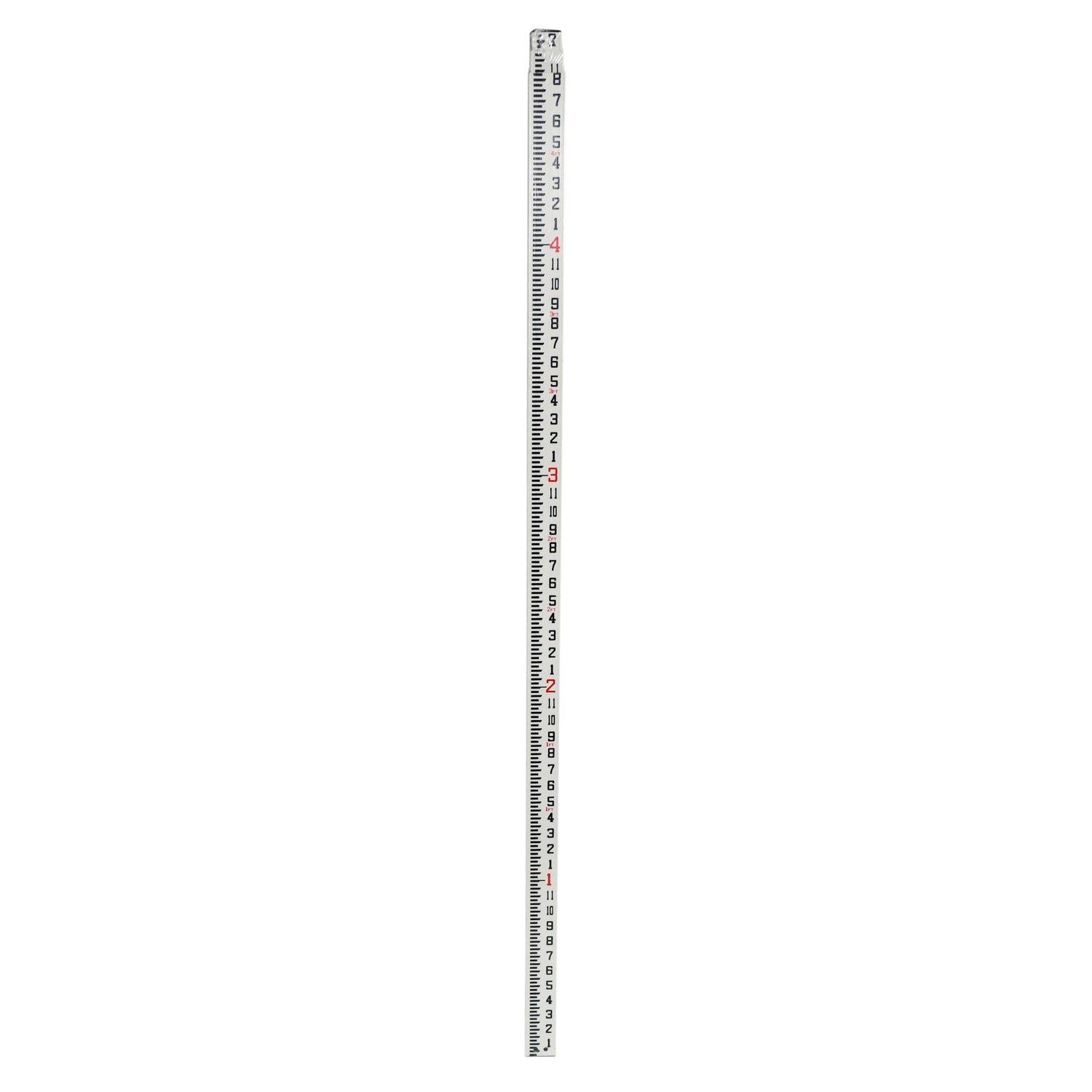

• (1) 13 ft Aluminum Grade Rod – Inches
• Chargers
• Carry Case

Alkaline batteries are not included.

Why Choose the Topcon RL-H5A Kit?

The Topcon RL-H5A kit provides a complete construction leveling setup for contractors who need reliable horizontal elevation control across large jobsites. Its combination of long-range operation, ±10 arc-second accuracy, electronic self-leveling, single-axis slope capability, and IP66 protection makes it well suited for demanding everyday construction work.

The included LS-80X receiver adds dual LCD displays, selectable precision, audible grade indication, and a long operating time, while the tripod and 13 ft aluminum grade rod make the package ready for a wide range of grading and leveling applications.

With both tenths and inches grade rod configurations available, contractors can choose the kit that best matches their established field measurement workflow.

Common Applications

• Site Leveling
• Excavation
• Grading
• Building Foundations
• Pile Foundations
• Concrete Work
• Earthwork
• Drainage
• Agricultural Leveling
• Road Construction
• Landscaping
• Elevation Control
• Large Construction Sites
• General Construction
• Single-Axis Slope Work

Why Buy From Titan Tools Direct?

When you purchase the Topcon RL-H5A Self-Leveling Laser PS.DB Kit from Titan Tools Direct, you're buying from a trusted supplier of professional construction lasers, surveying equipment, and grade-control tools backed by knowledgeable product specialists.

• Authorized Topcon Dealer
• Competitive Pricing
• Fast Nationwide Shipping
• Expert Sales & Technical Support
• Trusted by Contractors, Surveyors & Construction Professionals
• Customer Support Before & After the Sale

Questions?

Need help choosing between the tenths and inches grade rod versions of the Topcon RL-H5A kit?

Call or Text Sales & Technical Support: 832-727-9353

Email: Sales@TitanToolsDirect.com

Our knowledgeable team is happy to assist with product selection, compatibility questions, accessories, availability, and technical support before and after your purchase.

Frequently Asked Questions (FAQ)

Q1: What is the difference between 1035258-01 and 1035259-01?

The kits contain the same RL-H5A laser, LS-80X receiver, tripod, holder, and accessories. The difference is the 13 ft aluminum grade rod: 1035258-01 uses a tenths rod, while 1035259-01 uses an inches rod.

Q2: What is the operating range of the RL-H5A?

The supplied RL-H5A specifications list an operating diameter of approximately 2 to 800 meters when used with a compatible receiver.

Q3: How accurate is the Topcon RL-H5A?

The RL-H5A has a specified horizontal accuracy of ±10 arc seconds, approximately 1.5 mm at 30 meters.

Q4: Is the RL-H5A self-leveling?

Yes. The laser uses electronic self-leveling and has a specified self-leveling range of ±5°.

Q5: Can the RL-H5A be used for slope work?

Yes. It supports manual single-axis slope adjustment up to ±5° when the instrument is installed on a level surface.

Q6: What is the advantage of electronic self-leveling?

Electronic self-leveling helps maintain a stable laser plane in environments where vibration may interfere with simpler pendulum-style leveling systems.

Q7: What receiver is included with the kit?

The package includes the Topcon LS-80X receiver.

Q8: What accuracy settings does the LS-80X provide?

The LS-80X provides ±1.0 mm high precision and ±2.0 mm normal precision settings.

Q9: How long does the LS-80X battery last?

The supplied specifications list up to 120 hours of operating time with alkaline batteries.

Q10: Are batteries included?

No. Due to interstate and international shipping constraints, Topcon products do not include alkaline batteries.

Q11: Is the RL-H5A waterproof?

The RL-H5A carries an IP66 dust and water resistance rating, making it suitable for demanding outdoor construction environments.

Q12: Does the kit include a tripod and grade rod?

Yes. Both package options include a tripod and 13 ft aluminum grade rod. The only difference is whether the rod is graduated in tenths or inches.
