Ulrich MiniFile Vertical Blueprint Storage Cabinet with 24 Hanging Folders

Model Number: 6024

Manufacturer: Ulrich Fabrication Inc.

Made in the USA

This is a made to order item - once submitted it can not be cancelled or modified.

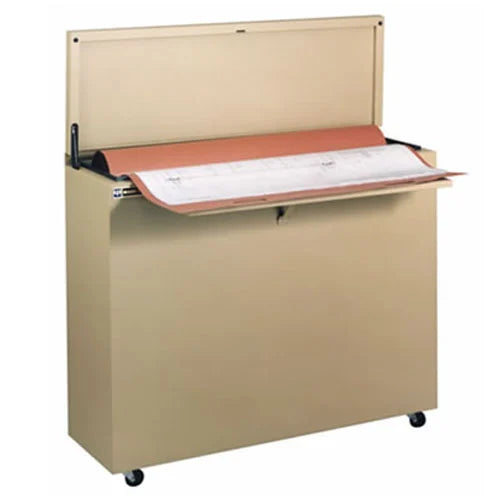

The Ulrich MiniFile Model 6024 is a premium vertical blueprint storage cabinet designed to organize, protect, and provide fast access to engineering drawings, architectural plans, blueprints, maps, and large-format documents up to 24" × 36".

Manufactured by Ulrich Fabrication Inc., the MiniFile is engineered for architects, engineers, surveyors, government agencies, construction companies, utility providers, and educational institutions that need secure, space-efficient storage for valuable documents. It delivers the same fire-resistant and water-resistant protection as the larger Ulrich Planfile while requiring significantly less floor space. Its innovative vertical filing design can reduce floor space requirements by up to 67%, making it the ideal solution for offices where space is limited.

Unlike traditional flat file cabinets that require over 50 inches of clearance to fully open drawers, the MiniFile is accessed from the top, allowing documents to be filed and retrieved while standing comfortably at waist height. Combined with its unique spring compression filing system, double-wall steel construction, and heavy-duty lockable casters, the MiniFile provides exceptional document protection, organization, and mobility in one compact storage solution.

Proudly manufactured in Lakewood, New York, USA, every Ulrich MiniFile is built to commercial-quality standards for years of dependable performance.

~ This product ships via LTL freight. Additional charges may apply for residential deliveries, lift gate service, remote locations, and limited-access locations. ~

Available Colors

Choose from seven durable powder-coated finishes designed to complement any office, print room, engineering department, or records archive.

• Black
• Dark Grey
• Medium Beige
• Medium Grey
• Platinum
• Putty
• Desert Sand

Ideal Applications

The Ulrich MiniFile is ideal for storing:

• Blueprints
• Engineering Drawings
• Architectural Drawings
• Construction Plans
• Survey Plats
• GIS Maps
• Utility Maps
• CAD Plots
• Large Format Documents
• Land Records
• Municipal Records
• Facility Drawings
• Building Plans
• Mechanical Drawings
• Electrical Drawings
• Plumbing Plans

Key Features

Save Up to 67% Floor Space

The innovative vertical filing design reduces floor space requirements by up to 67% compared to traditional flat file cabinets, making the MiniFile an excellent solution where office space is limited.

Top-Loading Design

Unlike flat file cabinets that require approximately 50 inches of aisle clearance to open drawers, the MiniFile is loaded from the top and only requires enough space for the operator to comfortably stand.

Store More Documents in Less Space

The MiniFile stores more large-format documents per square foot than traditional flat filing systems while maintaining fast, convenient access.

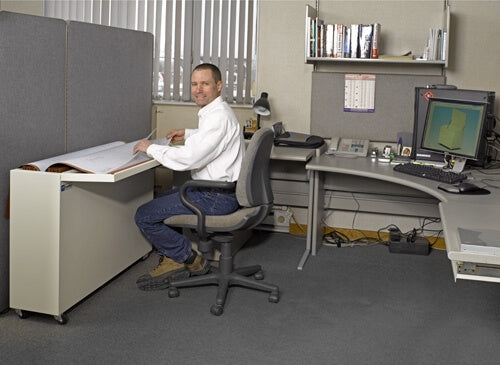

Waist-Height Filing

Documents are loaded and retrieved at a comfortable working height, improving efficiency while reducing bending and operator fatigue.

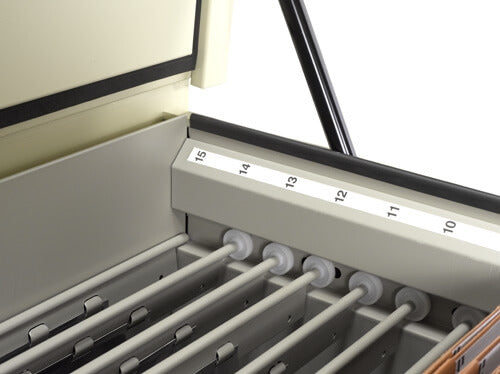

Unique Spring Compression Filing System

Keeps drawings organized, protected, and easy to retrieve while minimizing wrinkles, curling, and document damage.

Heavy-Duty Hanging Folders

Includes 24 heavy-duty hanging folders with Mylar-reinforced hand holes for long-lasting durability.

Custom Folder Options

Optional folder configurations are available to accommodate multiple document sizes, including engineering plots, architectural drawings, maps, and mixed-format documents.

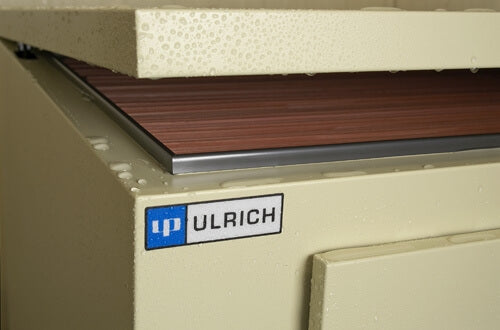

Fire & Water Resistant Protection

Double-wall steel construction with fire-resistant insulation helps protect valuable documents from fire and everyday environmental hazards.

Secure Locking Cabinet

A standard keyed lock helps protect confidential drawings, plans, and records.

Heavy-Duty Mobility

Equipped with lockable, removable casters for easy relocation while maintaining stability during use.

Durable Powder-Coated Finish

Available in seven commercial-grade powder-coated finishes designed for years of dependable use.

Lower Cost Per Sheet Filed

The MiniFile provides one of the lowest storage costs per document while maximizing storage capacity and minimizing floor space requirements.

Technical Specifications

What's Included

• Ulrich MiniFile Model 6024
• 24 Heavy-Duty Hanging Folders
• Lock & Keys
• Heavy-Duty Lockable Casters
• Manufacturer Documentation

Why Choose the Ulrich MiniFile?

The Ulrich MiniFile is an innovative alternative to traditional flat file cabinets, combining exceptional storage capacity with a space-saving vertical design. By reducing floor space requirements by up to 67%, it provides an efficient filing solution for offices where every square foot matters.

Unlike flat file cabinets that require significant aisle clearance to open drawers, the MiniFile is accessed from the top, allowing documents to be filed and retrieved comfortably at waist height. Combined with its fire-resistant construction, water-resistant design, spring compression filing system, and heavy-duty steel construction, the MiniFile delivers one of the most efficient and secure large-format document storage solutions available.

Frequently Asked Questions (FAQ)

Q1: What size documents can the Ulrich MiniFile store?

The MiniFile stores documents up to 24" × 36", including blueprints, engineering drawings, architectural plans, maps, and other large-format documents.

Q2: How many documents can the MiniFile hold?

The cabinet has an active capacity of 1,440 sheets for daily use and an inactive capacity of 2,400 sheets for archived documents.

Q3: Are hanging folders included?

Yes. The MiniFile includes 24 heavy-duty hanging folders with durable Mylar-reinforced hand holes.

Q4: Is the Ulrich MiniFile fire and water resistant?

Yes. The cabinet features double-wall steel construction with fire-resistant insulation and a water-resistant design to help protect valuable documents.

Q5: Is the cabinet lockable?

Yes. A standard keyed lock helps secure confidential drawings, blueprints, and important records.

Q6: Can the cabinet be moved easily?

Yes. The MiniFile is equipped with heavy-duty removable locking casters for convenient mobility.

Q7: Is the Ulrich MiniFile made in the USA?

Yes. Every Ulrich MiniFile is proudly manufactured in Lakewood, New York, USA.

Q8: What colors are available?

The MiniFile is available in Black, Dark Grey, Medium Beige, Medium Grey, Platinum, Putty, and Desert Sand powder-coated finishes.

Q9: How much floor space can the Ulrich MiniFile save?

The MiniFile's innovative vertical filing system can reduce floor space requirements by up to 67% compared to traditional flat file cabinets.

Q10: Why choose a MiniFile instead of a flat file cabinet?

Unlike flat file cabinets that require approximately 50 inches of clearance to open drawers, the MiniFile is accessed from the top and only requires enough room for the operator to stand. This maximizes valuable office space while providing fast and convenient document access.

Q11: Is this product returnable?

No. Because each Ulrich MiniFile is made to order, it cannot be returned once it has shipped.
