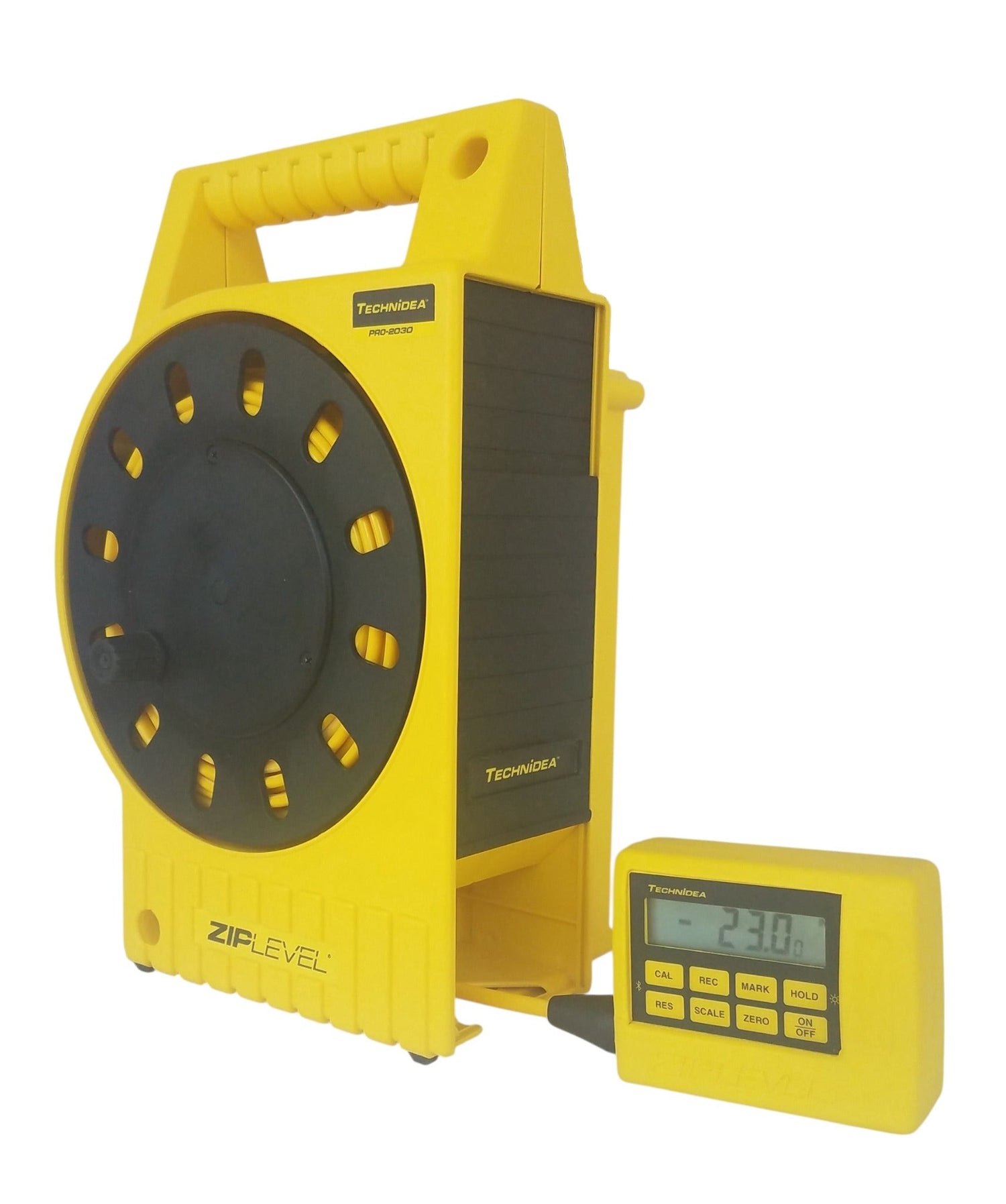

The ZIPLEVEL High Precision Altimeter (Model: Pro-2000B) redefines elevation measurement for professionals. Say goodbye to rods, tripods, and tedious computations. This cutting-edge tool lets you work efficiently and independently, displaying elevations in unmistakably clear digits with high precision. Whether you're measuring a mountain’s height or paper-thin elevations, the Pro-2000B delivers exceptional accuracy and ease of use.
Key Features:
-
Direct Elevation Display: Choose from 0.1”, 1/8”, 0.01’, or 2mm, with high precision up to 0.005”.
-
Unmatched Range: Measure up to 40’ vertically, 200’ horizontally, or unlimited with the CARRY function.
-
Effortless Setup: Be ready to measure in less than 30 seconds.
-
Built to Last: Rugged, job-site-ready construction that never requires factory calibration.
-
Temperature Monitoring: Displays ambient temperature, ideal for concrete work and adhesives.
-
Data Storage & Export: Stores 137 readings and connects to a PC for data visualization and logging.
-
High Precision Mode: Achieve paper-thin measurements, ensuring exact results.
-
Flexible Functionality: Auto-off, hold, zero, mark, record, and more for versatile application.
Specifications:
- Vertical Range: 40’ (4’ in HP)
- Horizontal Range: 200’ (150’ for PRO-2000B)
- Internal Precision: 0.05” (0.005” in HP)
- Temperature Range: -22°F to +158°F (-30°C to +70°C)
- Battery Life: 9V battery lasts up to 1 year with daily use.
- Drop Resistance: Module withstands 5’ drops; base unit withstands 3’.
- Weight: 12 lbs (5.50 kg), 8 lbs (3.65kg) for PRO-2000B.
- Included Accessories: 75-foot cord, unipod, stakes (2), and protective rubber boot.
Frequently Asked Questions (FAQ)
Q1: How does the Pro-2000B differ from a traditional rotary laser?
The Pro-2000B eliminates the need for tripods, line-of-sight, and factory calibration. It displays elevations directly in clear digits, works around obstructions, and requires no additional computations.
Q2: What happens if the unit is dropped?
The Pro-2000B is designed for durability. The Measurement Module can withstand 5-foot drops onto concrete, and the Base Unit can handle 3-foot drops.
Q3: How does the data export feature work?
Use the PC serial interface cable (optional) to transfer stored data to a computer for profiling, 3D modeling, or topographic mapping.
Q4: Can the Pro-2000B measure changes in temperature?
Yes, it includes a temperature display feature, ideal for monitoring conditions during concrete work or adhesive applications.
Q5: How quickly can the Pro-2000B be set up and ready to use?
It typically takes less than 30 seconds to unpack, zero the unit, and begin reading elevations.
Q6: Can this unit work on uneven terrains or irregular surfaces?
Absolutely. The Pro-2000B is designed for rugged environments and can measure accurately over uneven terrains without recalibration.
Q7: What type of maintenance does the Pro-2000B require?
The Pro-2000B is maintenance-free and never needs factory calibration. Regularly check the battery and clean the housing to ensure optimal performance.
